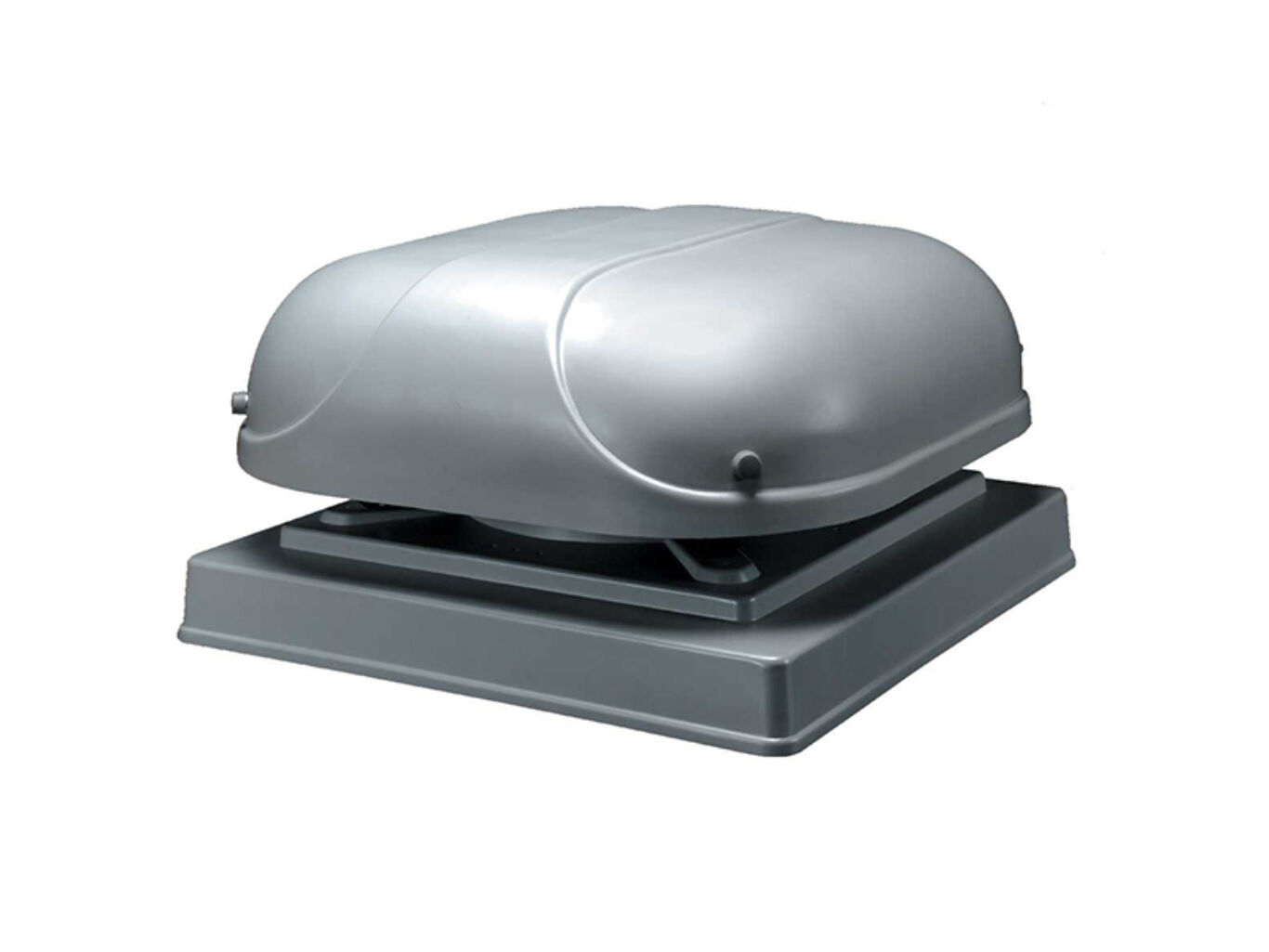

Vent Axia ESR56014 1ph Roof Mounted Axial Fan + Cowl
Vent-Axia
Prices & Options
Features & Benefits
Cowl & base moulded from recyclable polymeric material
All sizes resistant to UV light
Sizes 315 to 1000 dia are protected to IP54
Optional backdraught shutters and bird guard (250 – 630mm)
All models speed controllable
Motor Insulation Class F, ‑40°C to +70°C operating temperature
Reversible for supply or extract units – 30% drop in duty in reverse
Thermal overload for motor protection
Performance tested to BS848 part 1 1980
Sizes 250 – 630 1Ph in stock
Fan & cowl are supplied separately to assist with transportation.
| Code & Description | Price | |
|---|---|---|
| esr56014 : Vent Axia ESR56014 1ph Roof Mounted Axial Fan + Cowl | £972.54 + VAT £1,167.05 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
