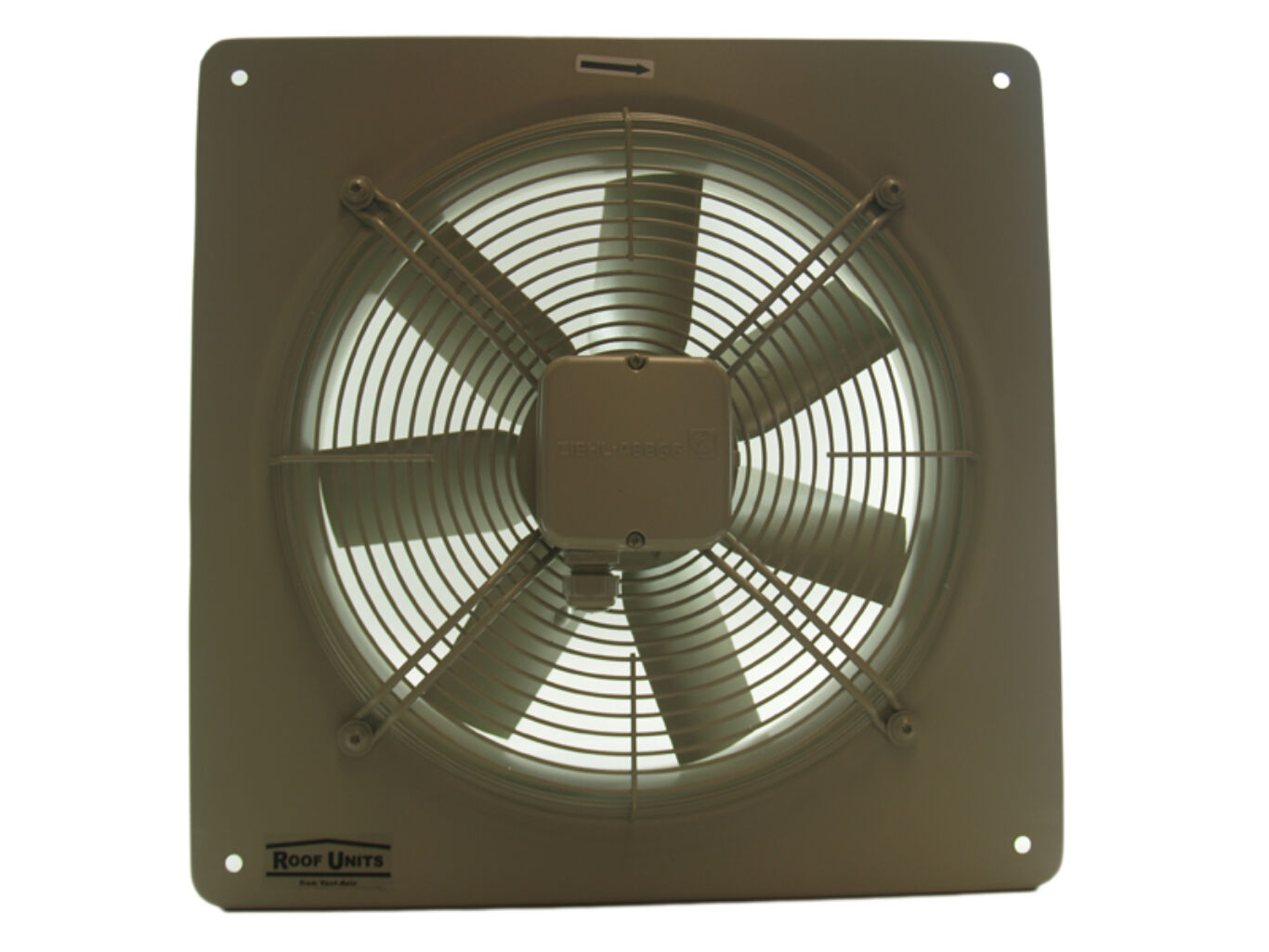

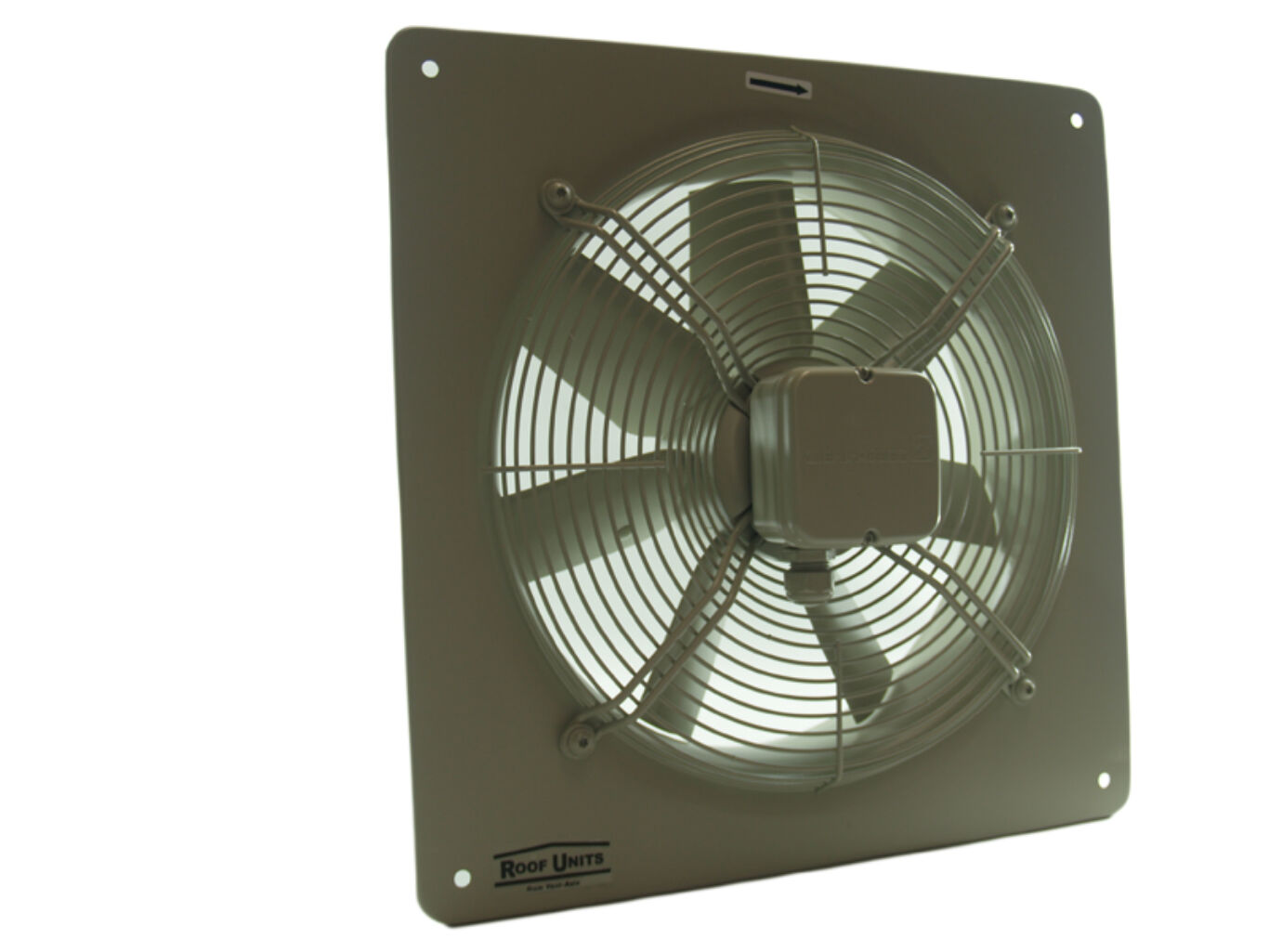

Ziehl Abegg FC630-4EQ Plate Mounted Extract Fan Supplied as ESP63014
Systemair, Vent-Axia, Ziehl-Abegg
Prices & Options
Manufactured by Ziehl Abegg and distributed by Vent Axia and Systemair, this is probably one of the most popular plate mounted axials on the market today. Ziehl Abegg are one of, if not the biggest external rotor motor manufacturers in the world, they have over 100 years of engineering experience behind them, which gives you the confidence. If a low cost painted finish fan is your choice this is among the best available.
The FC630-4EQ will be supplied as an ESP63014
- Supplied fully assembled
- Fully speed controllable
- Can be used in any non hazardous environment
- Suitable to run in temperatures from ‑40°C to up to 70°C in some instances
- Low to medium air volumes
- Low to medium static pressures
- Available sizes 315mm – 630mm from stock
- 710mm – 1000mm check for availability
- Tough epoxy paint finish
- Die cast aluminium impellers (the bit that goes around)
- Motor class F insulation with protection to IP54
- All fans reversible for supply or extract
The curve below shows the fans performance, which is 5.09 m³/s at Free Air and peaks at 2.75 m³/s at 250Pa, the fan can perform anywhere between these points and the red dot is shown as an example
- 76dB(A) at 1.5 metres from the listener
- 70dB(A) at 3 metres from the listener
| Code & Description | Price | |
|---|---|---|
| FC630-4EQ : Replacement Ziehl Abegg FC630-4EQ Plate Mounted Extract Fan Supplied as ESP63014 | £620.37 + VAT £744.44 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
