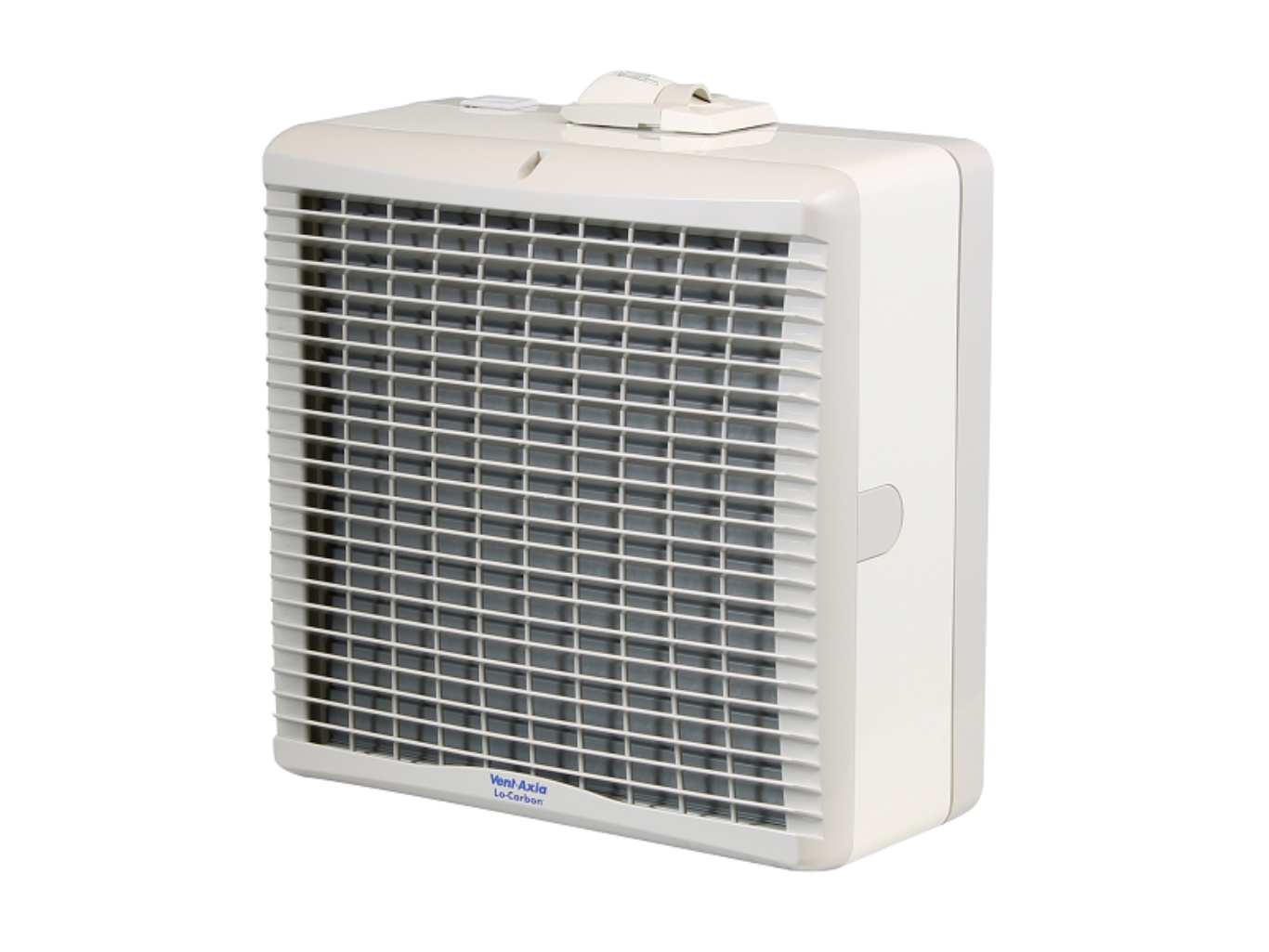

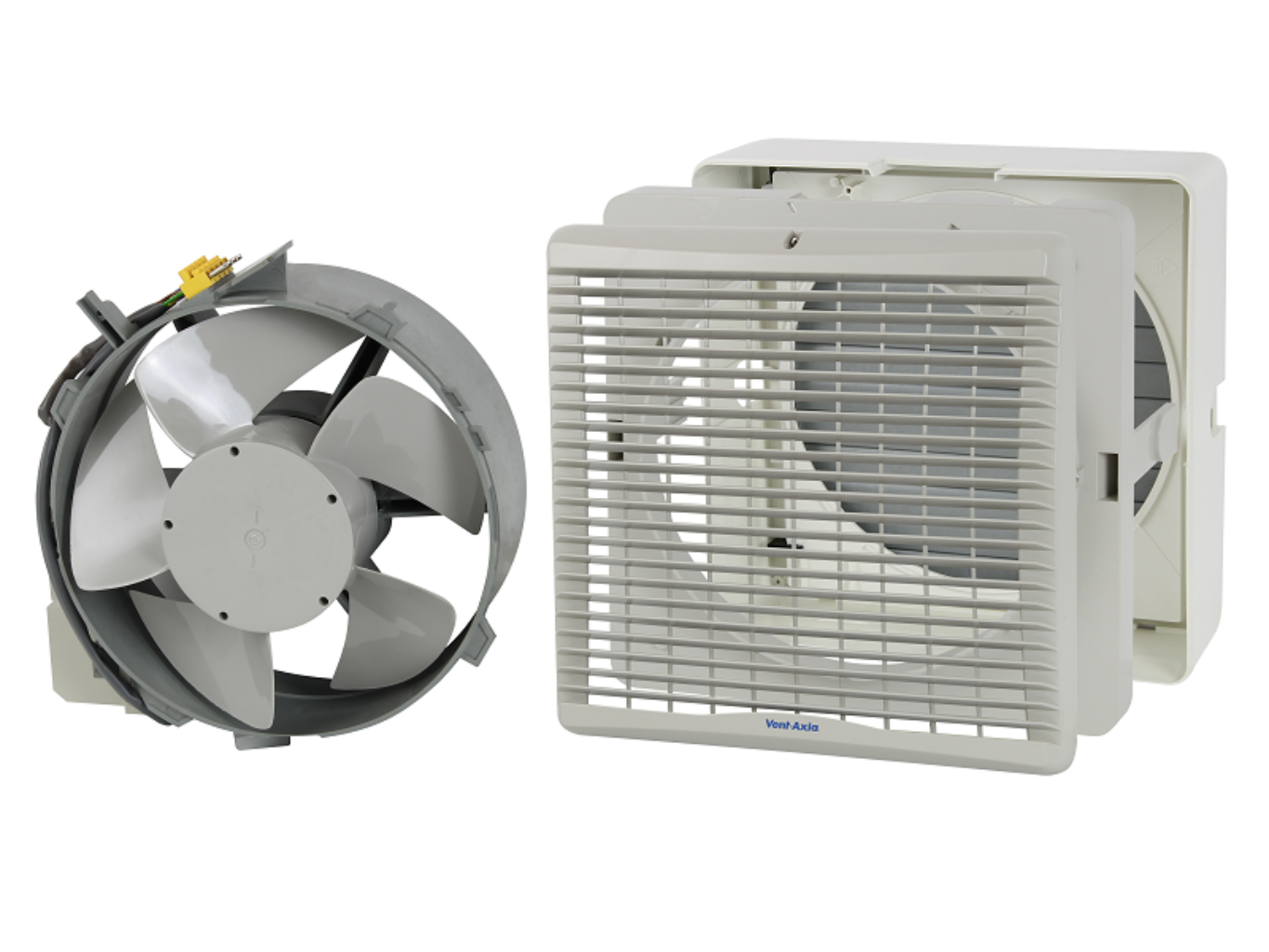

Vent Axia TX6WW T‑Series Window Mounted Extract/intake Fan W161110
Vent-Axia
Prices & Options
The T‑Series fan by the most famous brand name in residential and commercial Ventilation in the UK. No Matter which range of fans you buy, when they have the Vent Axia badge, you know you have made the right choice.
This product is the Market Leader for commercial applications and quieter than any other product on the market. Available in Wall, Window, Panel/Ceiling and Roof Mounted Options.
The high-performance Extract/Intake fans feature a unique speed control pack which enable High, Medium and Low speeds to be preset to suit your application, the T‑Series controller can be used offering 3 speed selection and choice of extract/intake operation with automatic sensor connections.
The T‑Series window model is designed to fit into single or double glazing up to 32mm thick. Greater thicknesses can be accommodated using Extended Fixing Rods.
Can be mounted in a fixing plate or wall, in ducts or above ceilings.
Available in 4 different sizes offering a wide range of performances. Sizes 6, 7, 9 and 12.
Top Socket
A Connector Top Socket is standard on all T‑Series fans, allowing fast and trouble-free mains connection.
Shutter
T‑Series fans are supplied complete with an integral automatic louvre shutter, operates on both intake and extract and at any angle of mounting.
When the fan is fitted with a T‑Series controller the shutter can be set open when the fan is switched off to allow natural ventilation.
Electrical
Quiet running, suitable for operation in ambient temperatures from ‑40oC to +50oC.
Fitted with Standard Thermal Overload Protection to help prevent the motor from burning out if it gets to hot.
- 360 m3/hr at free air
- 100 L/S at free air
- 0.10 m3/s at free air
- 30 watts
- 240 volts 1 Phase
- Required Window Hole Size 184mm diameter
- T.S.C — 3 Speed Controller with Reversing Switch
- Ecotronic Speed Controller with Reversing Switch
- Size 6 Extended Fitting Rod Set
- 47 dB(A) at 1.5 metres from the Listener (Medium Speed)
- 41 dB(A) at 3 metres from the Listener (Medium Speed)
| Code & Description | Price | |
|---|---|---|
| W161110 : Vent Axia TX6WW T-Series Window Mounted Extract/intake Fan W161110 | £336.26 + VAT £403.52 | |
We accept :
Downloads
- Wiring Diagram | 40.36 KB
- Catalogue Page | 258.7 KB
- Installation and User Instructions | 1224.82 KB
