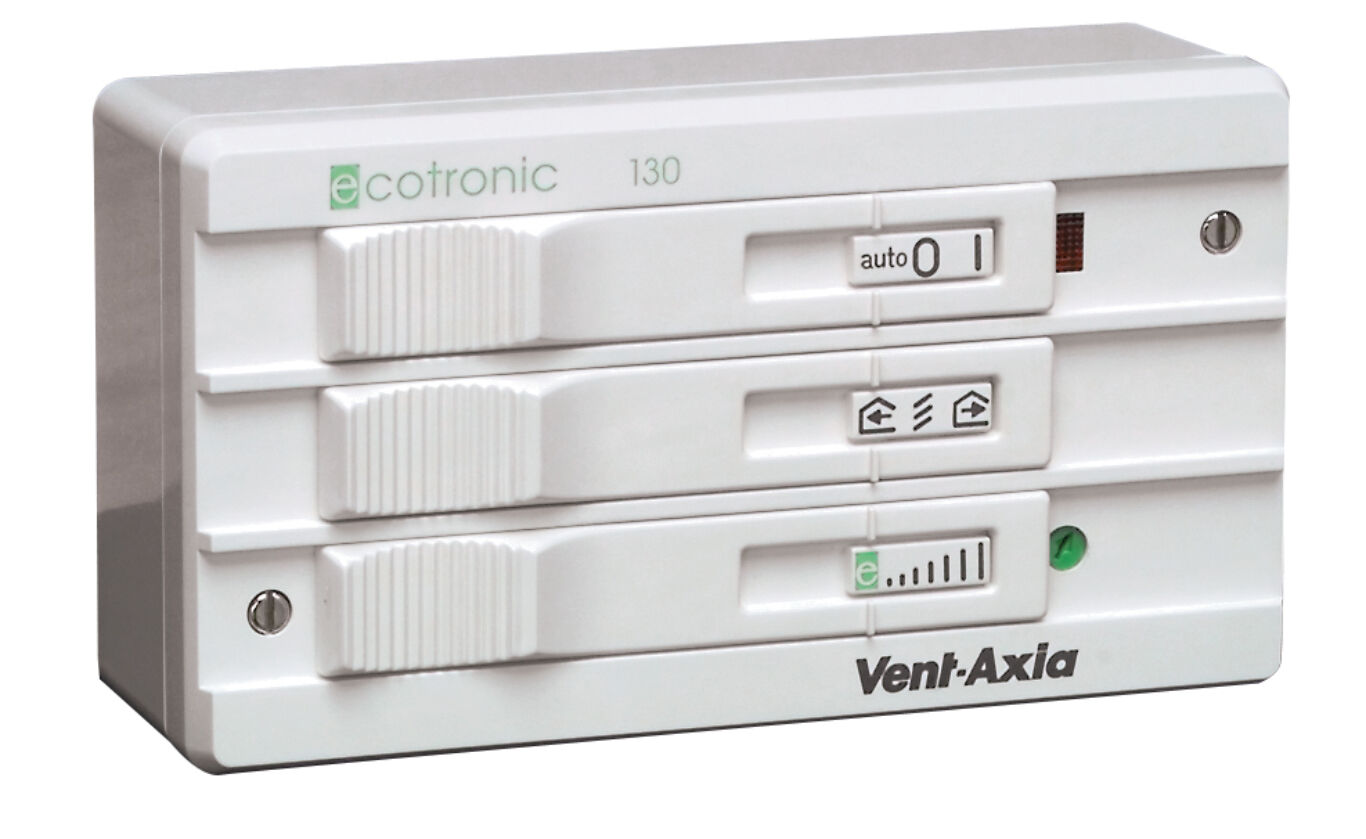

W362320 Vent Axia Ecotronic Controller Surface Mounting

A Single Unit Controller for use with all Traditional T‑Series Ventilating units. With Knockouts for recessed wiring. Where a controller is used with T‑Series, 5‑Core flexible cable is required.

Three speeds. Choice of extract/​intake Shutter open, fan Off setting
Sensor mode. Enables external electro mechanical switches, eg:
Ecotronic, HumidiSwitch, ThermoSwitch and TimeSwitch to control the fan

For use with Traditional T‑Series Ventilation Range

TX6WW – TX6WL – TX6RL – TX6PL – TX6DR – TX6IL
TX7WW – TX7WL – TX7RL – TX7PL – TX7DR
TX9WW – TX9WL – TX9RL – TX9PL – TX9DR – TX9IL
TX12WW – TX12WL – TX12RL – TX12PL – TX12DR – TX12IL

For groups of units of any one size up to a total of 400 watts. Do not mix T‑Series with Standard Range ventilating units on one controller.
