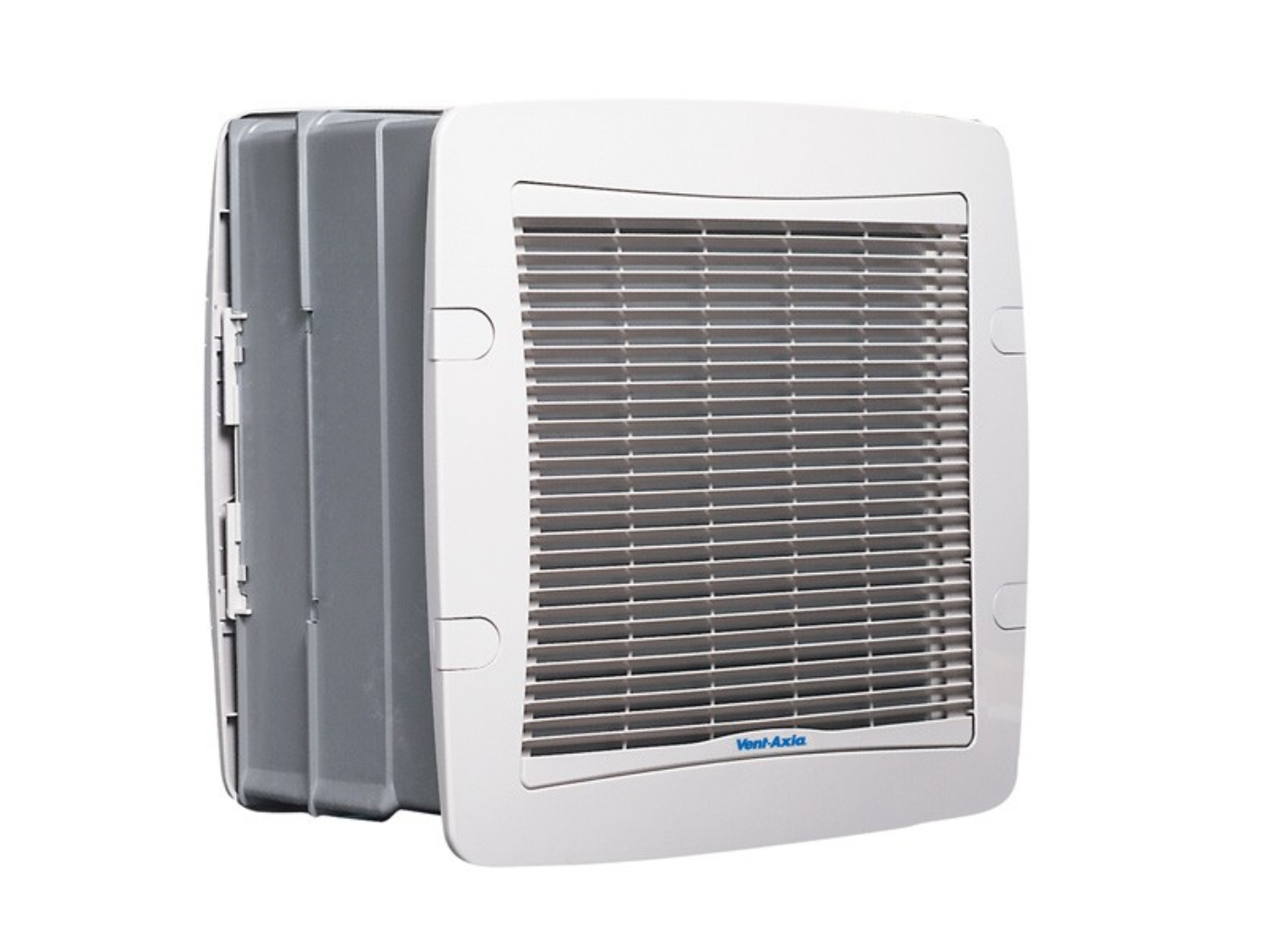

The T‑Series fan by the most famous brand name in residential and commercial Ventilation in the UK. No Matter which range of fans you buy, when they have the Vent Axia badge, you know you have made the right choice.

This product is the Market Leader for commercial applications and quieter than any other product on the market. Available in Wall, Window, Panel/​Ceiling and Roof Mounted Options.

The high-performance Extract/​Intake fans feature a unique speed control pack which enable High, Medium and Low speeds to be preset to suit your application, the T‑Series controller can be used offering 3 speed selection and choice of extract/​intake operation with automatic sensor connections.

The T‑Series wall model is designed to fit into most double brick walls using telescopic liners, supplied. Additional liners are available to accommodate exceptionally thick brick walls.

Available in 4 different sizes offering a wide range of performances. Sizes 6, 7, 9 and 12.

Top Socket

A Connector Top Socket is standard on all T‑Series fans, allowing fast and trouble-free mains connection.

Shutter

T‑Series fans are supplied complete with an integral automatic louvre shutter, operates on both intake and extract and at any angle of mounting.

When the fan is fitted with a T‑Series controller the shutter can be set open when the fan is switched off to allow natural ventilation.

Electrical

Quiet running, suitable for operation in ambient temperatures from ‑40^oC to +50^oC.

Fitted with Standard Thermal Overload Protection to help prevent the motor from burning out if it gets to hot.

• 1745 m³/​hr at free air
• 485 L/S at free air
• 0.485 m³/​s at free air

• 105 watts
• 240 volts 1 Phase
• Required Wall Hole Size 442mm Wide x 450mm High

• T.S.C — 3 Speed Controller with Reversing Switch
• Ecotronic Speed Controller with Reversing Switch

• Size 12 Wall Liner Extension


• 55 dB(A) at 1.5 metres from the Listener (Medium Speed)
• 49 dB(A) at 3 metres from the Listener (Medium Speed)
