CDA 355 x 1D straight through Silencer
Elta, Flakt Woods, Helios, Soler and Palau, Systemair, Vent-Axia, Ziehl-Abegg
Prices & Options

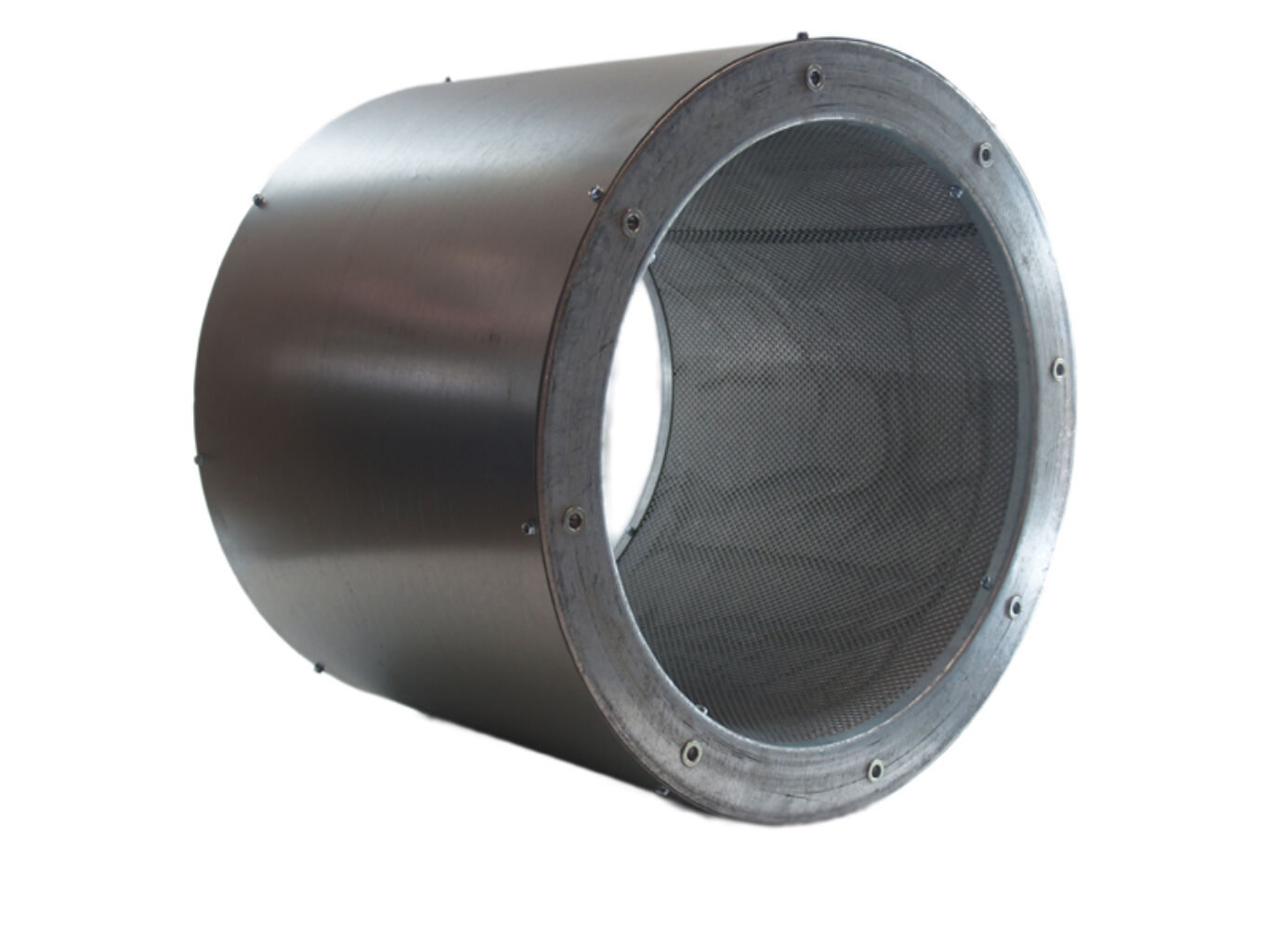

355mm dia x 355mm long straight through silencer (generally reduces a fan noise level by 7 – 10dB (A)* Can be supplied to either bolt directly to any manufacturer of cased axial or with spigots to mount inline with ducting.
The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car with no silencer fitted, this gives you an idea of the impact a silencer can have on a system.
Please Note — for a straight through silencer to work to have the maximum impact on a system, a silencer should be fixed either side of the fan, this will give 3 benefits to the overall noise level of the system.
1. System side (usually the noise level inside a building) noise level is reduced
2. Atmospheric side (usually the noise level outside a building) noise level is reduced
3. The breakout from the fan is reduced, this could be a big factor depending where the fan is fitted, such as a false ceiling in a class room or office area
*Noise is a complicated medium to get right, if in doubt or you have specific target levels to achieve, please contact us via any means you feel comfortable with and we’ll find a solution to your problem
| Code & Description | Price | |
|---|---|---|
| cda355 x 1D straight through Silencer : CDA 355 x 1D straight through Silencer | £99.00 + VAT £118.80 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
