DPSA-20 : Air Differential Pressure Switch — DPSA-20
Ancillary / (DPSA-20)
| Code & Description | Price | |
|---|---|---|
|
DPSA-20 : Air Differential Pressure Switch DPSA-20
Note: £18.89 + VAT for new customers using 'WELCNFAN1' discount code!
|
£22.22 + VAT £26.66 | |
We accept :
Downloads
- Data Sheet | 403.28 KB
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

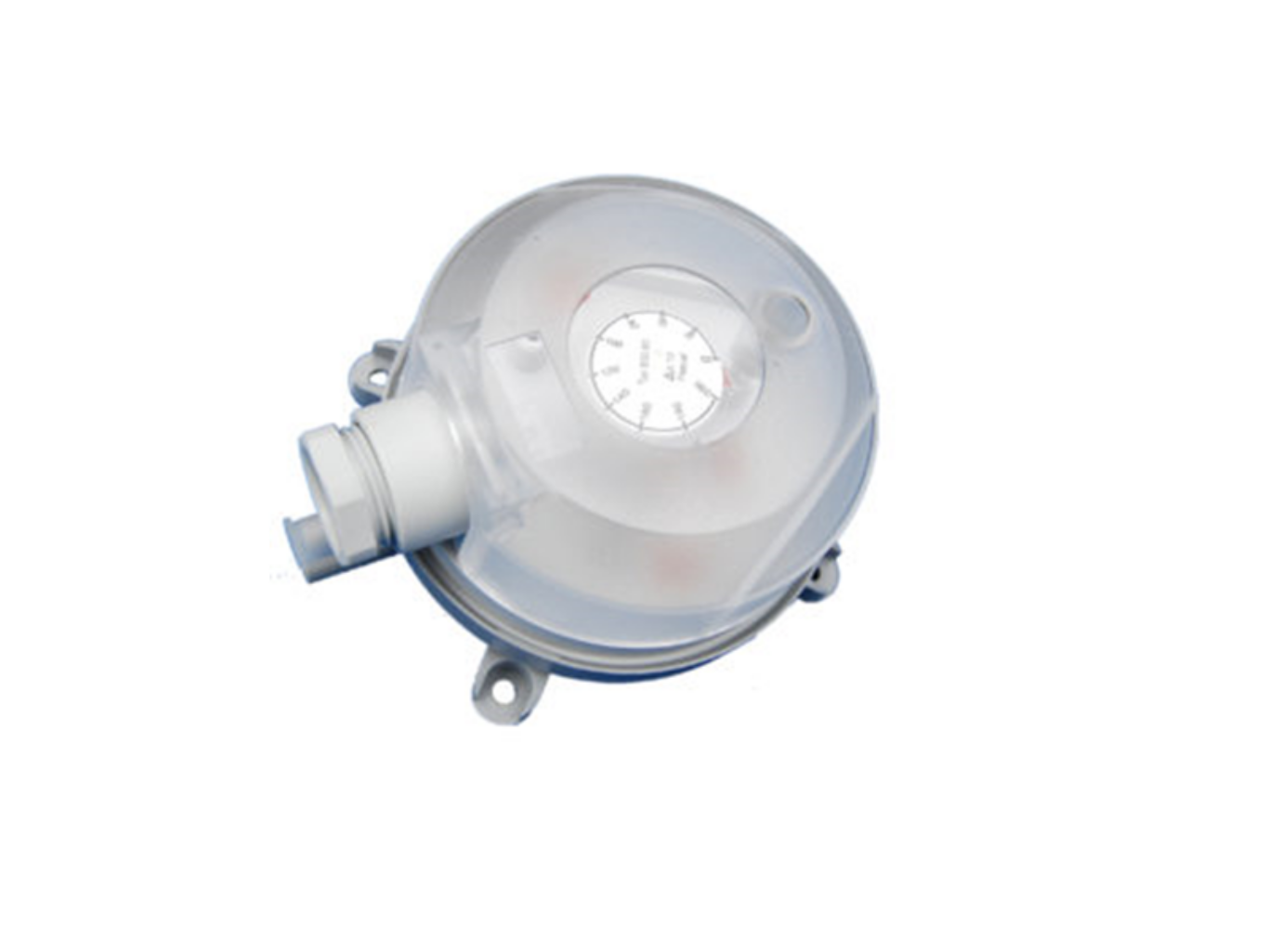

Air Differential Pressure Switch. Suitable for applications where airflow proving or filter monitoring is required. The switching set point is adjusted by a knob mounted under the main cover.
Pressure Switch comes complete with a duct fixing kit, consisting of PVC Hose and 2 plastic duct adaptors.
It has a set of normally open and normally closed contacts allowing monitoring of both rises and falls in pressure.
The switch is commonly used with a Kitchen Gas Interlock panel where air proving is necessary to allow Gas flow, and to monitor filters to notify you when they are dirty and need replacing.
Range 20 – 200Pa (0.2 – 2mbar)
Maximum Working Pressure 5000Pa (50mbar)
IP54 Rating
