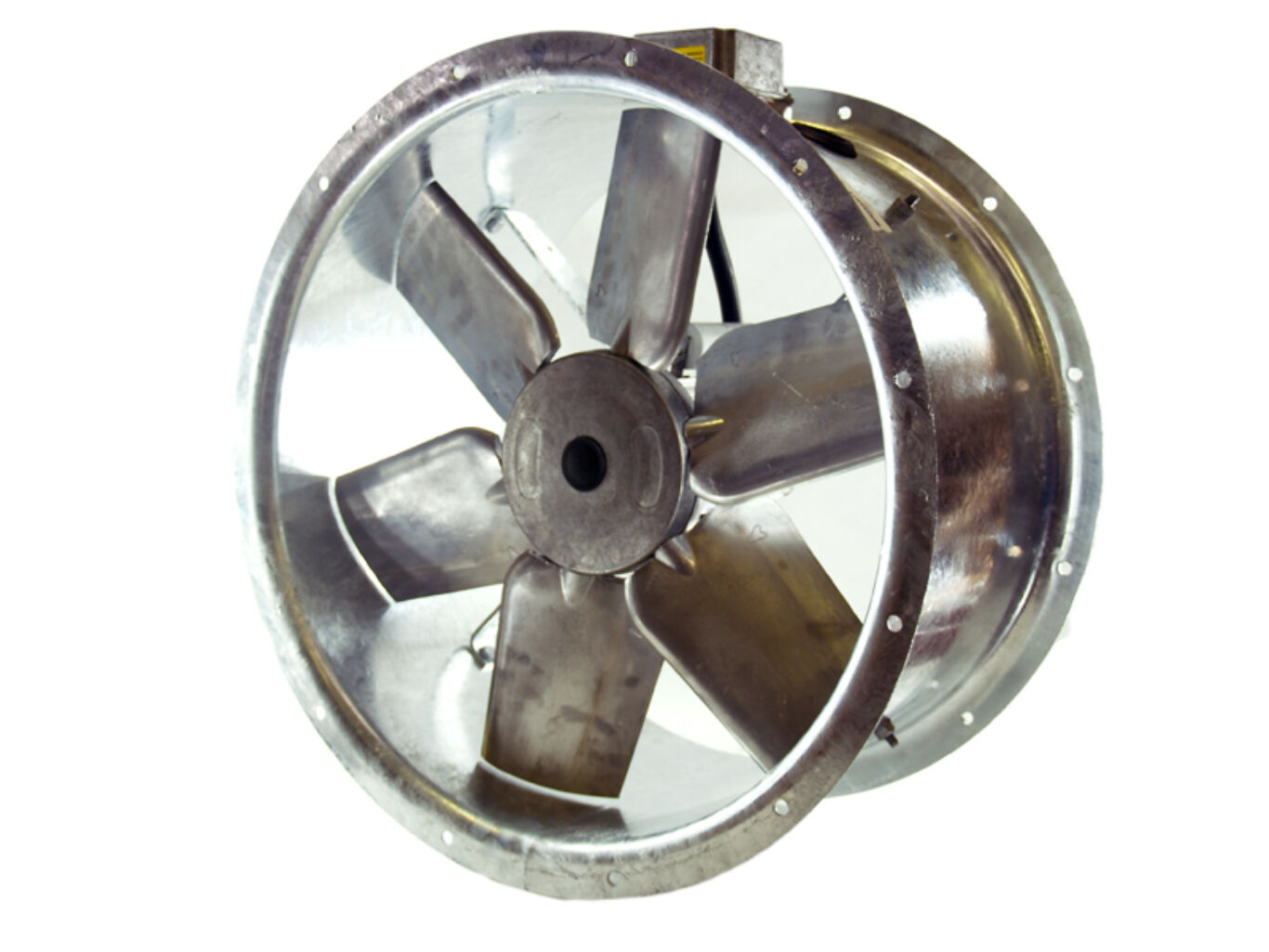

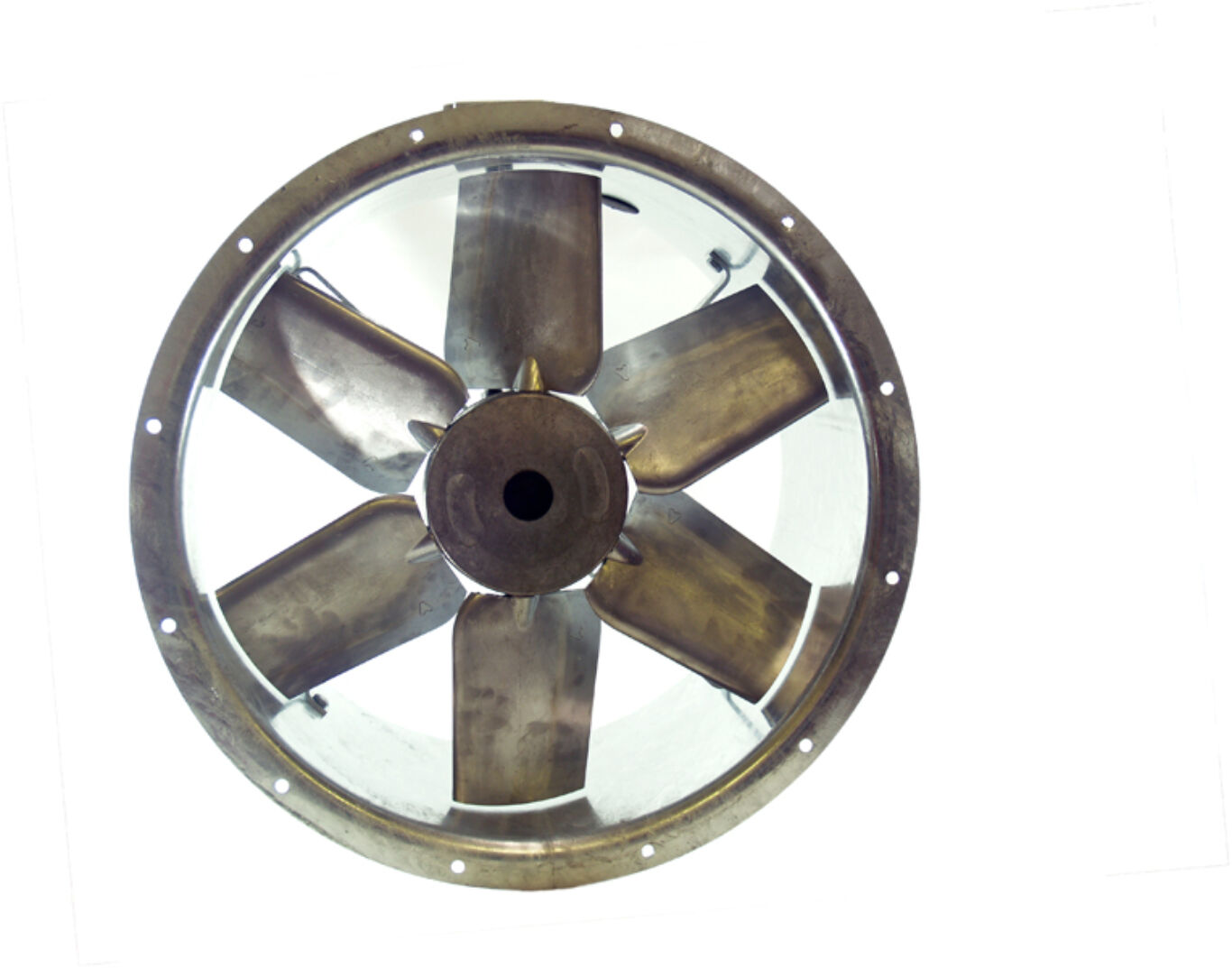

71JM/20/4/6/36/3Ph Long cased axial flow extract fan by Flakt Woods
Flakt Woods
Prices & Options
The Flakt Woods JM axial flow extract fan range of cost effective highest quality long cased axials.
We think this product is the World’s best axial fan, and our recommended number one choice for every, industrial and commercial application
The build quality and reliability are the highest we have ever experienced with fans still running since the range was introduced in the early 1990’s
Every time you fit this fan you know you’ve made the right choice, and it will enhance your reputation for only using the best quality products
Supplied fully assembled
Fully speed controllable
Can be used in any none hazardous environment (also available for hazardous application on request)
Suitable in temperatures from ‑40°C to 50°C (70°C in some instances, please ask for details)
Low to high air volumes
Low to high static pressures
Available sizes 315mm – 710mm from stock
800mm – 1000mm made to order, ring for availability
1000mm + ring for availability
The Casings are spun sheet steel, then hot dipped galvanised to give a finish highly resistant to corrosion and can be mounted external and internal
The impeller (the bit that goes around and moves the air) is manufactured die cast aluminium
The motors are totally enclosed with class F insulation with protection to IP55.
- 74dB(A) at 1.5 metres from the listener
- 68dB(A) at 3 metres from the listener
s
| Code & Description | Price | |
|---|---|---|
| DX741404 : 71JM/20/4/6/36/3Ph Long cased axial flow extract fan by Flakt Woods | £1,368.89 + VAT £1,642.67 | |
| EJ741474 : 71JM/20/4/6/36/3Ph Long cased axial flow extract fan by Woods | £1,368.89 + VAT £1,642.67 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
