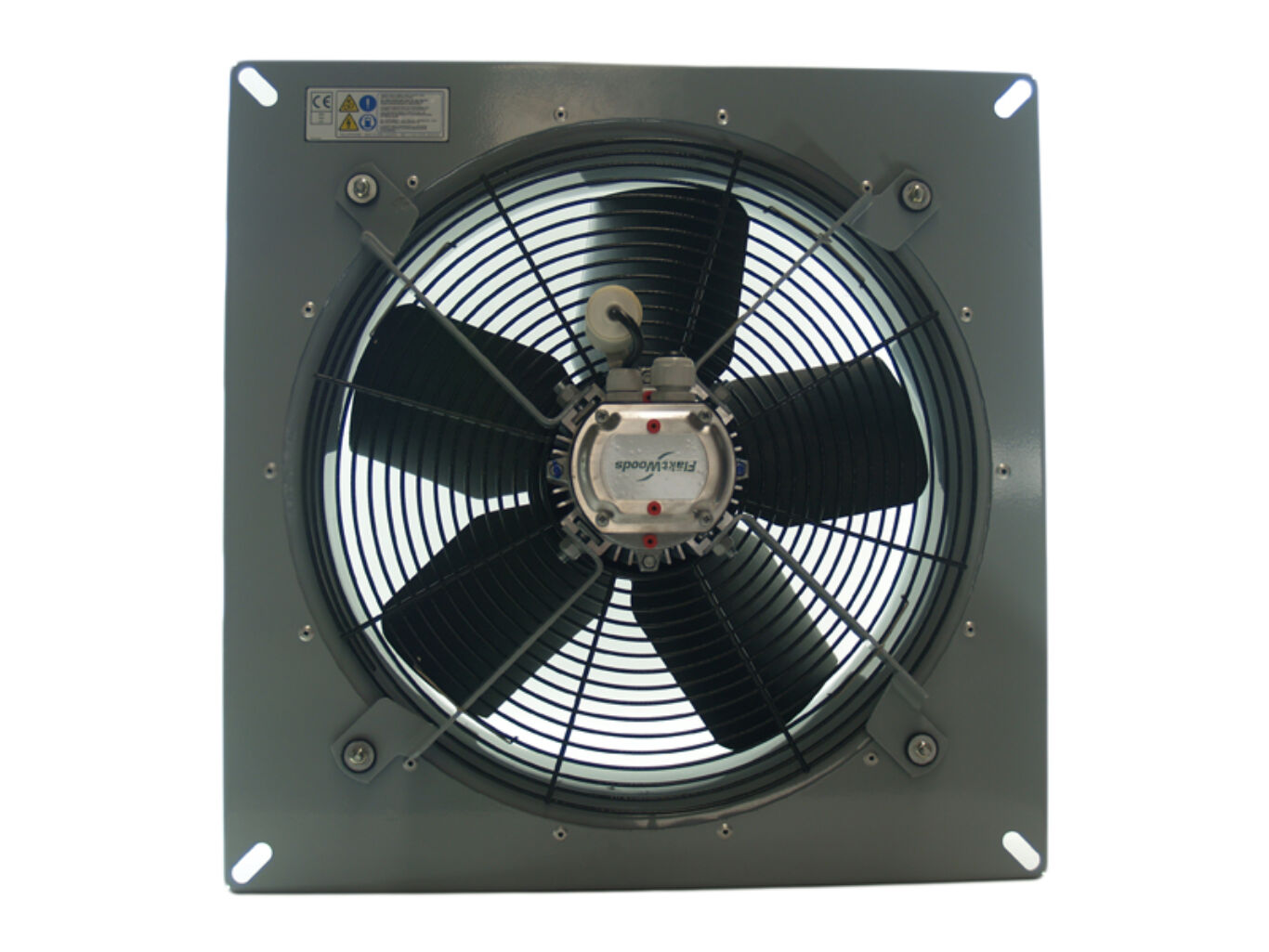

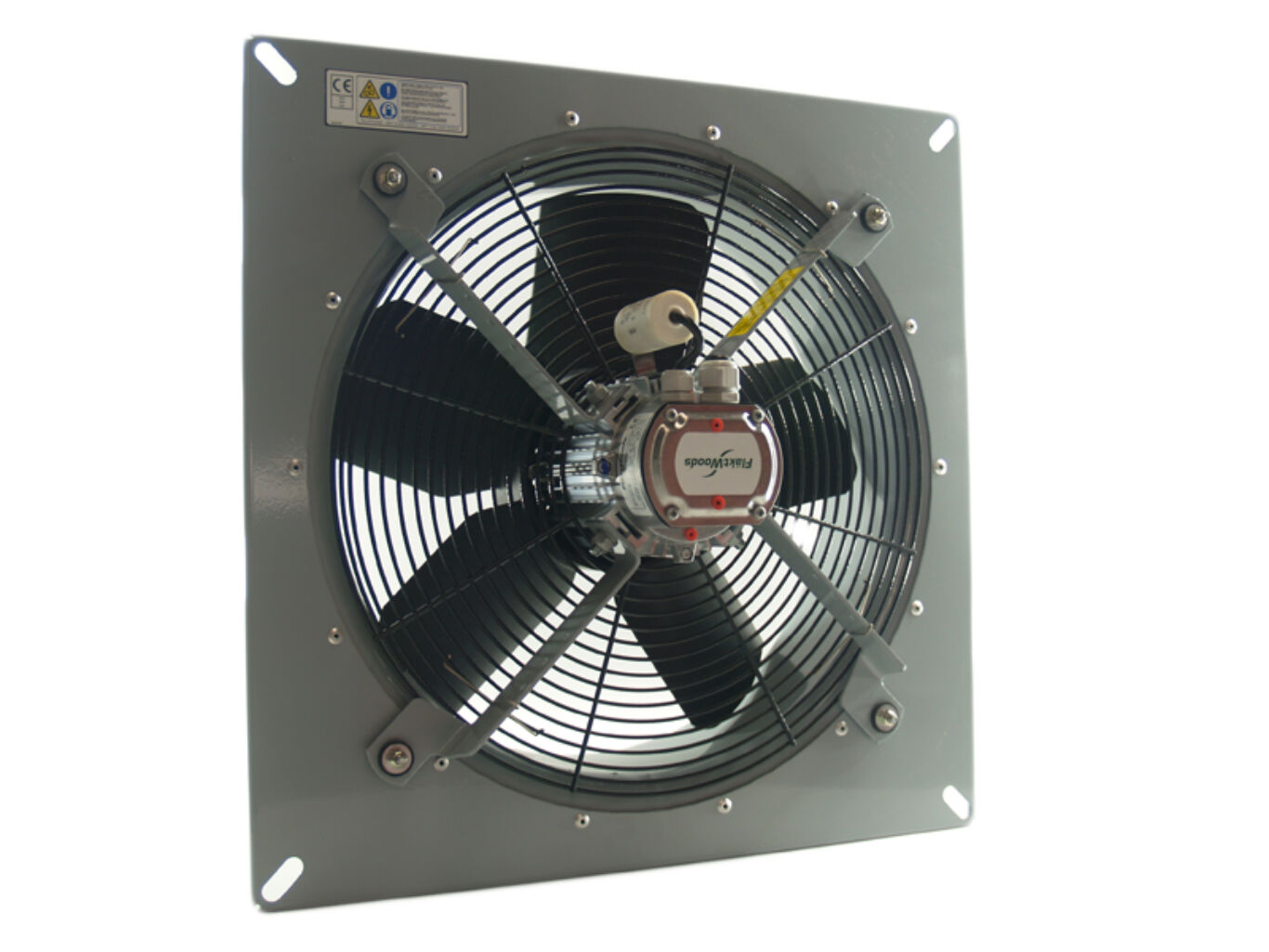

2102/400/4/1Ph Plate Mounted Extract Fan by Flakt Woods
Flakt Woods
Prices & Options
THE FAN IS OBSOLETE, WE CAN ONLY SUPPLY SPARES — WE CANNOT SUPPLY THE FAN IF PURCHASED
The Flakt Woods 2102 range of low cost high quality plate mounted extract fans.
Our recommended number one plate mounted fan choice
Flakt Woods reputation for only manufacturing the highest quality products is evident with this low cost range of Plate mounted Fans. Buying this fan gives you the confidence and satisfaction that comes with over 100 years of fan engineering experience.
- Supplied fully assembled
- Fully speed controllable
- Can be used in any non hazardous environment
- Suitable in temperatures from ‑40°C to 50°C
- Low to medium air volumes
- Low to medium static pressures
- Available sizes 315mm – 500mm from stock
- 560mm – 710mm made to order in 3 weeks
- The grey coloured plate is manufactured from mild steel with a powder coat painted finish.
- The impeller (the bit that goes around and moves the air) is manufactured from glass filled polypropylene and will stay intact up to temperatures of over 100°C
- The motors are totally enclosed with class F insulation with protection to IP55. Single phase motors have overheat protection
The curve below shows the fans performance, which is 1.11 m³/s at Free Air and peaks at 0.55 m³/s at 112Pa, the fan can perform anywhere between these points and the red dot is shown as an example.
- Me1.3 electronic speed controller
- MT1.5 transformer speed controller
- 1Ph starter c/w overload
- 400mm Louvre shutter
- 450mm Louvre shutter, going up s shutter size makes it easier to fix to a wall
- 62dB(A) at 1.5 metres from the listener
- 56dB(A) at 3 metres from the listener
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
