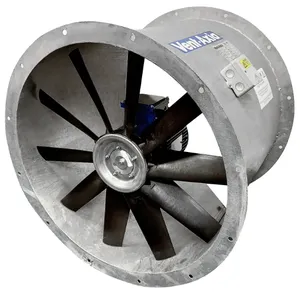

Vent Axia Long Cased Axial Fans (LCA) 560mm 3 Ph. 4 Pole 34deg. LCA563434

The LCA563434 Long Cased Axial Fan is designed to deliver efficient and consistent airflow for commercial ventilation systems. Featuring a three-phase, 4‑pole motor with a 34° pitch, this 560mm fan ensures reliable performance and strong air movement. Its motor is protected to IP55 standards and fitted with Class F insulation, suitable for operation in environments with ambient temperatures up to 54˚C.

This model comes with a factory-set polypropylene impeller, adjustable to meet system-specific airflow requirements. Most LCA series fans support speed control via transformer or inverter, offering operational flexibility. An IP55-rated terminal box provides secure and safe electrical connections, while the fan can operate in environments with relative humidity levels up to 95% R.H.

Manufactured to BS EN ISO 9001:2015 and performance tested to BS 848 Parts 1 & 2 and ISO 5801, the LCA563434 guarantees verified reliability and efficiency. Supplied with a 2‑year manufacturer’s warranty, it offers long-term assurance for commercial ventilation projects.
