10314301 : Vent Axia Five Step Auto Transformer 3 Ph. 1Amp 10314301
Vent-Axia / (10314301)
Specifications
| Code & Description | Price | |
|---|---|---|
|
10314301 : Vent Axia Five Step Auto Transformer 3 Ph. 1Amp 10314301
Note: £533.79 + VAT for new customers using 'WELCNFAN1' discount code!
|
£627.99 + VAT £753.59 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

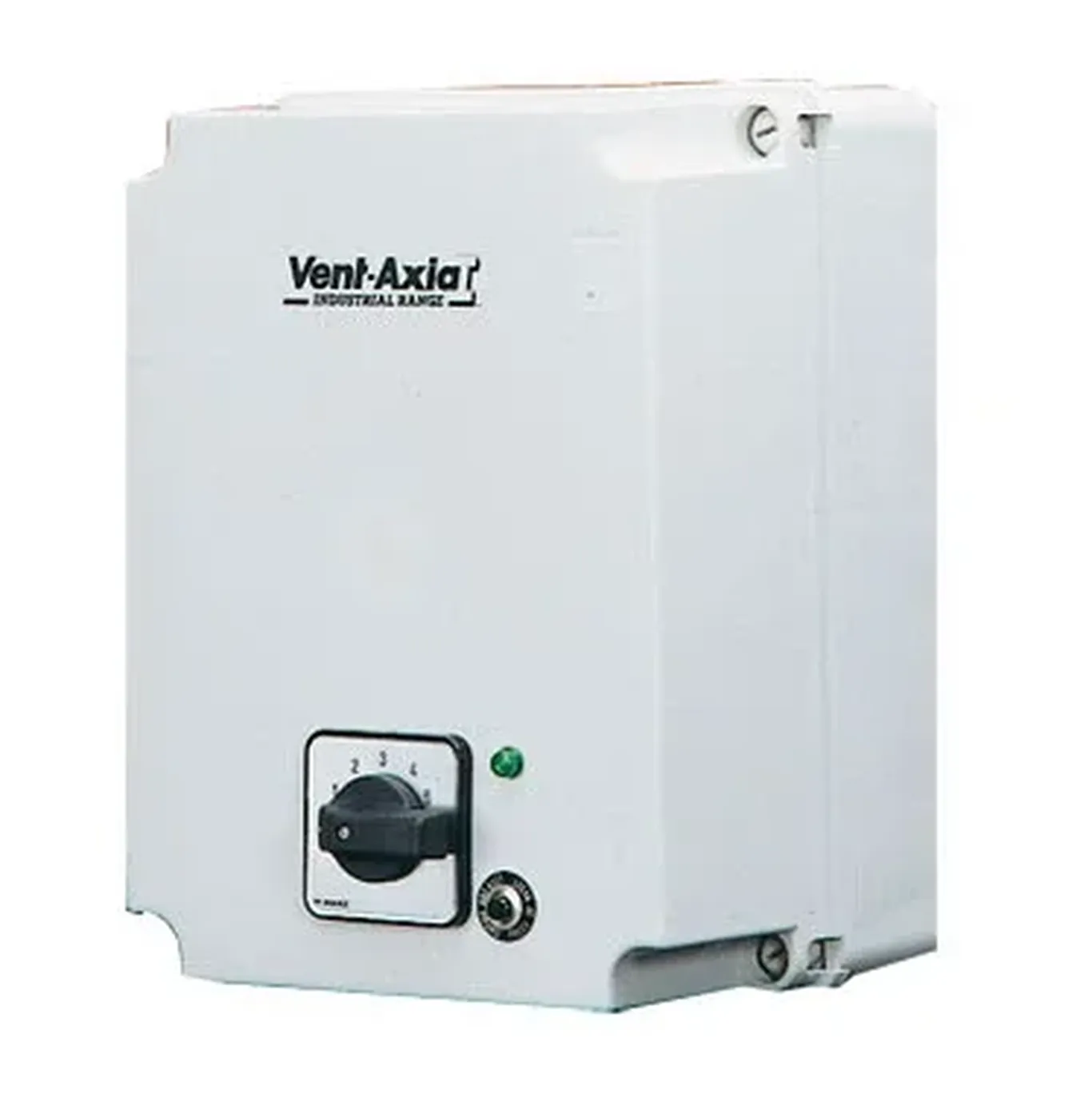

The Vent-Axia 10314301A is a three-phase, 5‑step auto transformer fan speed controller designed for reliable, noise-free speed regulation. Rated at 1 Amp, this unit is suitable for commercial and industrial environments where precise fan control and minimal motor hum are essential.
Equipped with a rotary switch offering On/Off and five fixed speed settings, the controller delivers stepped output voltages of 0, 65, 110, 175, 285, and 415 volts at 415V/3PH/50Hz. A built-in neon indicator ensures visual confirmation of operation, while the IP54-rated enclosure provides protection in challenging environments.
This unit supports multi-fan control when the total fan load does not exceed 90% of the transformer’s rated capacity, and the thermal contacts (TKs) are wired in series. It also features remote On/Off terminals, making it ideal for integrated ventilation systems.
An excellent choice for speed-controllable fans in commercial ventilation setups demanding durability, quiet operation, and flexible control.
