444164 : Vent Axia eDemand Voltage Controller 1 Ph. 6Amp 444164
Vent-Axia / (444164)
Specifications
| Code & Description | Price | |
|---|---|---|
|
444164 : Vent Axia eDemand Voltage Controller 1 Ph. 6Amp 444164
Note: £474.67 + VAT for new customers using 'WELCNFAN1' discount code!
|
£558.44 + VAT £670.13 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

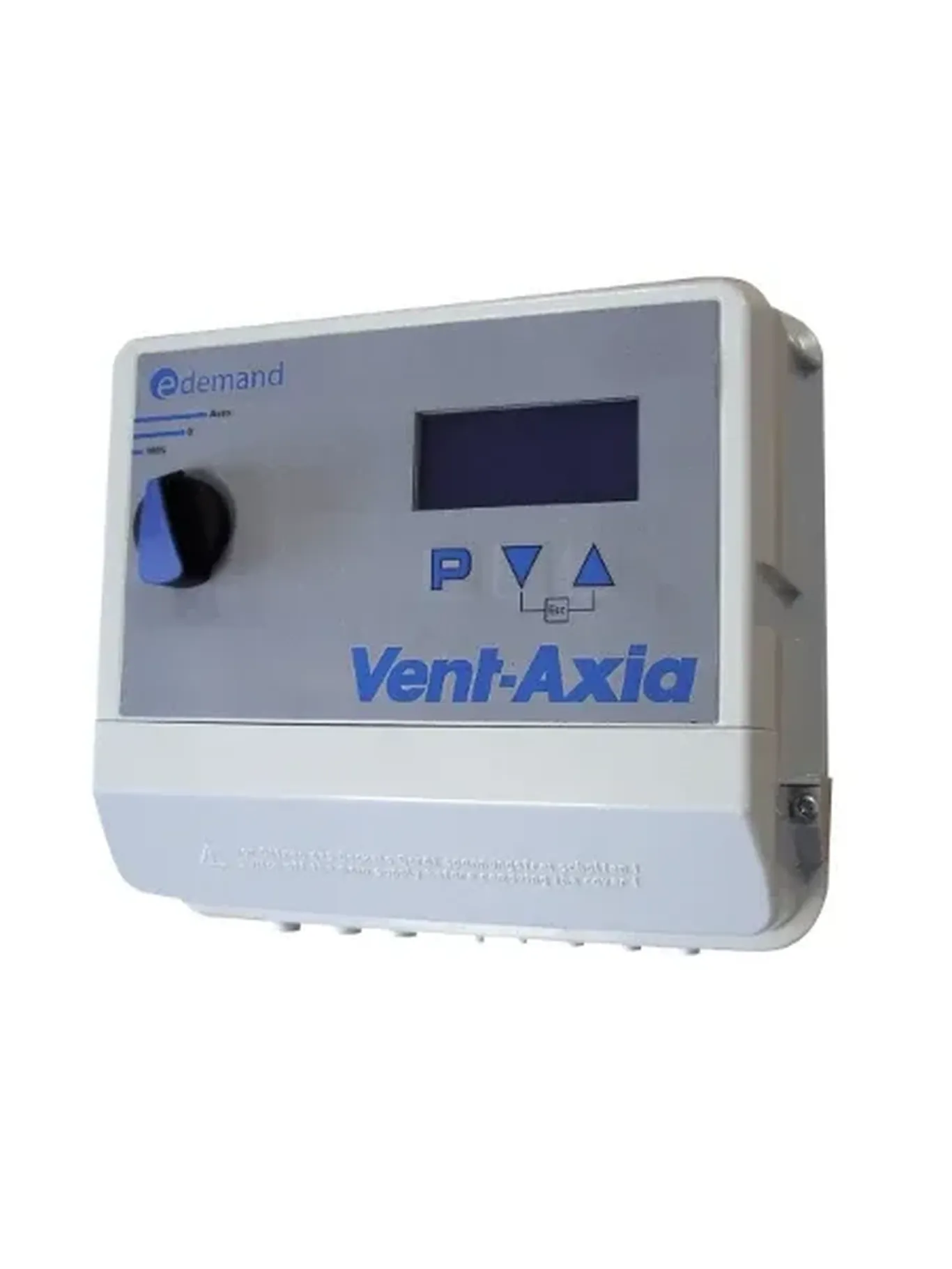

The Vent-Axia eDemand Single Phase 6 Amp Voltage Controller provides demand-based ventilation control for compatible A/C speed-controllable fans. Though now obsolete, it supported a wide range of ventilation applications with features including fast setup via pre-configured operating modes and IP54 protection for reliable use in demanding environments.
This unit offers comprehensive motor protection using a thermistor connection and includes an LCD multifunction display for ease of monitoring and control. Two analogue sensor inputs (0 – 10V with external power supply or 0 – 20mA) allow for integration with CO2, temperature, and constant pressure sensors. Additionally, a manual remote speed control (0 – 20mA) is supported.
Part of the broader Vent-Axia eDemand range, this controller was compatible with a variety of fan systems, including 1‑phase and 3‑phase electronic voltage controllers and inverters. All inverter models in the series came with integrated sine filters and shared a common user interface. The product line was further complemented by IP54-rated twin fan auto changeover panels for both single and three-phase power, featuring an adjustable duty share timer.
