444176 : Vent Axia eDemand Frequency Inverter 3Ph 18Amp 444176
Vent-Axia / (444176)
Specifications
| Code & Description | Price | |
|---|---|---|
|
444176 : Vent Axia eDemand Frequency Inverter 3Ph 18Amp 444176
Note: £3,068.64 + VAT for new customers using 'WELCNFAN1' discount code!
|
£3,610.16 + VAT £4,332.19 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

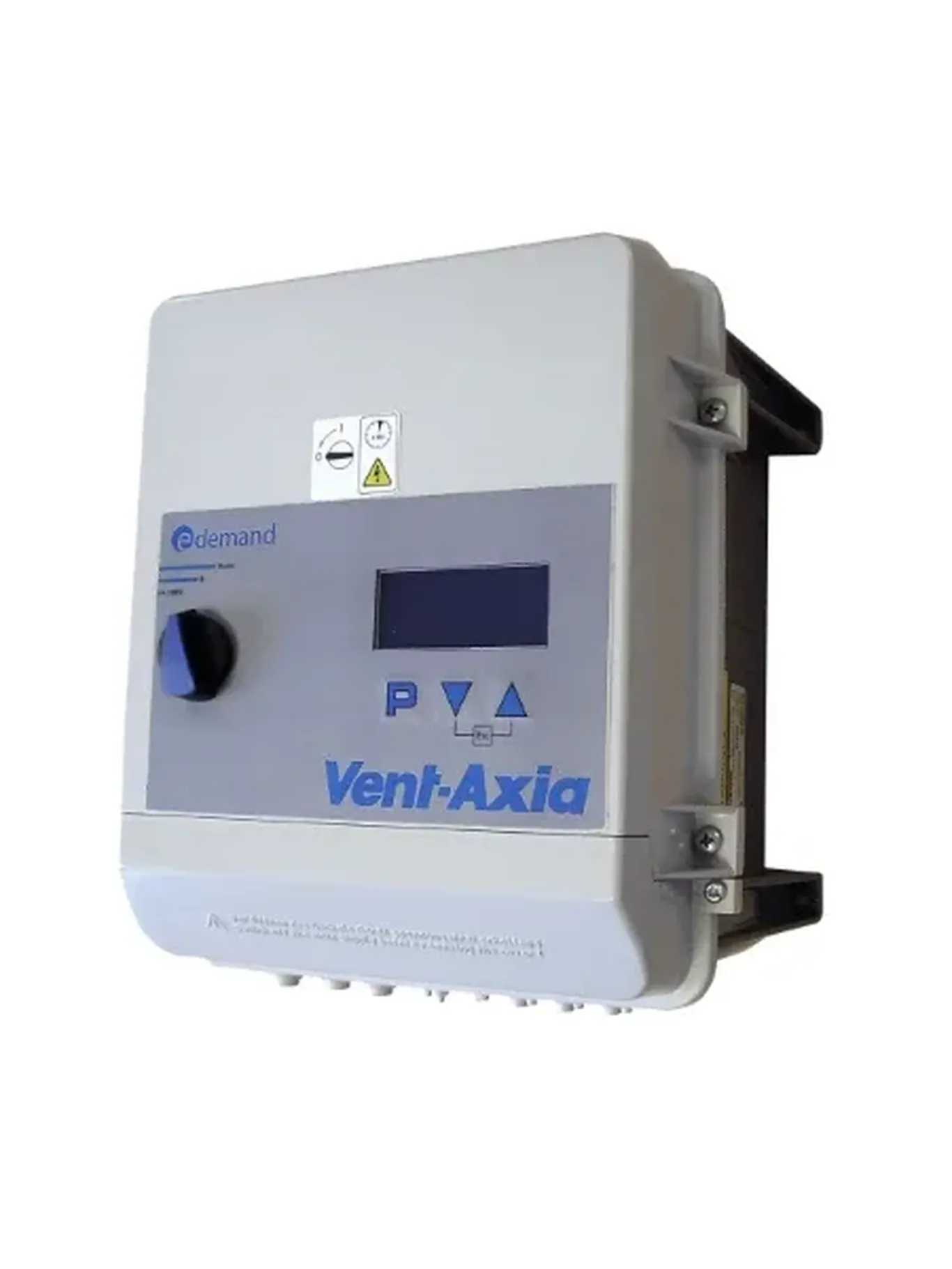

The Vent-Axia eDemand Frequency Inverter (Three Phase, 18 Amp) provides advanced demand-based ventilation control for A/C speed-controllable motor fans. Built to handle intensive HVAC applications, this inverter features an IP54-rated enclosure for environmental protection and durability.
It includes quick-start functionality with pre-set modes for easy commissioning, and total motor protection through thermistor connectivity. An LCD multifunction display allows for intuitive monitoring and configuration. Two analogue inputs — 0 – 10V (external power supply required) and 0 – 20mA — enable integration with CO2, temperature, and constant pressure sensors. Manual speed control is available through a 0 – 20mA remote input.
As part of the Vent-Axia eDemand range, this 18A inverter supports both single and three-phase systems and incorporates a built-in sine filter to ensure smooth, efficient motor operation. All models share a unified user interface and can be used with IP54-rated twin fan auto changeover panels, complete with adjustable duty share timers for balanced and reliable airflow management.
