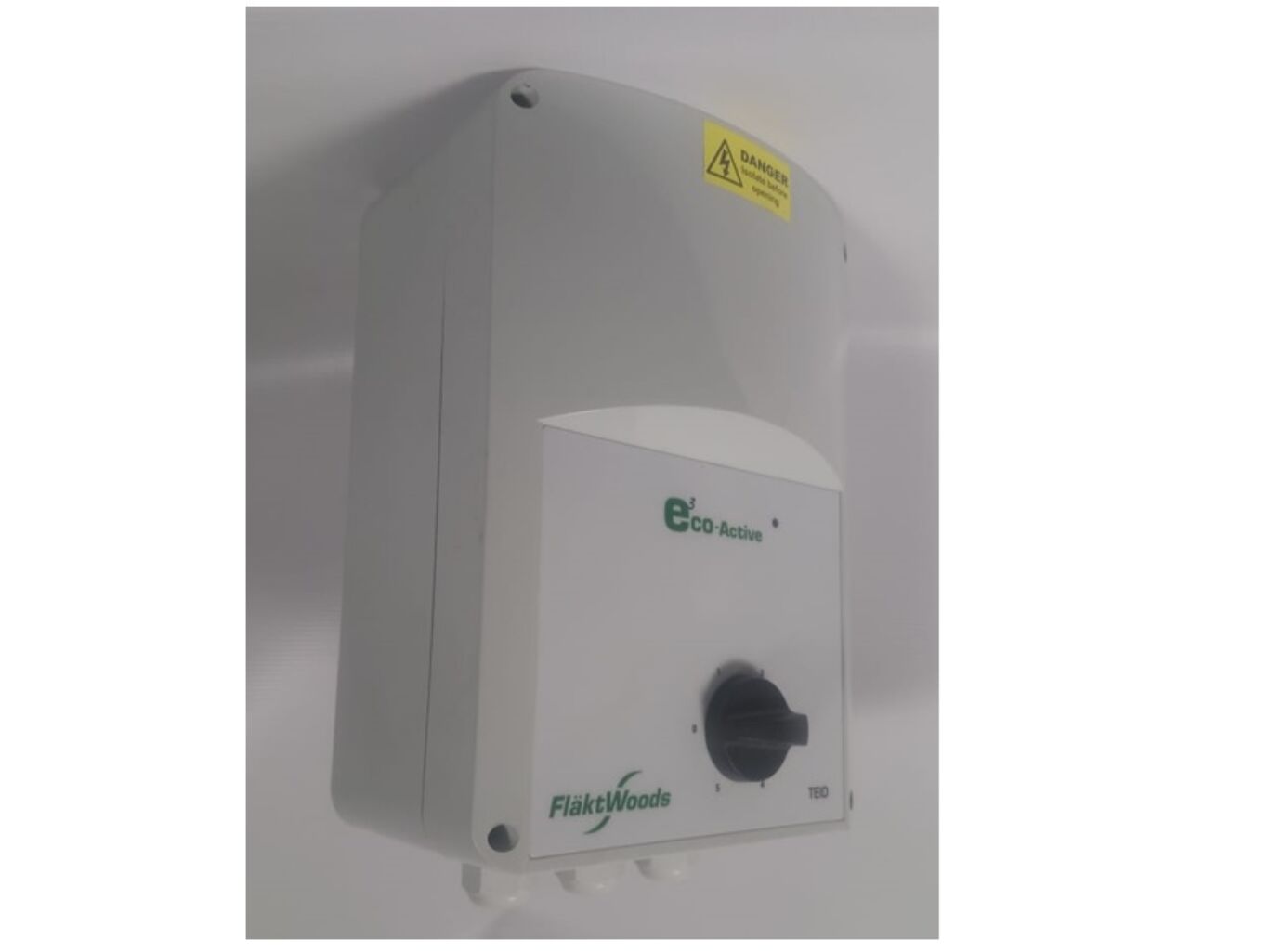

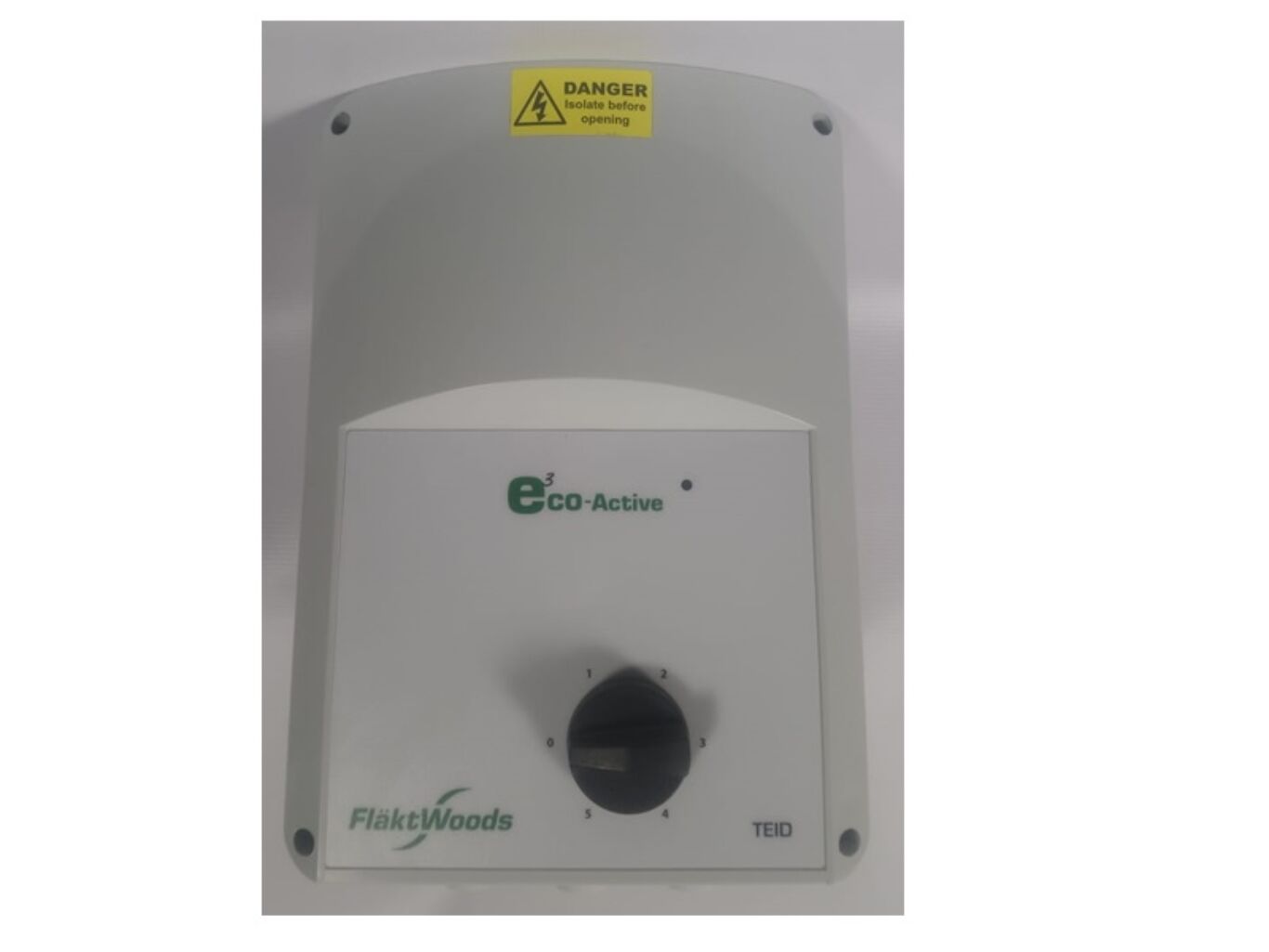

TEID2.2A Transformer Single Phase Fan Speed Controller

The TEID range of Transformer fan speed controllers manufactured by Flakt Woods. This range of fan speed controllers can be used with any Fan / Motor which is single phase – 240 volts and speed controllable using either 2 or 3 wire control (+earth).

TEID 1A EA900000 suitable for a maximum full load of 1.0 amp
TEID 1.5A EA900001 suitable for a maximum full load of 1.5 amps
TEID 2.2A EA900002 suitable for a maximum full load of 2.2 amps
TEID 3.5A EA900003 suitable for a maximum full load of 3.5 amps
TEID 5A EA900004 suitable for a maximum full load of 5.0 amps
TEID 7.5A EA900005 suitable for a maximum full load of 7.5 amps
TEID 13A EA900006 suitable for a maximum full load of 13 amps

The TEID range of fan speed controllers can be used with any manufacturers fans / motors which are single phase and suitable for speed control via 2 or 3 wires (+earth) including

• Flakt Woods

• Ziehl Abegg

• Elta

• Helios

• Solar and Palau

• Nuaire

Not sure if your fan is suitable? just ask and we can check for you

Features

Indepentent transformer 5 step speed controller for fans with off position
Supply: 230 VAC, 50/60 Hz, 1 Phase
IP54 Ingress protection
Switch: 5 positions with off position
Indicator light
Current fuse
230 VAC unregulated output
Ready mounted cable glands
Enclosure: plastic (R‑ABS, UL94-Vo, Grey RAL 7035) or sheet steel (RAL 7035)
Max ambient temperature, 50°C
