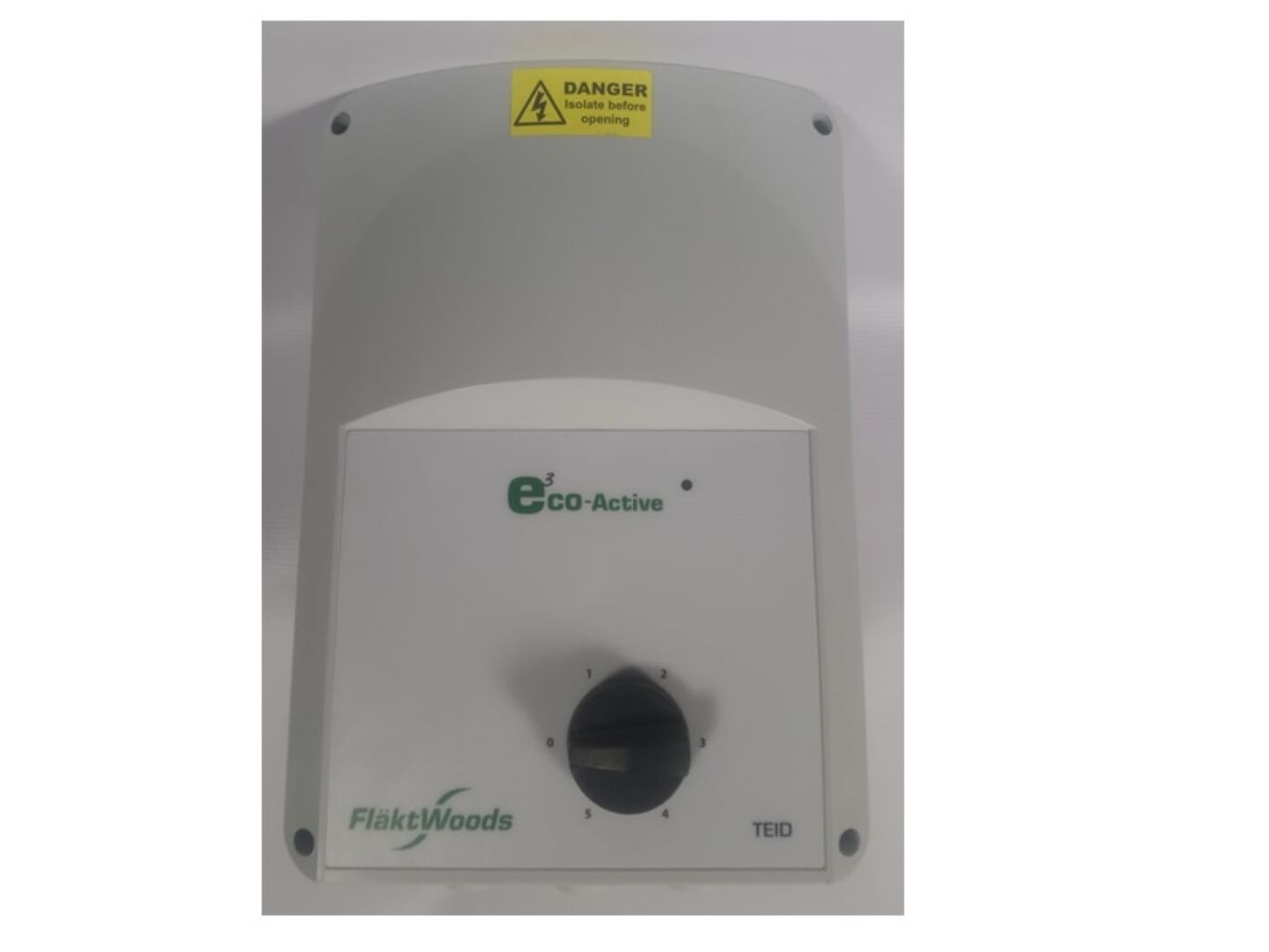

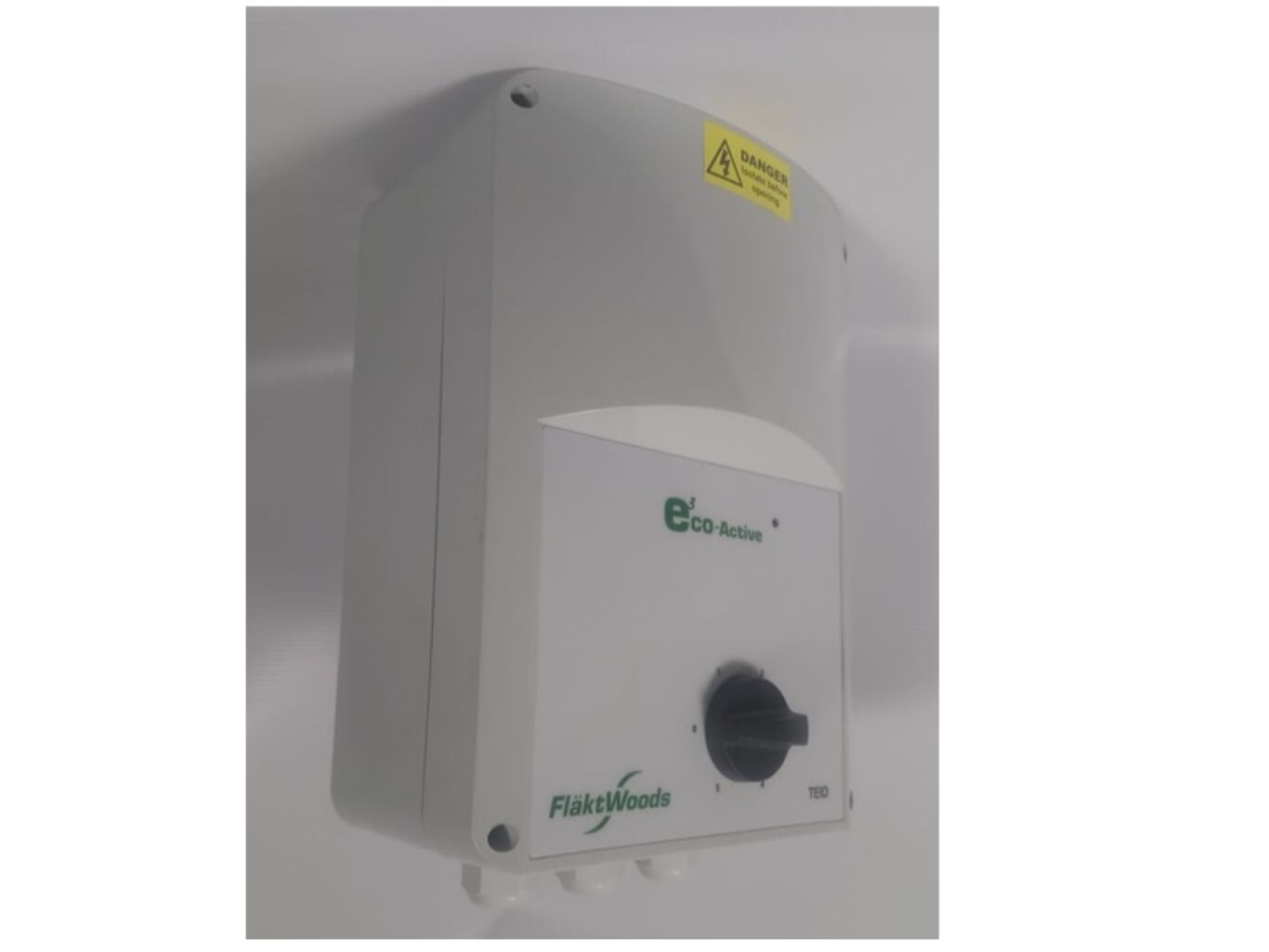

TEID1A Transformer Single Phase Fan Speed Controller

The TEID range of Transformer fan speed controllers manufactured by Flakt Woods. This range of fan speed controllers can be used with any Fan / Motor which is single phase – 240 volts and speed controllable using either 2 or 3 wire control (+earth).

TEID 1A EA900000 suitable for a maximum full load of 1.0 amp
TEID 1.5A EA900001 suitable for a maximum full load of 1.5 amps
TEID 2.2A EA900002 suitable for a maximum full load of 2.2 amps
TEID 3.5A EA900003 suitable for a maximum full load of 3.5 amps
TEID 5A EA900004 suitable for a maximum full load of 5.0 amps
TEID 7.5A EA900005 suitable for a maximum full load of 7.5 amps
TEID 13A EA900006 suitable for a maximum full load of 13 amps

The TEID range of fan speed controllers can be used with any manufacturers fans / motors which are single phase and suitable for speed control via 2 or 3 wires (+earth) including

• Flakt Woods

• Ziehl Abegg

• Elta

• Helios

• Solar and Palau

• Nuaire

Not sure if your fan is suitable? just ask and we can check for you Features:

Features

Indepentent transformer 5 step speed controller for fans with off position
Supply: 230 VAC, 50/60 Hz, 1 Phase
IP54 Ingress protection
Switch: 5 positions with off position
Indicator light
Current fuse
230 VAC unregulated output

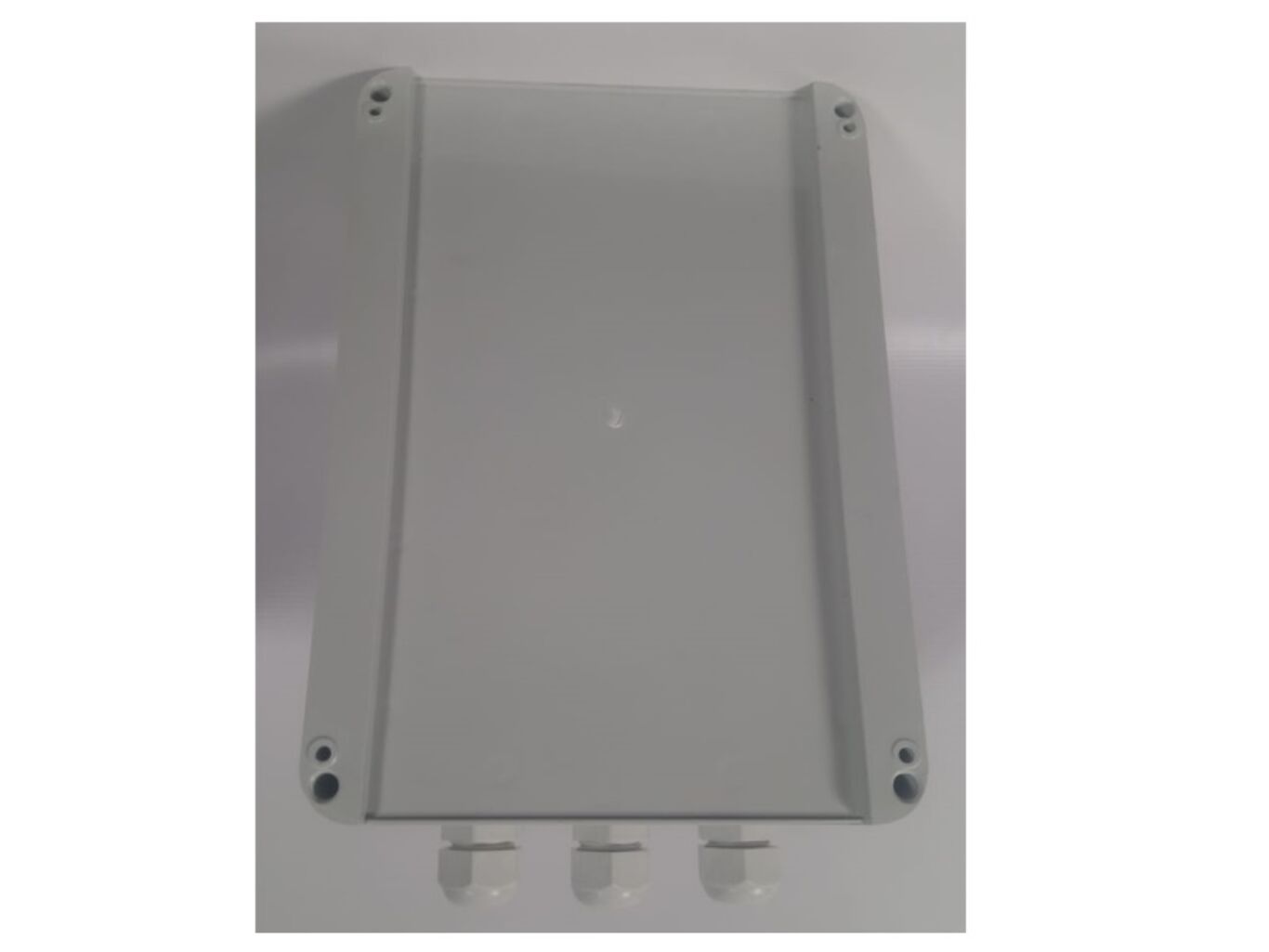

Ready mounted cable glands
Enclosure: plastic (R‑ABS, UL94-Vo, Grey RAL 7035) or sheet steel (RAL 7035)
Max ambient temperature, 50°C
