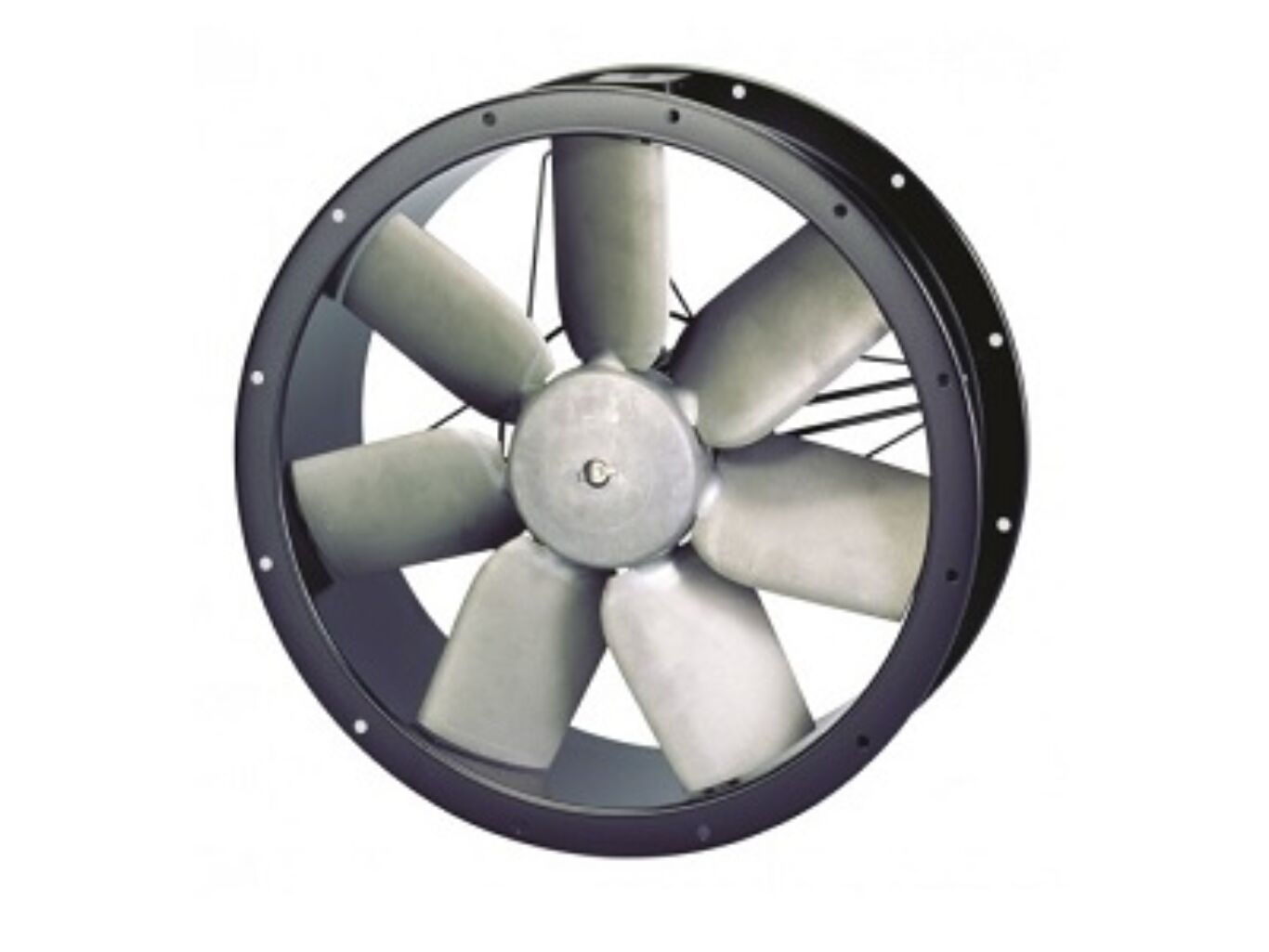

SOLER AND PALAU TCBB/4 – 450/H cased axial flow extract fan previously known CA450/4/1B
Soler and Palau
Prices & Options
Manufactured by S&P (Soler and Palau) founded in Spain in 1951 by the engineers Eduard Soler and Josep Palau, this range of short cased axial is one of the the best performing on the market. Note, although previously badged up by Vent Axia in the UK it is a different size to the current range of Vent-Axia and Systemair fans. It is also widely used in the agricultural industry with a different coloured impellor.
Single phase motor
250 – 630 Dia held in stock
All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.
Models 250, 315, 355 and 400: External rotor motor, IP44, Class F, thermal protection, working temperature from ‑40ºC to +40ºC.
Models 450, 500, 560, 630 and 6/710: IP65, Class F, thermal protection, working temperature from ‑40ºC to +70ºC.
Models 4/710 and 800: IP55, Class F, working temperature from ‑40ºC to +40ºC.
All motors are speed controllable by autotransformer except models /4 – 560H, /4 – 630, 710 and T/800.
| Code & Description | Price | |
|---|---|---|
| tcbb4450h : SOLER AND PALAU TCBB/4-450/H cased axial flow extract fan previously known CA450/4/1B | £487.96 + VAT £585.55 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
