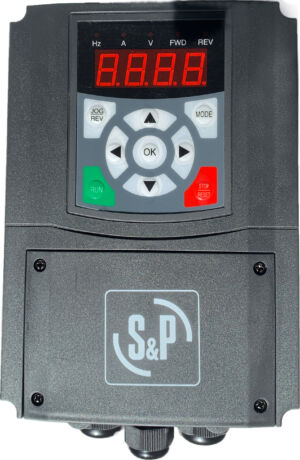

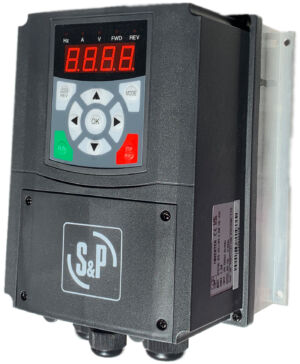

S&P UK Ventilation Digital VFD 1ph>3ph 2.2kW 10A IP54 Inverter Speed Controller, Soler and Palau single phase in and three phase out Inverter
Soler and Palau
Prices & Options
Soler and Palau’s VFD‑M Range of 1 phase in to 3 phase out Inverter speed controller, designed for use with S&P’s PACK range of fans, with 3ph 230/400V motors from a 230V supply.
VFD-M10A, 2.2KW, 230V 3 phase, 10amps Max 2.2kW
Part number — L1000000662
Used with the following fans from a 230V supply:
KABT PACK Fans
- KABT/4 – 3000/315
- KABT/4 – 4000/355
- KABT/4 – 6000/450
- KABT/4 – 9000/500
CVAT PACK Fans
- CVAT/4 – 1400/250 ND
- CVAT/4 – 2000/315 ND
- CVAT/4 – 3000/355 ND
- CVAT/4 – 4000/400 ND
- CVAT/4 – 6000/450 ND
- CVAT/4 – 9000/500 ND
- CVAT/6 – 15000/710 ND
TCBTx2 PACK Fans
- TCBTx2/4 – 450
- TCBTx2/4 – 500
The inverter may be suitable for use with other fans, if in doubt please call 0161 864 1777 to check suitability.
Maximum Input Current — 32A
Input Cable Size — up to 4mm
Output Cable Size — up to 4mm
Max Cable Length — 25m
Cable between Inverter and Fan should be screened type
Distances up to 50m should be fitted with an EMC filter, over 50m a choke is also required
Normal Equipment Temperature range is ‑10dec C to + 40deg C
Normal Equipment Humidity Range is 20% RH to 90% RH
| Code & Description | Price | |
|---|---|---|
| VFD-M10A : S&P UK Ventilation Digital VFD 1ph>3ph 2.2kW 10A IP54 Inverter Speed Controller | £561.98 + VAT £674.38 | |
We accept :
Downloads
- Instruction Manual | 729.37 KB
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
