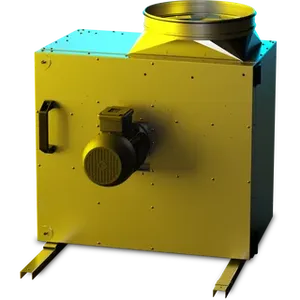

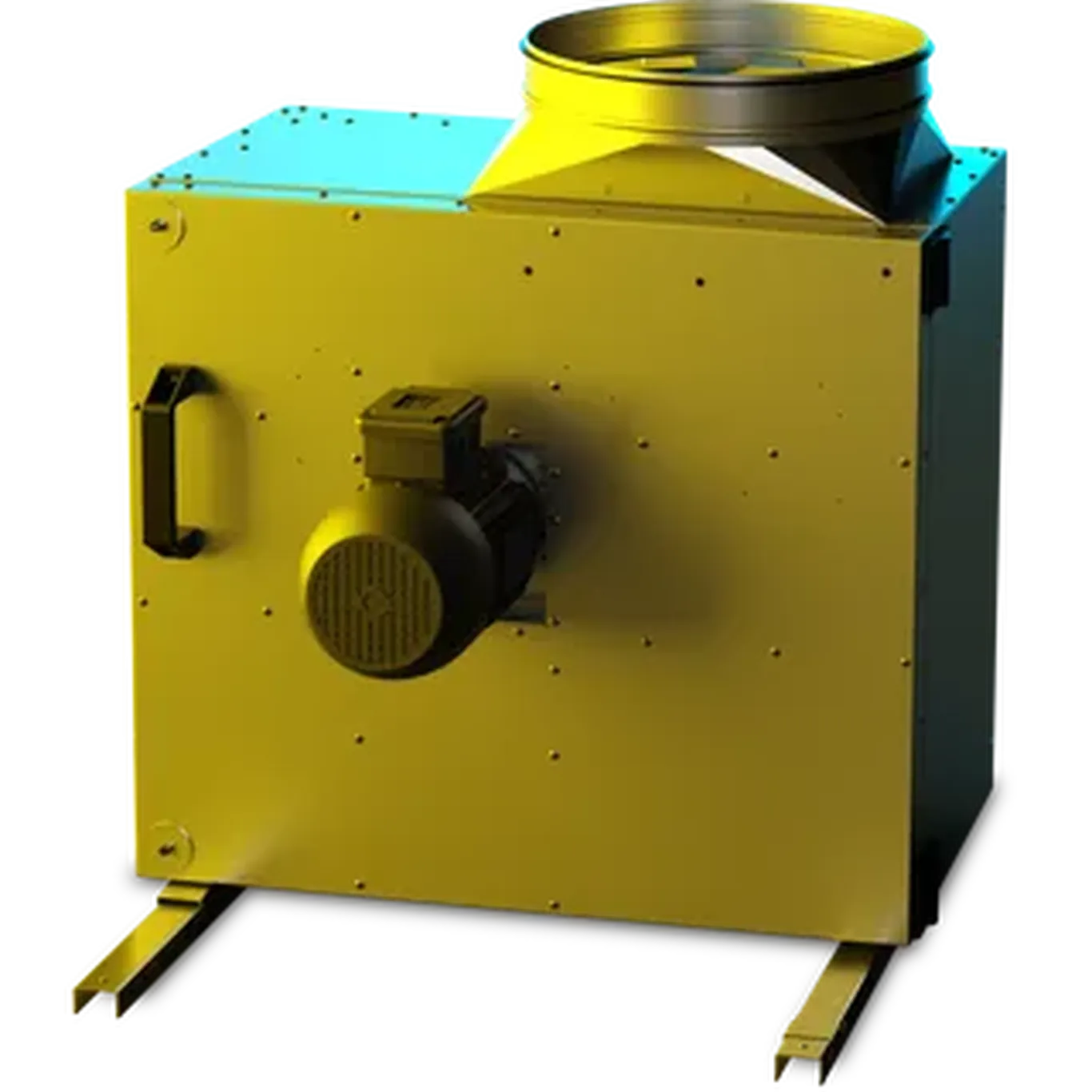

RUCK MPS 560mm Kitchen Box Fan 3ph, Motor out of the Airstream, F400 (400-deg C for 2hours) MPS 560 D4 F4 30

The Ruck MPS 560mm Kitchen Box Fan 3‑phase F400 (D4) is designed for demanding commercial and industrial kitchen ventilation systems requiring reliable airflow and high-temperature resistance. The backward curved centrifugal impeller provides stable and efficient air movement suitable for extraction applications. The swing-out fan design allows easy access for cleaning and maintenance.

The housing is constructed from sheet steel with a double-walled design incorporating 40 mm mineral wool insulation, helping reduce noise and improve thermal protection. The IE3 motor is mounted outside the airstream and is frequency controllable, offering flexible and efficient speed regulation.

Rated F400, this fan is tested for operation at 400°C for 2 hours and supports continuous duty at 200°C, making it suitable for smoke extraction and high-temperature environments. An integrated condensate and grease drain ensures effective management of moisture and residues, contributing to long-term reliable operation in demanding kitchen extraction systems.
