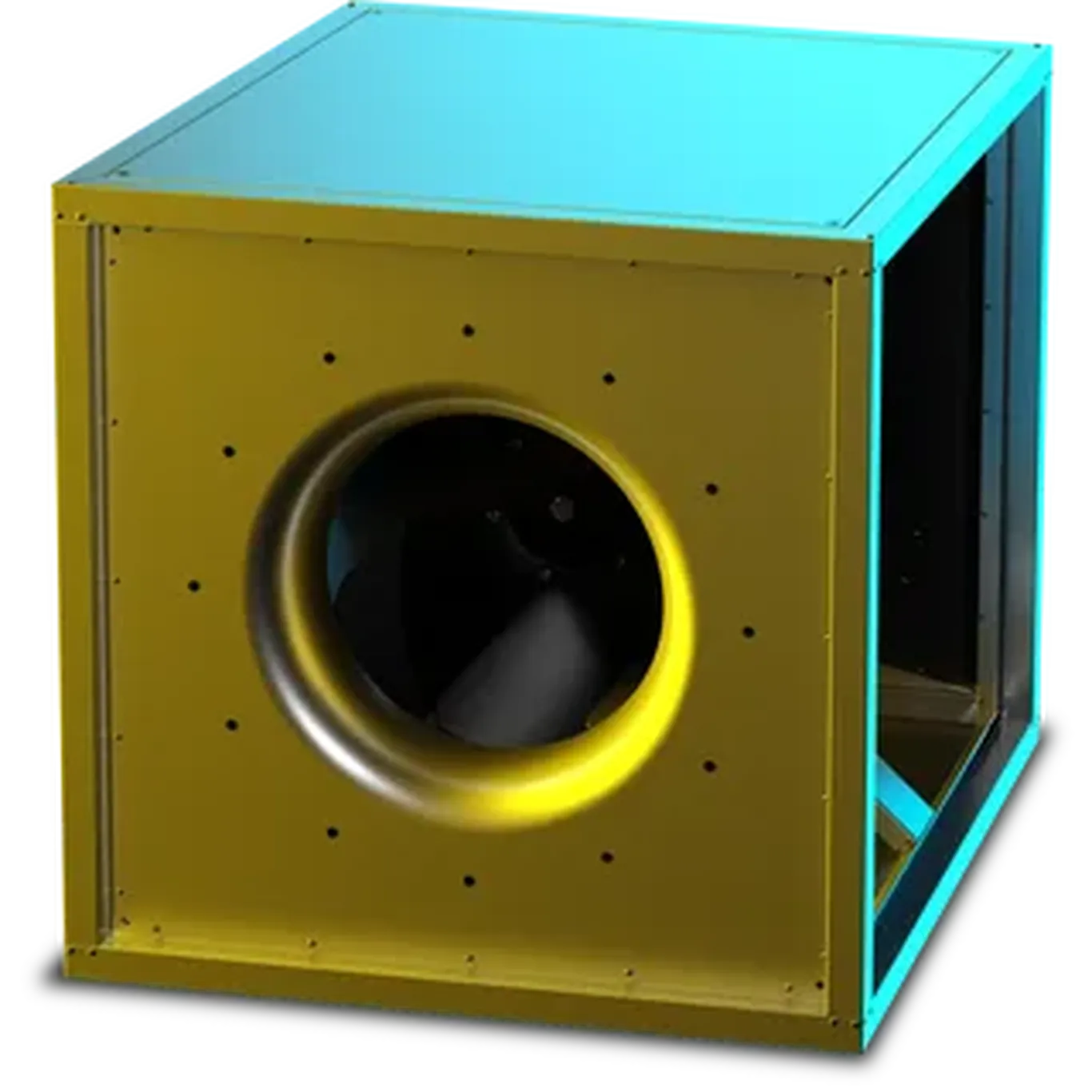

RUCK MPC T 800mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) MPC 800 D6 F4 T40

The RUCK MPC T 800mm centrifugal box smoke fan is engineered for effective smoke extraction and continuous ventilation in industrial and commercial settings. It features a backward curved centrifugal impeller that ensures efficient airflow and consistent performance. The housing is constructed from galvanized sheet steel, double-walled, and insulated with 25 mm mineral wool to provide durability and reduce noise.

This fan is equipped with an IE3 motor positioned outside the airstream, offering protection and enabling frequency-controlled operation as required. The unit is certified as an F400 smoke extract fan, capable of handling 400°C for two hours, and supports dual-use applications, including continuous operation at 200°C.

The discharge direction can be configured to the right, left, or upward to suit installation requirements. The housing base includes an integrated drain for effective moisture management. This fan provides a reliable and practical solution for industrial smoke control and ventilation systems.
