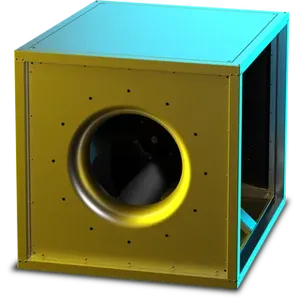

RUCK MPC T 630mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) MPC 630 D4 F4 T40

The RUCK MPC T 630mm centrifugal box smoke fan is designed for dependable smoke extraction and continuous ventilation in industrial and commercial environments. It features a backward curved centrifugal impeller for efficient airflow and consistent performance. The housing is made from galvanized sheet steel, double-walled, and insulated with 25 mm mineral wool for enhanced durability and reduced noise.

This model includes an IE3 motor positioned outside the airstream, offering protection and enabling frequency-controlled operation. Certified as an F400 smoke extract fan, it can withstand 400°C for two hours and supports dual-use applications, including continuous operation at 200°C.

The discharge direction can be configured to the right, left, or upward, providing flexibility during installation. The housing base incorporates an integrated drain to effectively manage moisture. This fan provides a robust and practical solution for industrial smoke control and ventilation systems.
