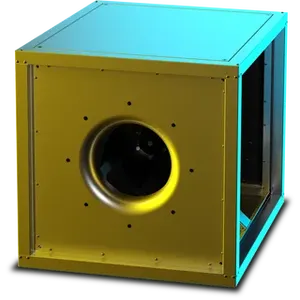

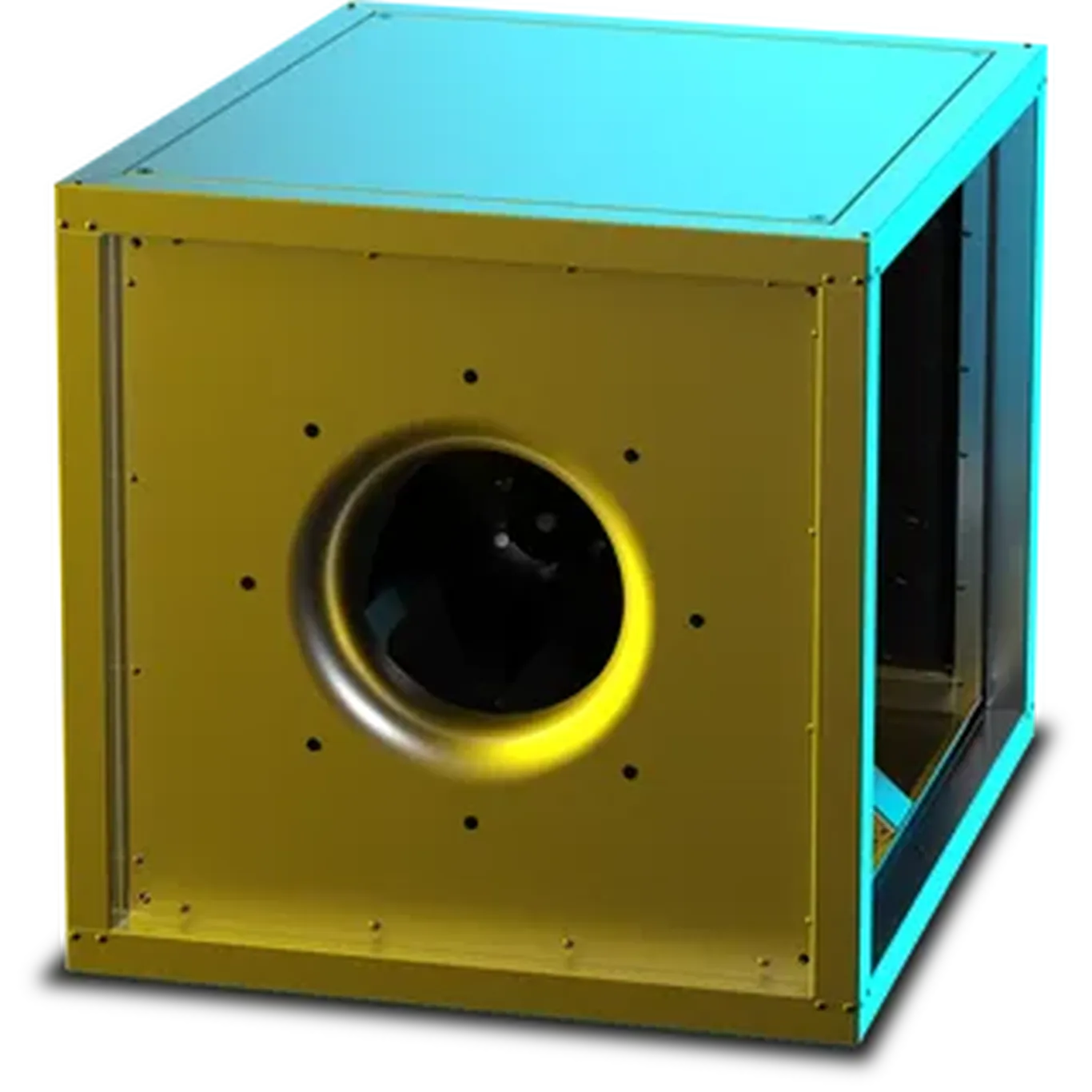

RUCK MPC T 450mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) MPC 450 D4 F4 T40

The RUCK MPC T 450mm centrifugal box smoke fan is designed for effective smoke extraction and continuous ventilation in industrial and commercial applications. It features a backward curved centrifugal impeller that ensures efficient airflow and stable performance. The fan housing is made from galvanized sheet steel, double-walled, and insulated with 25 mm mineral wool for durability and noise reduction.

This model includes an IE3 motor mounted outside the airflow, providing protection and enabling frequency-controlled operation as required. Certified as an F400 smoke extract fan, it can operate at 400°C for two hours and supports dual-use applications, including continuous operation at 200°C.

The discharge direction can be configured to the right, left, or upward to suit different installation requirements. The housing base incorporates an integrated drain to manage moisture effectively. This fan provides a reliable and practical solution for industrial smoke control and ventilation systems.
