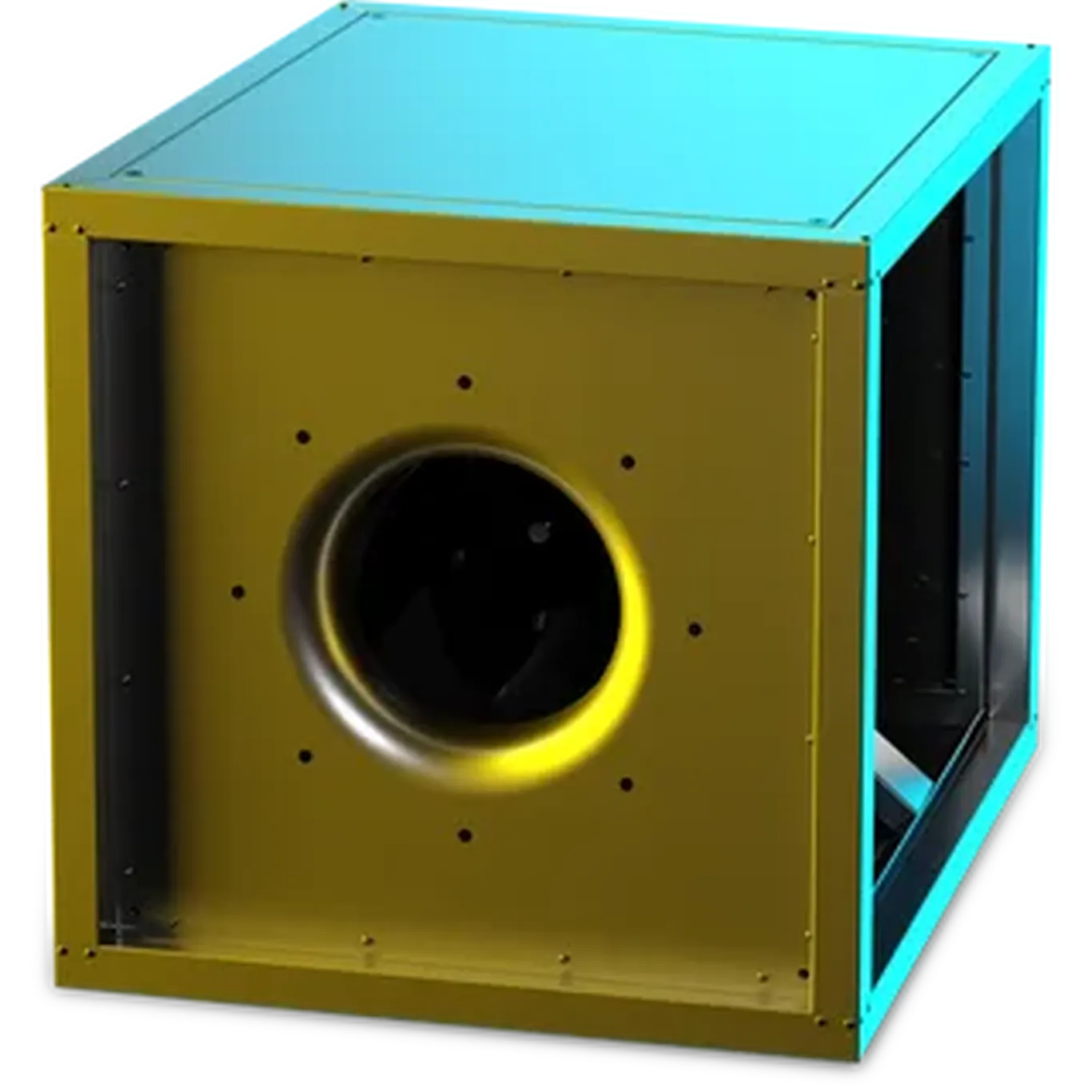

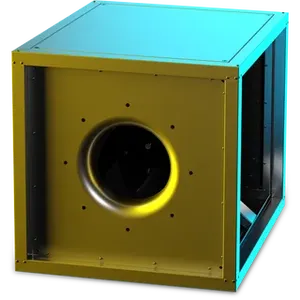

RUCK MPC T 450mm Centrifual Box Fan with Motor out of the Airstream 3ph MPCT 450 D4 I K 01

The RUCK MPCT 450 D4 I K 01 is a high-performance centrifugal box fan designed for demanding commercial and industrial ventilation systems. It features a backward curved impeller engineered to deliver efficient, stable airflow with low energy consumption across a wide operating range.

For flexible installation, the unit is built with removable side walls, enabling the discharge direction to be adjusted to suit system layout and ducting requirements. The housing is constructed from galvanized steel with a double-walled insulated design, helping reduce noise, enhance durability, and ensure long-lasting performance even in challenging environments.

The fan is equipped with a robust IE3 motor mounted outside the airstream, keeping the motor protected from heat and airflow contaminants. This configuration supports frequency control, allowing airflow adjustment to meet specific system demands.

Engineered for high-temperature applications, the MPCT 450 D4 I K 01 is suitable for continuous operation with conveyed air temperatures up to 120°C. The base of the housing features an integrated drain, ensuring effective condensate removal and clean, reliable operation over time.
