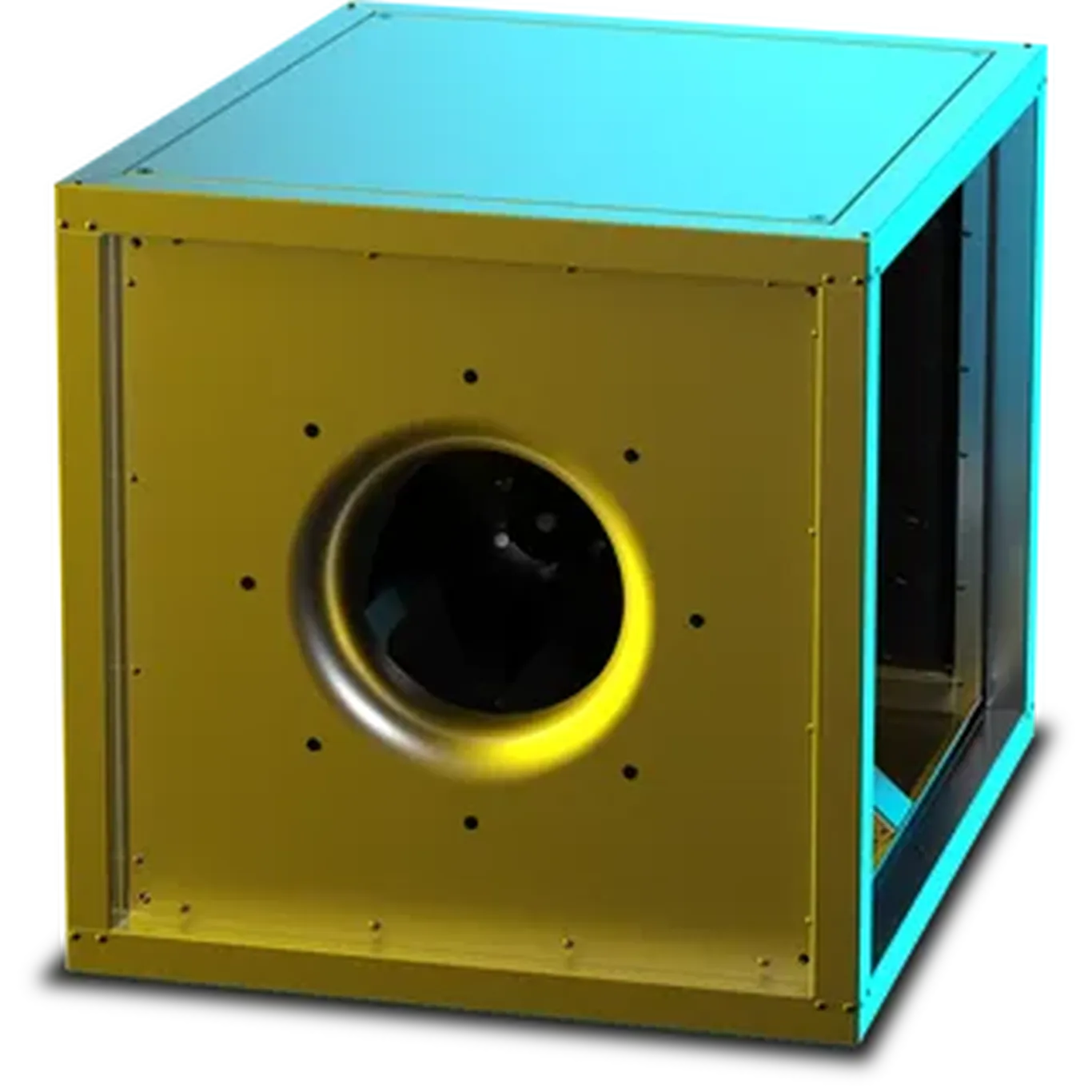

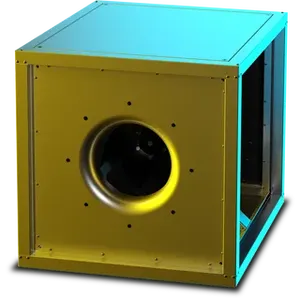

RUCK MPC T 400mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) MPC 400 D4 F4 T40

The RUCK MPC T 400mm centrifugal box smoke fan is engineered for reliable smoke extraction and continuous ventilation in industrial and commercial settings. It incorporates a backward curved centrifugal impeller to provide efficient airflow and consistent performance. The fan housing is constructed from galvanized sheet steel, double-walled, and insulated with 25 mm mineral wool to enhance durability and reduce noise.

This model includes an IE3 motor positioned outside the airflow, offering protection and enabling frequency-controlled operation as needed. Certified as an F400 smoke extract fan, it can operate at 400°C for two hours and is suitable for dual-use, including continuous operation at 200°C.

The discharge direction can be configured to the right, left, or upward, allowing flexible installation options. The bottom of the housing is equipped with an integrated drain to manage moisture. This fan delivers a robust and practical solution for industrial smoke control and ventilation systems.
