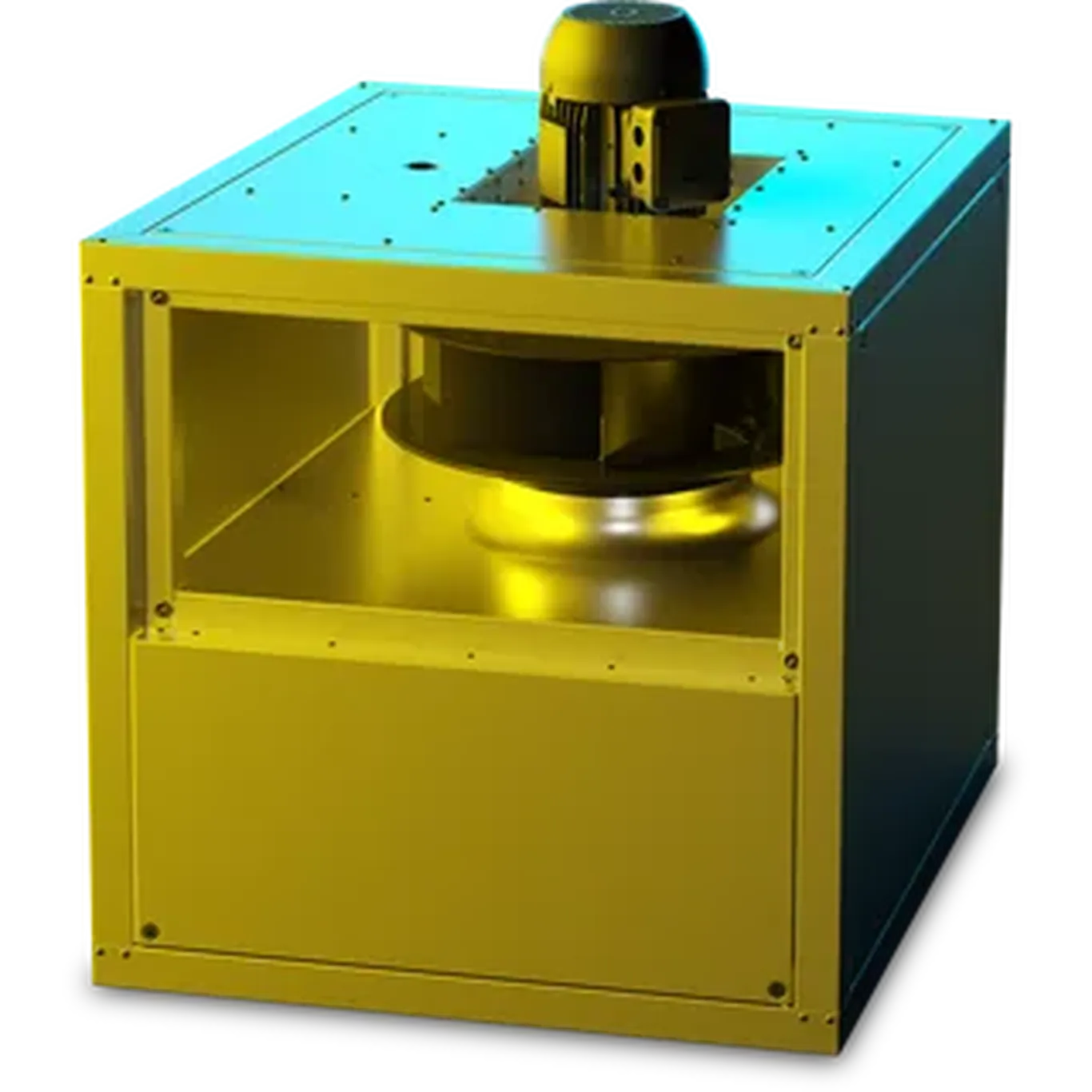

RUCK MPC T 355mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) Straight through Airflow MPC 355 D4 F4 TI 30

The RUCK MPC T 355mm centrifugal smoke fan is built for reliable airflow and smoke extraction in demanding ventilation systems. It uses a backward curved centrifugal impeller to maintain efficient and consistent air movement. The fan supports linear, straight-through airflow, making it suitable for installations requiring direct and unobstructed air passage.

The housing is constructed from galvanized steel with a double-wall insulated design, providing durability and controlled operation. Its IE3 motor is mounted outside the airstream to protect it from high temperatures and allow frequency-controllable performance. This model is tested as an F400 smoke extract fan and is approved for continuous operation with medium temperatures up to 200°C.

A built-in drain at the housing base assists with moisture management during operation. Overall, this unit offers a dependable and straightforward solution for smoke extraction and general ventilation needs.
