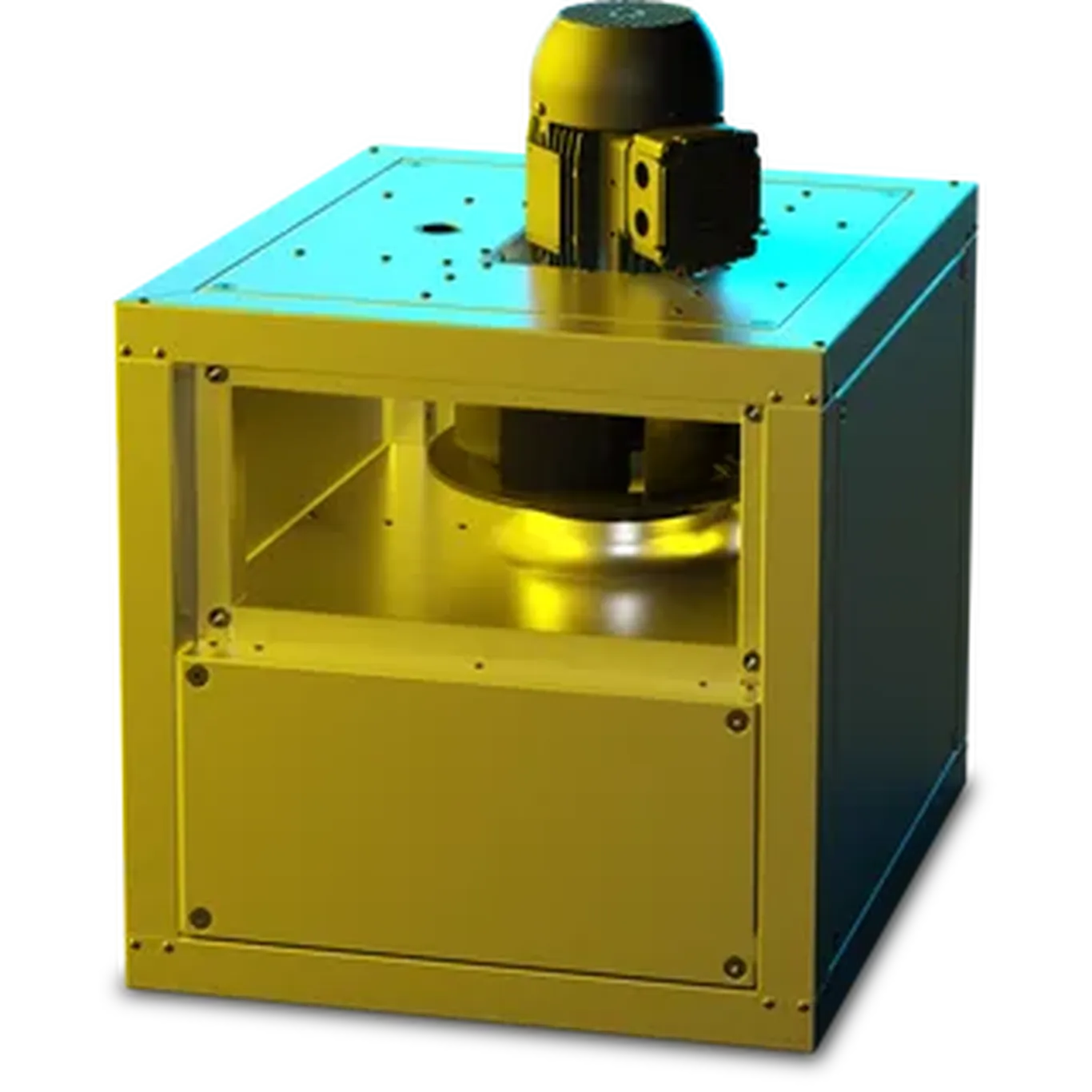

RUCK MPC T 225mm Centrifual Box Smoke Fan with Motor out of the Airstream 3ph, F400 (400-deg C for 2hours) Straight through Airflow MPC 225 D2 F4 TI 30

The RUCK MPC T 225mm centrifugal smoke fan is built for applications requiring dependable smoke extraction and stable airflow performance. It uses a backward curved centrifugal impeller to support efficient and consistent air movement. The design provides linear, straight-through airflow, making it suitable for systems where unrestricted flow is required.

The fan housing is constructed from galvanized steel with a double-wall insulated design, offering durability and improved acoustic characteristics. Its IE3 motor is mounted outside the airstream, providing frequency-controllable operation and protecting the motor from high-temperature air. This model is rated as an F400 smoke extract fan and is suitable for continuous operation up to 200°C.

The base of the housing features an integrated drain to support moisture management in demanding environments. Overall, this unit delivers a practical and reliable solution for ventilation and smoke extraction applications.
