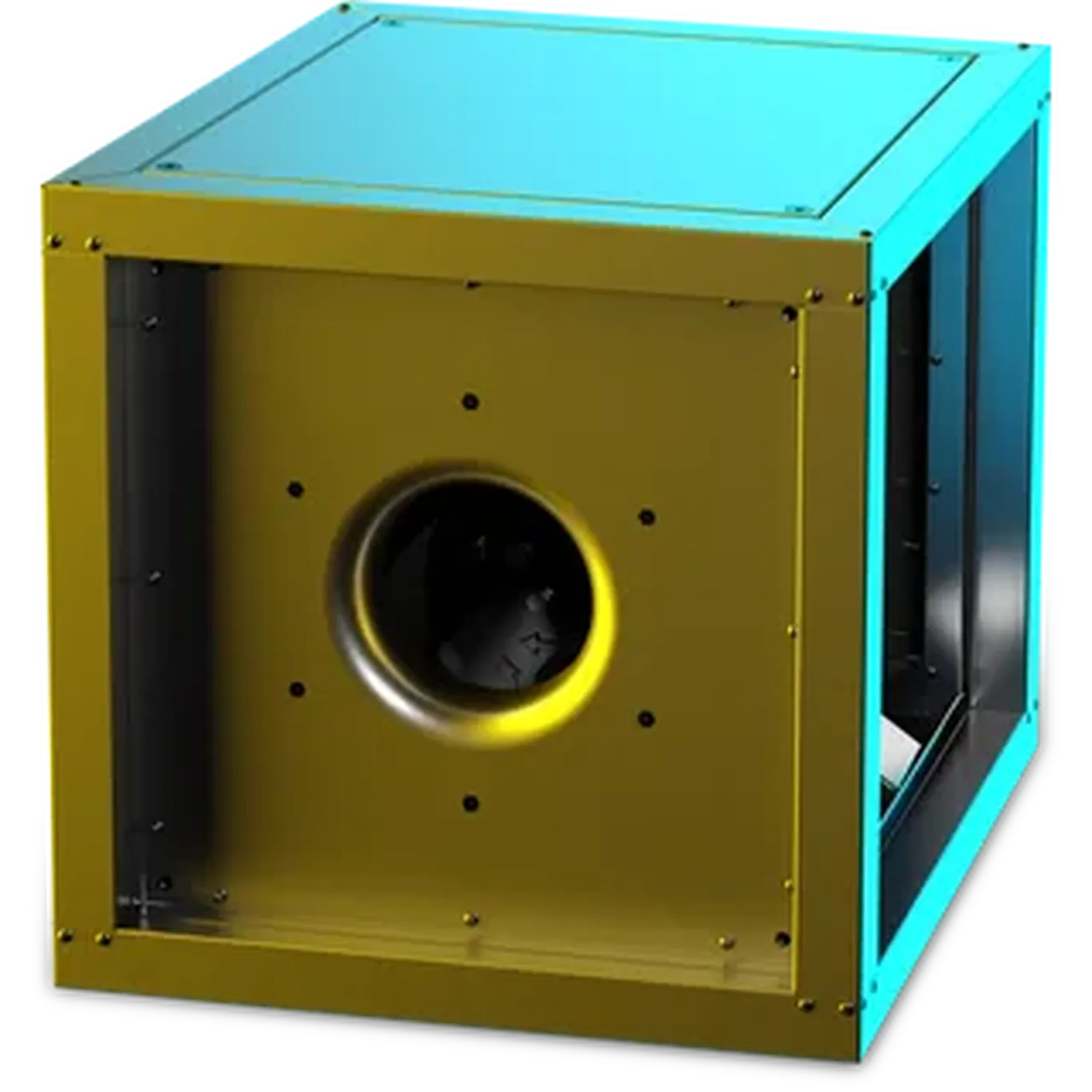

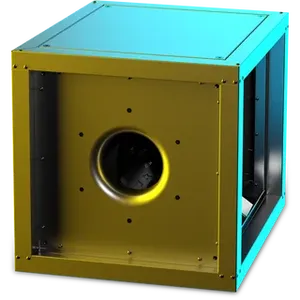

RUCK MPC T 225mm Centrifual Box Fan with Motor out of the Airstream 1ph MPC 225 E2 T21

The Ruck MPC 225mm Centrifugal Box Fan MPC 225 E2 T21 is a single-phase ventilation unit designed with a backward curved centrifugal impeller for efficient airflow. The fan allows flexible installation with removable side walls and a variable discharge direction, accommodating different system layouts.

The unit is housed in double-walled sheet steel with 30 mm mineral wool insulation, providing durability, thermal protection, and noise reduction. The AC motor is positioned outside the airstream, reducing exposure to the conveyed medium and allowing controllable operation. The fan is suitable for conveying medium temperatures up to 80 °C in continuous operation.

The housing bottom is designed with an integrated drain, simplifying maintenance and preventing condensation accumulation. This model provides a reliable and practical solution for general ventilation applications requiring a single-phase centrifugal box fan with motor out of the airflow.
