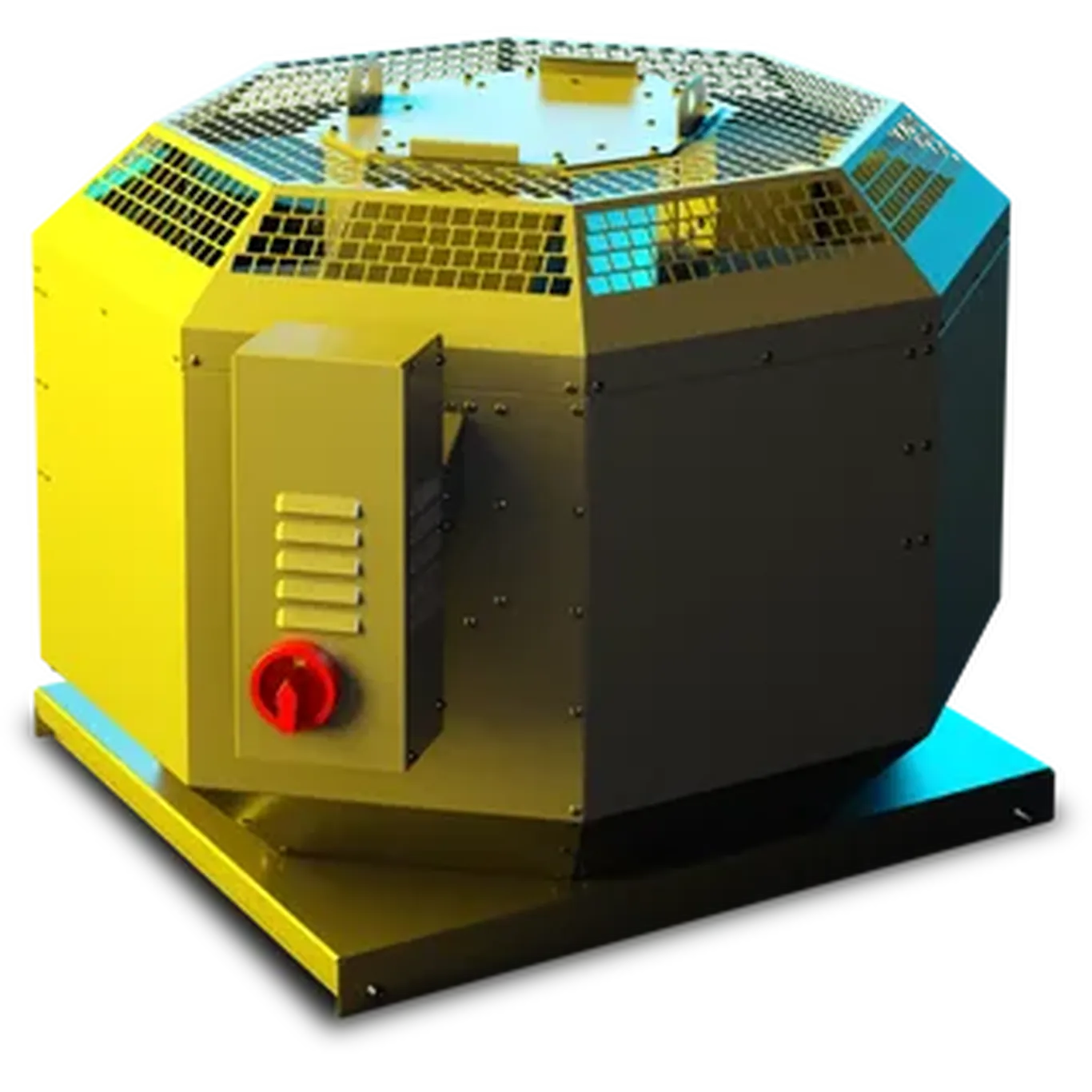

RUCK DVN 500mm 3ph Vertical Discharge Centrifugal Smoke Fan with Motor Out of The Airstream, F400 (400-deg C for 2hours) DVN 500 D4 F4 30

The RUCK DVN 500 D4 F4 30 is a high-performance vertical discharge centrifugal fan engineered for demanding smoke extraction applications. Its backward-curved impeller delivers efficient airflow while maintaining stable operation under pressure. With its vertical discharge configuration and heavy-duty construction, the unit is suitable for commercial, industrial, and high-temperature ventilation systems.

Built with a robust AlMg3 aluminum housing, the fan includes a hinged casing and grease drain to simplify maintenance and servicing. The IE3 motor is positioned outside the airstream to prevent exposure to high-temperature fumes, ensuring long-term reliability. Frequency control capability allows for variable airflow adjustment, enhancing energy efficiency and system flexibility.

Certified to F400, the DVN 500 D4 F4 30 is designed to extract smoke at 400 °C for up to 2 hours and operate continuously at 200 °C. An integrated device switch adds operational safety and convenience. This model provides a dependable solution for environments requiring reliable high-temperature smoke extraction.
