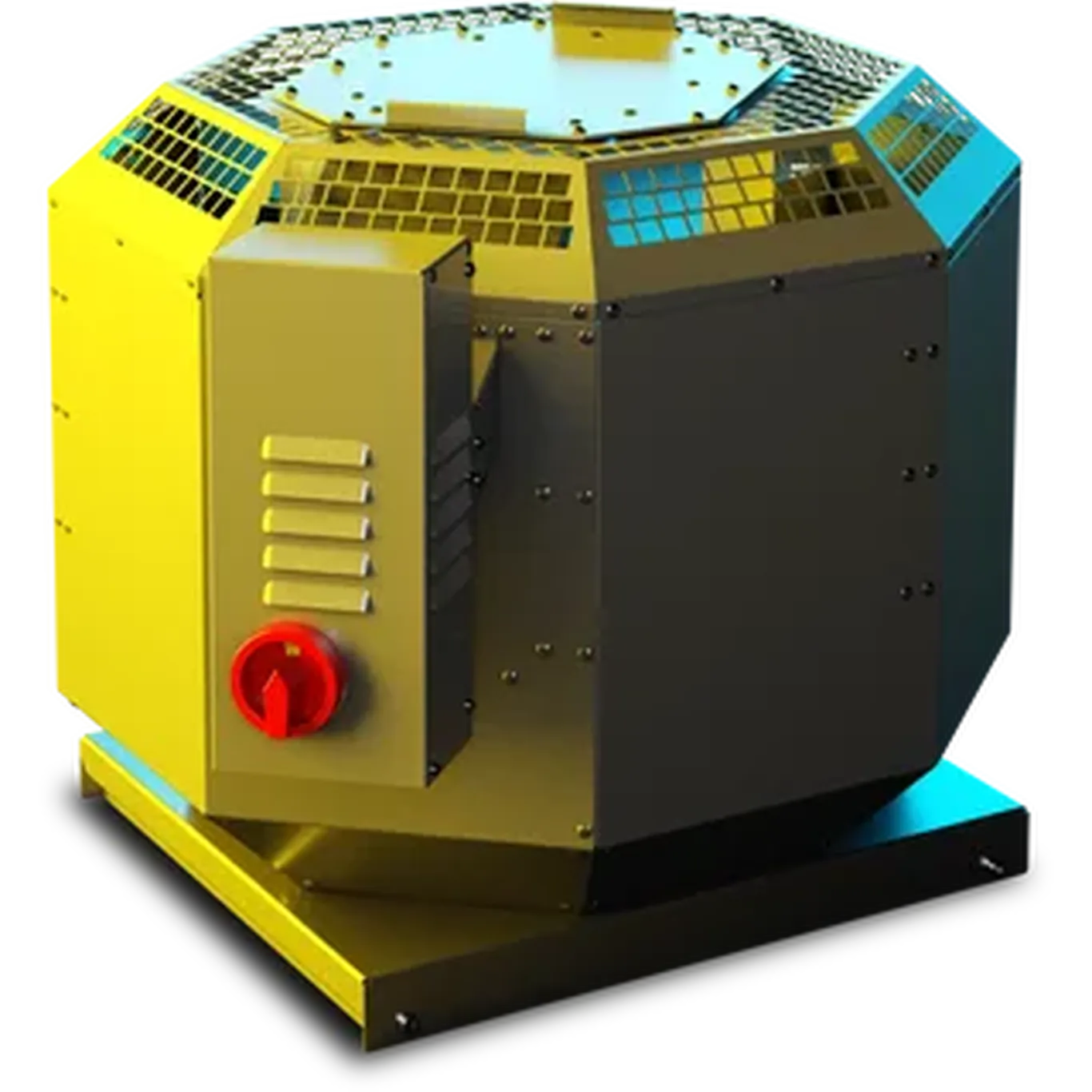

RUCK DVN 315mm 3ph Vertical Discharge Centrifugal Smoke Fan with Motor Out of The Airstream, F400 (400-deg C for 2hours) DVN 315 D4 F4 30

The RUCK DVN 315 D4 F4 30 is a vertical discharge centrifugal fan engineered for effective smoke extraction in commercial and industrial ventilation systems. It features a backward-curved impeller for efficient and stable airflow and a vertical discharge layout suitable for a variety of installation configurations. The motor is mounted outside the airstream, ensuring reliable performance in high-temperature, grease-laden smoke conditions.

The fan housing is made from durable AlMg3 aluminum with a hinged design and integrated grease drain, allowing for easy cleaning and maintenance. Powered by an efficient IE3 motor with frequency control, it provides precise airflow adjustment and energy-efficient operation. Rated F400, the fan can extract smoke at 400 °C for 2 hours and operate continuously at 200 °C. An integrated device switch ensures safe and convenient operation. This model is ideal for demanding smoke extraction applications requiring robust and long-lasting performance.
