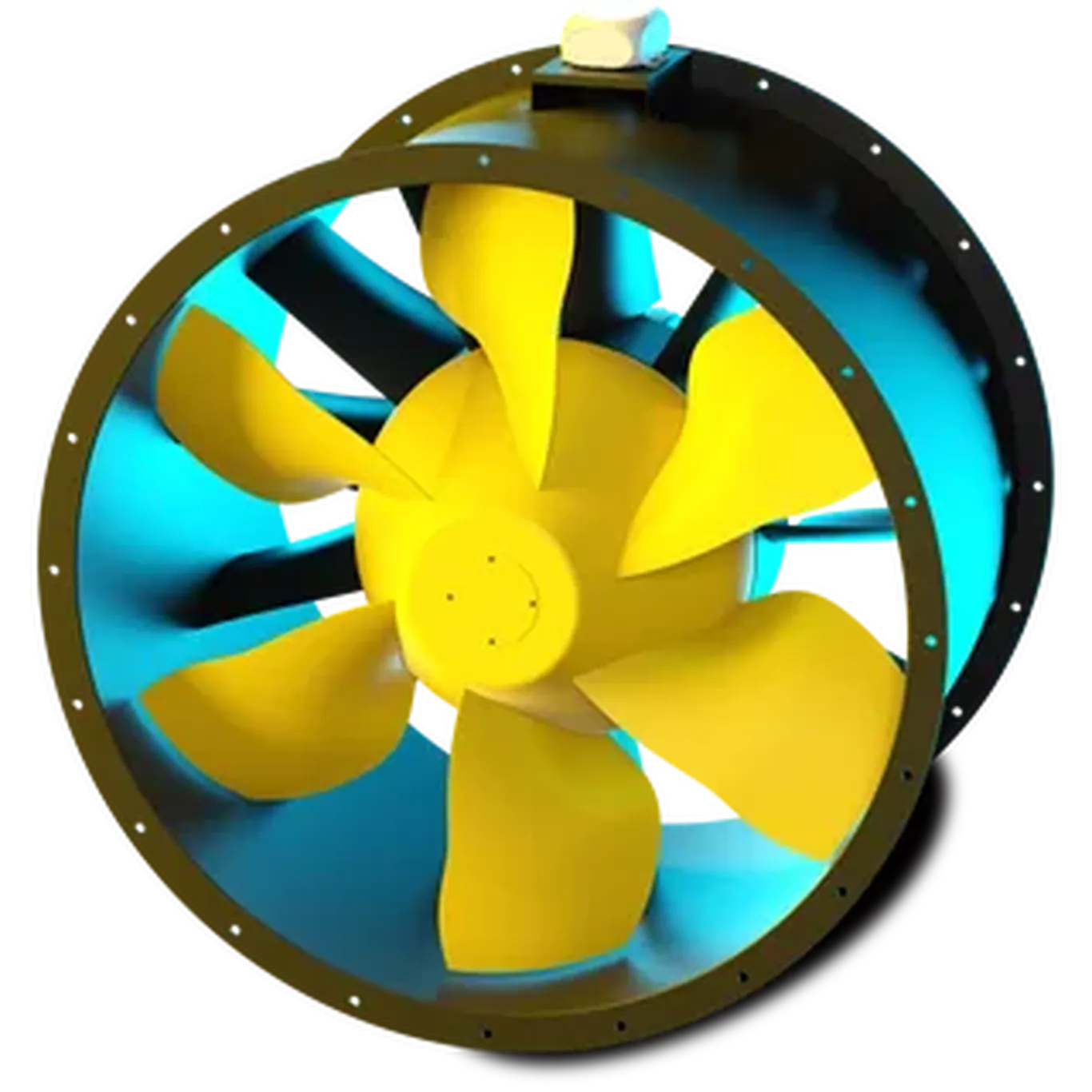

RUCK AL 800mm 4pole 3ph Inline Cased Fan AL 800 D4 01
Ruck
Specifications
The RUCK AL 800 D4 01 is an inline cased axial fan designed for general industrial and commercial ventilation applications. It is part of the RUCK AL series and features an 800mm axial impeller developed with CFD-optimised aerodynamics to support efficient airflow performance.
The fan is equipped with a 4‑pole, 3‑phase IE3 efficiency motor that requires a frequency converter for operation, enabling adjustable airflow while maintaining energy efficiency. The housing is weight-optimised and finished with a powder-coated surface to ensure durability in standard ventilation environments.
The RUCK AL 800 D4 01 is suitable for conveying air and similar media with temperatures of up to 60°C during continuous operation. The design exceeds current ErP efficiency requirements by approximately 15 – 20%, making it suitable for systems that require compliance with energy regulations.
| Code & Description | Price | |
|---|---|---|
|
162520 : RUCK AL 800mm 4pole 3ph Inline Cased Fan AL 800 D4 01
|
£1,634.96 + VAT £1,961.95 | |
