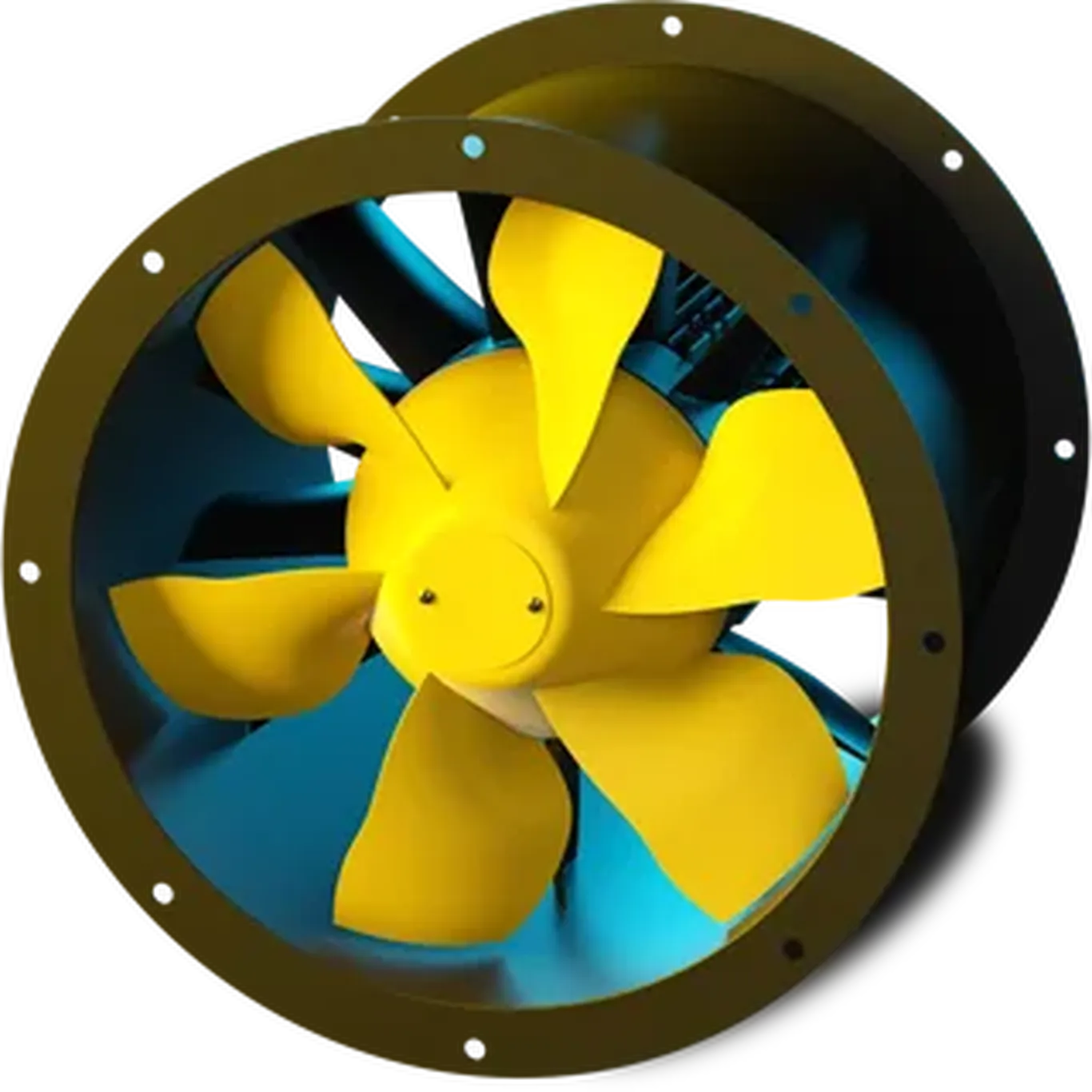

RUCK AL 450mm 4pole 3ph Inline Cased Fan AL 450 D4 01
Ruck
Specifications
The RUCK AL 450 D4 01 is an inline cased axial fan designed for use in general industrial and commercial ventilation systems. It belongs to the RUCK AL series and utilises a 450mm axial impeller developed with CFD-optimised aerodynamics to support efficient airflow performance.
The fan is fitted with a 4‑pole, 3‑phase IE3 efficiency motor that is suitable for frequency-controlled operation, allowing adaptable airflow control while maintaining energy efficiency. The housing is weight-optimised and finished with a powder-coated surface to provide protection in standard ventilation environments.
The RUCK AL 450 D4 01 is suitable for conveying air and similar media with temperatures of up to 60°C during continuous operation. Its design exceeds current ErP efficiency requirements by approximately 15 – 20%, making it suitable for installations where energy performance compliance is required.
| Code & Description | Price | |
|---|---|---|
|
154100 : RUCK AL 450mm 4pole 3ph Inline Cased Fan AL 450 D4 01
|
£619.73 + VAT £743.68 | |
