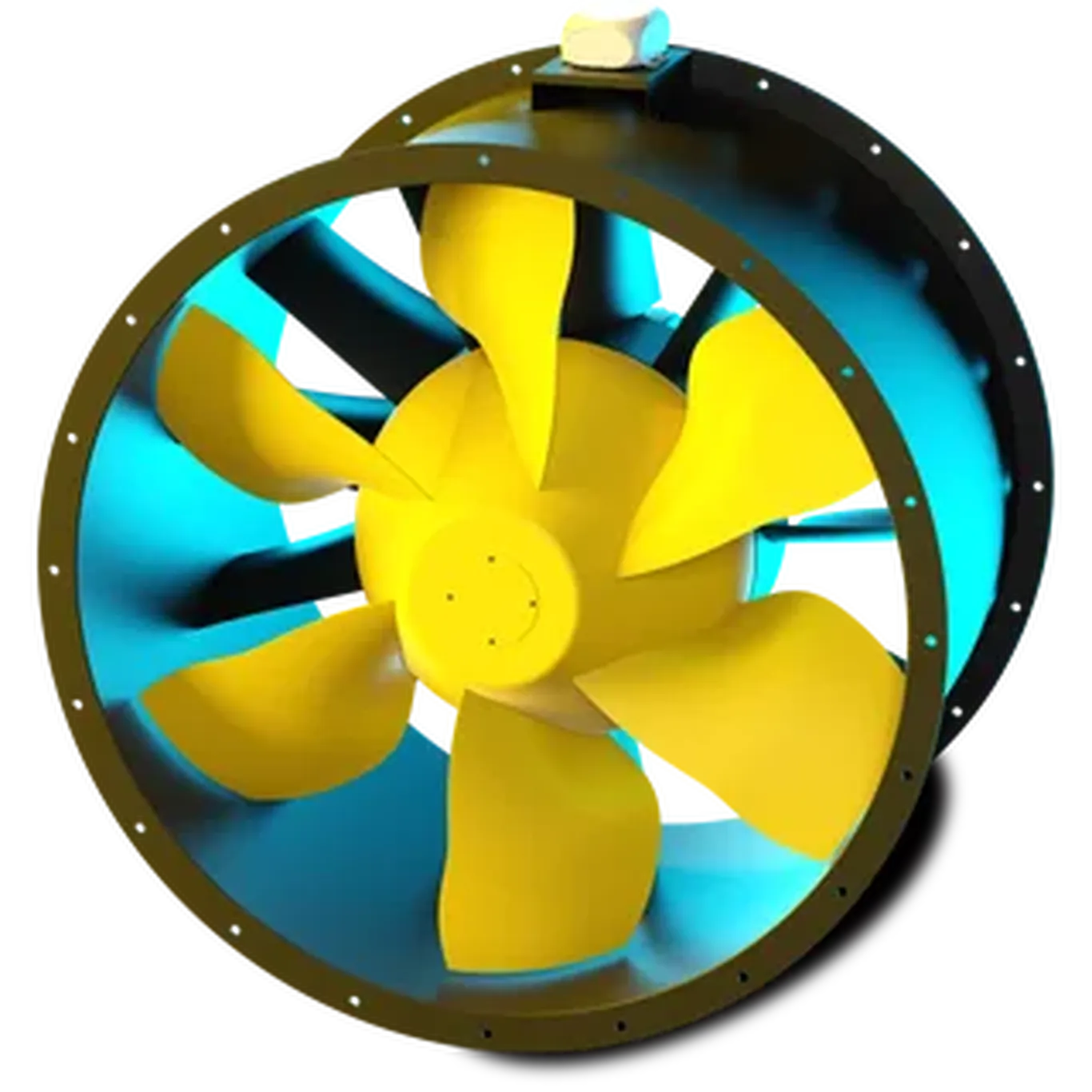

RUCK AL 1120mm 6pole 3ph Inline Cased Fan AL 1120 D6 02
Ruck
Specifications
The RUCK AL 1120 D6 02 is an inline cased axial fan intended for general industrial and commercial ventilation applications. It is part of the RUCK AL series and uses a 1120mm axial impeller developed with CFD-optimised aerodynamics to support efficient airflow performance.
The fan is equipped with a 6‑pole, 3‑phase IE3 efficiency motor suitable for frequency-controlled operation, allowing flexible airflow adjustment while maintaining energy efficiency. The housing is weight-optimised and finished with a powder-coated surface for durability in standard ventilation environments.
The RUCK AL 1120 D6 02 is suitable for conveying air and similar media with temperatures up to 60°C during continuous operation. The fan design exceeds current ErP efficiency requirements by approximately 15 – 20%, making it appropriate for systems requiring energy regulation compliance.
| Code & Description | Price | |
|---|---|---|
|
162707 : RUCK AL 1120mm 6pole 3ph Inline Cased Fan AL 1120 D6 02
|
£4,121.38 + VAT £4,945.66 | |
