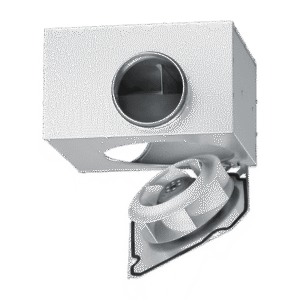

Helios Fans SVS 160 L

The Helios SVS 160 L is a slim, sound-insulated centrifugal fan box from the SlimVent series, ideal for ventilating bathrooms, toilets, and other spaces in residential, commercial, or light industrial environments.

The extended casing is crafted from robust galvanised sheet steel and internally lined with over 50 mm of durable, abrasion-resistant mineral fibreboard for excellent sound absorption. Both intake and exhaust ports feature twin-seal rubber gaskets, ensuring an airtight connection to standard ductwork. Maintenance is simplified with a swing-out design for the motor and impeller, allowing easy access for cleaning and service.

The fan uses an energy-efficient centrifugal impeller with backward curved blades made of high-grade polymers, dynamically balanced to ensure quiet, vibration-free operation.

Equipped with a totally enclosed motor, the unit includes ball bearings, impregnated windings, and built-in thermal contacts for reliable performance. The SVS 160 L offers dual-speed airflow (460÷320 m³/​h), making it a flexible and quiet solution for modern ventilation systems.
