MBD200/4EX : Helios Fans MBD 200/4 Ex
Helios / (MBD200/4EX)
| Code & Description | Price | |
|---|---|---|
|
MBD200/4EX : Helios Fans MBD 200/4 Ex
Note: £1,967.25 + VAT for new customers using 'WELCNFAN1' discount code!
|
£2,314.41 + VAT £2,777.29 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

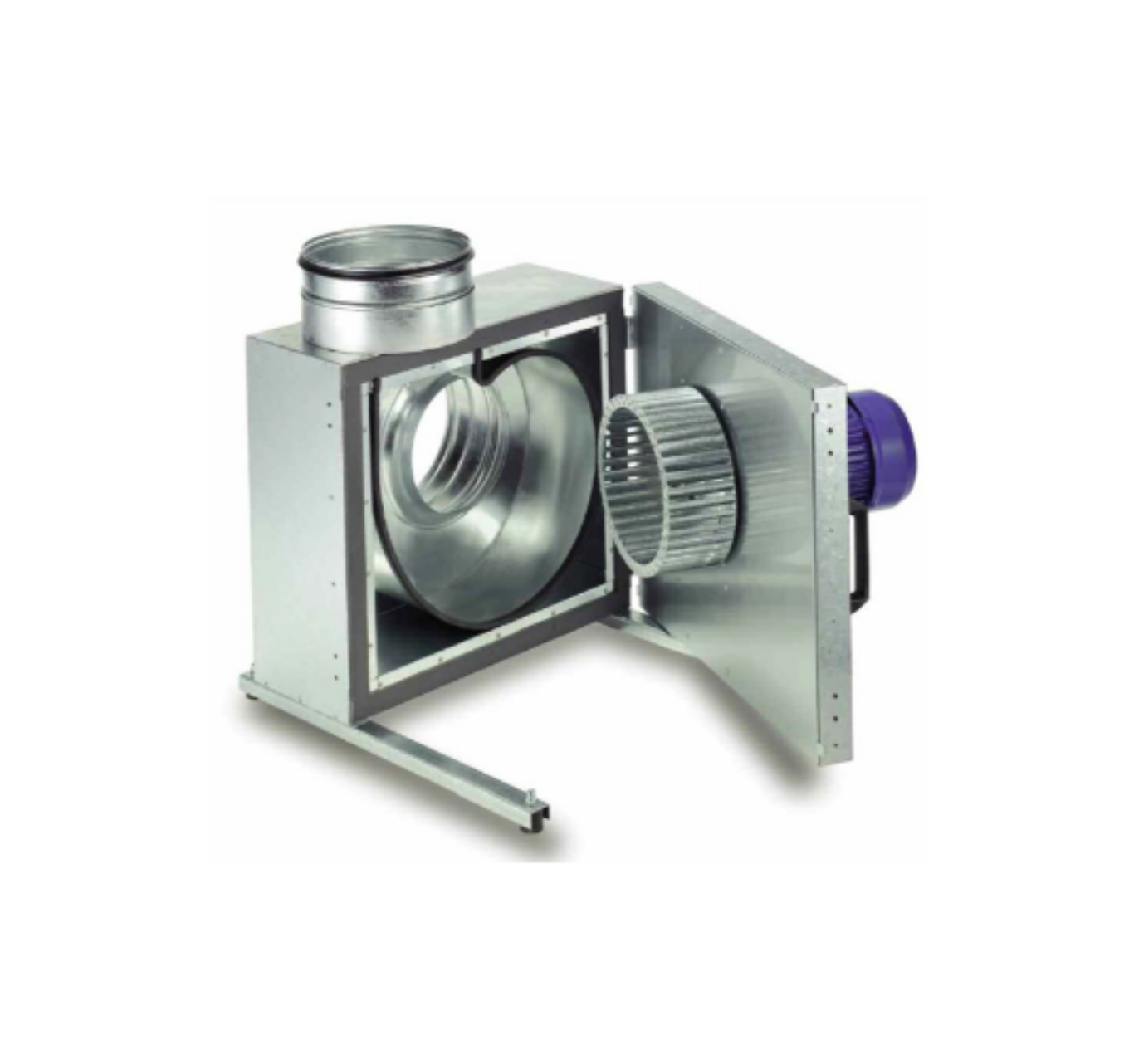

The Helios MBD 200/4 Ex is a high-performance centrifugal fan designed for industrial applications in potentially explosive atmospheres. Fully compliant with ATEX standards, this fan features a swing-out motor and impeller unit positioned outside of the airflow, facilitating safe and easy maintenance.
Its double-skinned galvanized steel casing is filled with 50 mm mineral fibreboard, ensuring excellent acoustic insulation. Both intake and exhaust ports are equipped with twin-seal rubber gaskets for secure, airtight connections. The fan is mounted on durable rails with four anti-vibration mounts to ensure stable and quiet operation.
The forward-curved centrifugal impeller is constructed from galvanized sheet steel and dynamically balanced to DIN 1940 and VDI 2060 (class G 6.3) standards. The motor is a fully enclosed, 3‑phase squirrel cage design that is maintenance-free, fitted with sealed-for-life ball bearings, and not speed-controllable.
Ideal for hazardous industrial settings, the Helios MBD 200/4 Ex provides reliable, safe, and efficient ventilation with reduced noise and minimal maintenance requirements
