KVD315/4/60/35EX : Helios Fans KVD 315÷4÷60÷35 Ex
Helios / (KVD315/4/60/35EX)
| Code & Description | Price | |
|---|---|---|
|
KVD315/4/60/35EX : Helios Fans KVD 315/4/60/35 Ex
Note: £1,290.49 + VAT for new customers using 'WELCNFAN1' discount code!
|
£1,518.22 + VAT £1,821.86 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

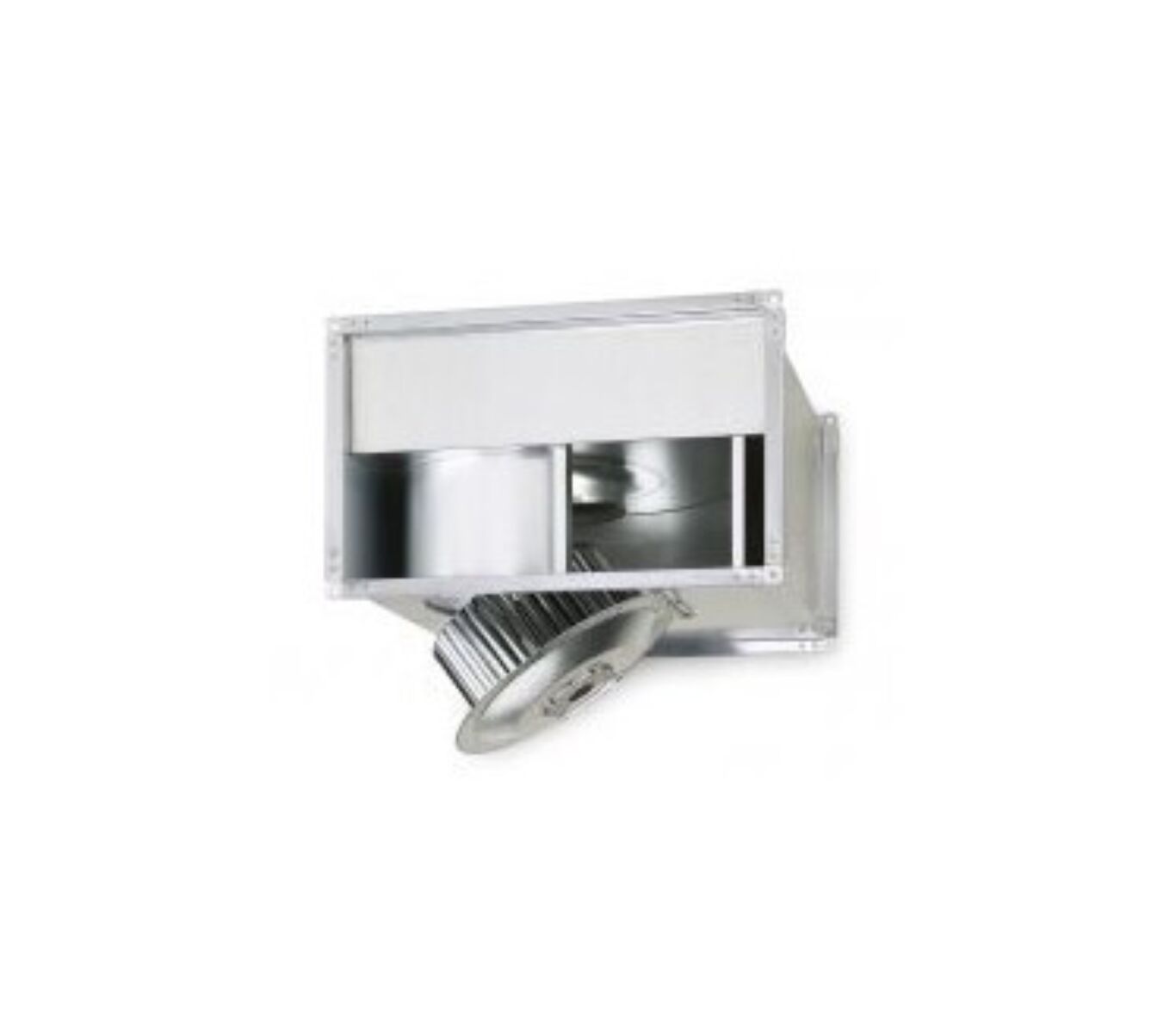

Duct centrifugal fan for direct mounting in a rectangular duct system, explosion-proof according to ATEX.
Housing made of galvanized sheet steel with standardized channel flange profiles on both sides, space-saving design, easy to service due to the swiveling motor-impeller unit.
Forward curved drum impeller made of galvanized steel, good efficiency, low noise.
Aerodynamically optimized spiral casing;Inflow via nozzle. Impeller motor unit dynamically balanced.
Drive: three-phase external rotor motor, explosion-proof according to ATEX, closed design, maintenance-free, sealed. Low-noise ball bearings with long-term lubrication, built-in PTC thermistor.
Speedcontrol is permitted when connecting the PTC thermistor to the MSA tripping device (however, the minimum voltage must not fall below 100 V).
