Helios Fans KRD EC 560÷100÷50 B
Helios
Prices & Options

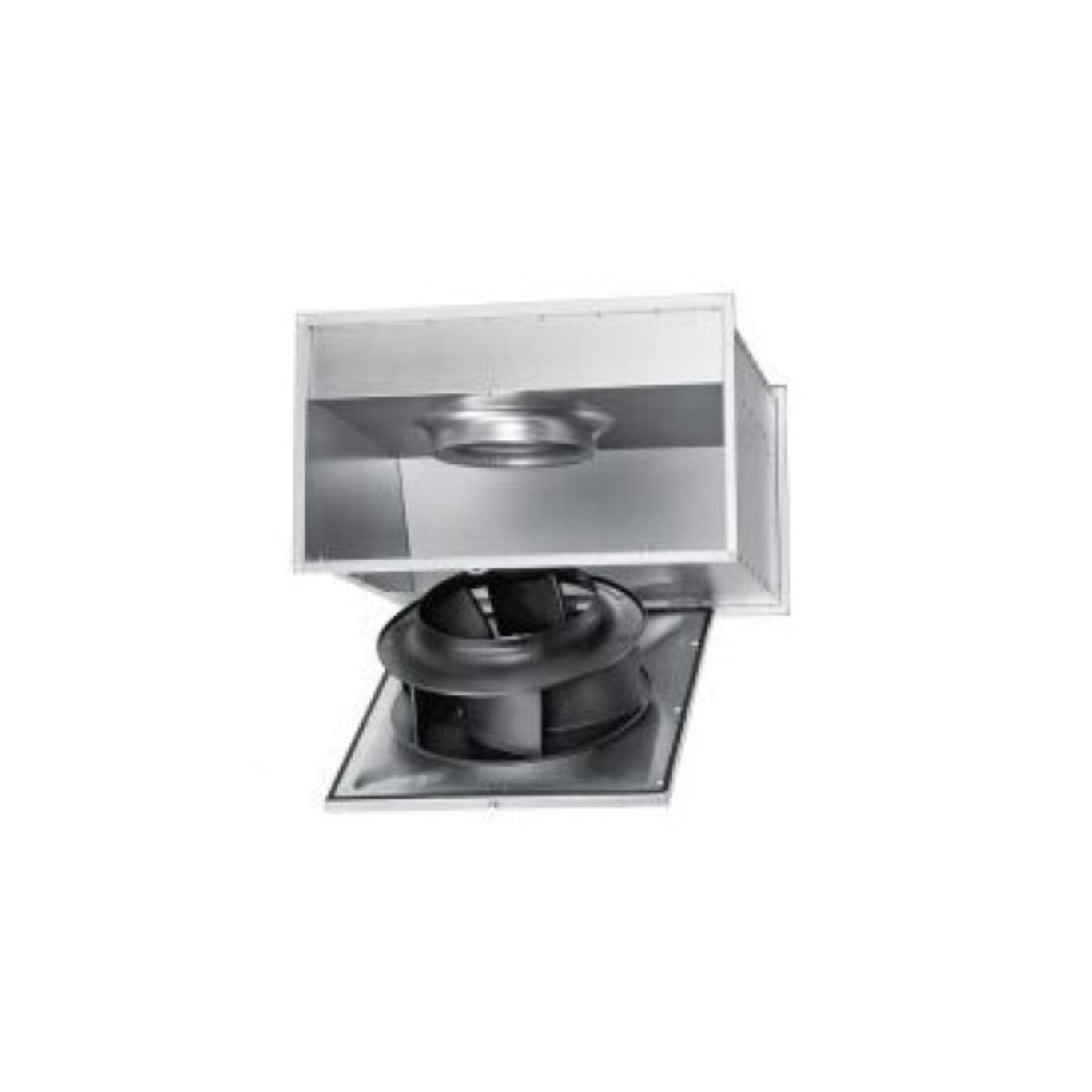

The Helios KRD EC 560÷100÷50 B is a high-performance rectangular EC centrifugal fan designed for inline installation in rectangular ductwork. Its galvanized steel housing includes flanges on both ends and features a compact, space-saving design. The swing-out motor and impeller unit allow for straightforward cleaning and maintenance.
Equipped with a backward curved centrifugal impeller made from polymer, the fan is dynamically balanced to ensure smooth, low-noise operation. An aerodynamically optimized inlet nozzle improves airflow efficiency. The energy-saving EC external rotor motor delivers high efficiency and is protected to IP54. It includes maintenance-free ball bearings, operates interference-free, and features integrated electronic temperature monitoring for added protection.
The fan allows stepless speed control via a potentiometer or the universal EUR-EC control system. Electrical connection is achieved through a standard IP54-rated terminal box with a permanently attached cable, enabling quick and secure installation.
| Code & Description | Price | |
|---|---|---|
| KRDEC560/100/50B : Helios Fans KRD EC 560/100/50 B | £3,255.00 + VAT £3,906.00 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
