Helios Fans HRFD 315/2 Ex
Helios
Prices & Options

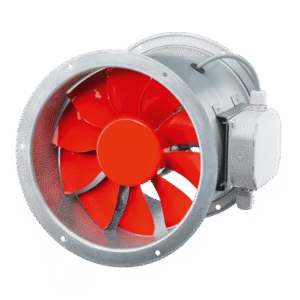

The Helios HRFD 315/2 Ex is a robust explosion-proof axial fan designed for hazardous environments, complying with ATEX regulations. It features a cylindrical duct constructed from galvanised sheet steel, equipped with flanges on both ends for easy mounting according to DIN 24155.
The fan incorporates a high-efficiency, 7‑blade profiled impeller made from impact-resistant, anti-static polymers. This impeller is dynamically balanced to DIN ISO 1940 and VDI 2060 class 6.3 standards, ensuring smooth operation and durability. It is suitable for temperatures ranging from ‑30°C to +40°C, with an electrical resistance under 1 Ohm for safety in explosive atmospheres.
Powered by a totally enclosed, maintenance-free 3‑phase squirrel cage motor with low-noise sealed-for-life ball bearings, this fan operates reliably without speed control, prioritizing safety and efficiency in hazardous applications.
| Code & Description | Price | |
|---|---|---|
| HRFD315/2EX : Helios Fans HRFD 315/2 Ex | £787.00 + VAT £944.40 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
