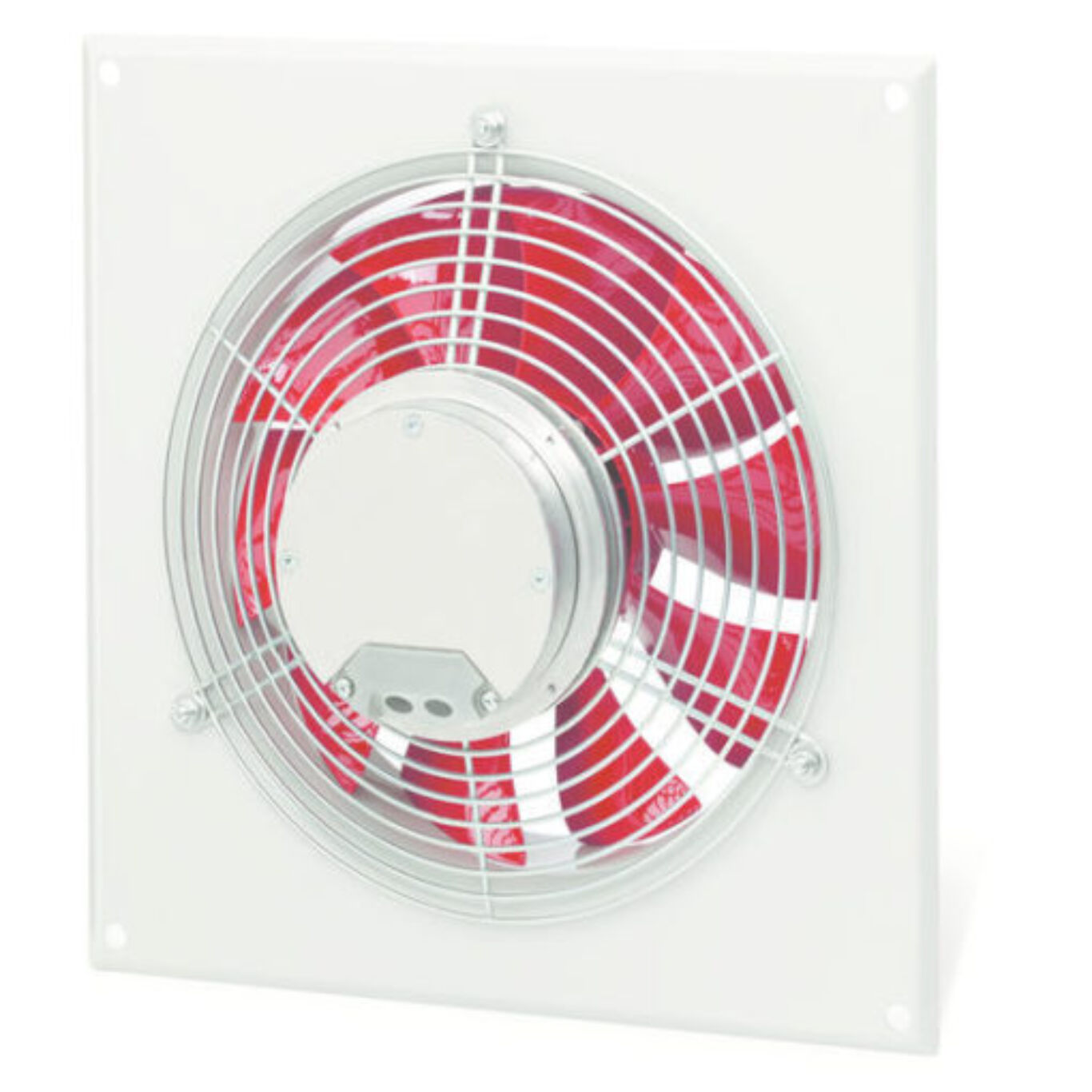

Helios Fans HQW EC 500 B
Helios
Prices & Options
EC-axial high performance fan
Square plate from galvanised sheet steel with additional protection of two coats of papyrus white paint. With powder coated motor side wire guard according to DIN EN ISO 13857.
Highly efficient, profiled blade impeller from polymers, aerodynamically optimised to the application, dynamically balanced. Suitable for ‑30 °C to +60 °C.
Energy-saving, speed-controllable EC external rotor motor in protection class IP 54 with highest efficiency. Maintenance-free and interference-free, excellent electromagnetic compatibility (EMC), ball bearing. Integrated electronic temperature monitoring for EC motor and electronics. As standard with an internal potentiometer for setting the control voltage and thus any fan speed between min. and max. speed. Continuously variable control via external speed potentiometer. Control via three-step switch or continuously variable via universal control system or electronic differential pressure/temperature controller possible.
| Code & Description | Price | |
|---|---|---|
| HQWEC500B : Helios Fans HQW EC 500 B | £2,210.00 + VAT £2,652.00 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
