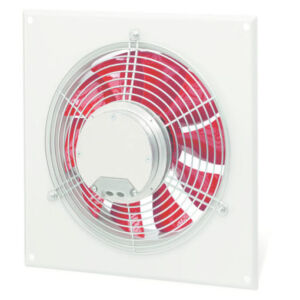

Helios Fans HQW 710/6

The Helios HQW 710/6 is a high-efficiency axial fan featuring a square plate design with a direct drive motor rated at 0.60 kW. It incorporates a square mounting plate with a drawn bell mouth inlet and duct fabricated from galvanised sheet steel, protected by two layers of paint for enhanced durability.

The fan’s seven-blade profiled impeller is made from impact-resistant polymers and is dynamically balanced to Class G 6.3 in accordance with VDI 2060 standards. It is capable of operating within a temperature range of ‑30°C to +60°C.

Equipped with a totally enclosed AC condenser motor featuring built-in thermal contacts, the fan’s speed can be regulated by reducing voltage. It has sealed-for-life, low-noise ball bearings that require no maintenance. The fan also offers reversible operation for versatile ventilation applications.
