HQW630/6 : Helios Fans HQW 630/6
Helios / (HQW630/6)
| Code & Description | Price | |
|---|---|---|
|
HQW630/6 : Helios Fans HQW 630/6
Note: £591.84 + VAT for new customers using 'WELCNFAN1' discount code!
|
£696.28 + VAT £835.54 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

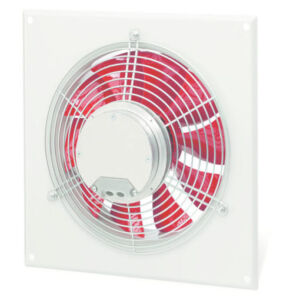

The Helios HQW 630/6 is a high-performance square plate axial fan featuring a direct drive motor rated at 0.44 kW. The fan includes a square mounting plate with a drawn bell mouth inlet and duct made from galvanised sheet steel, finished with two coats of protective paint for enhanced durability.
Its seven-blade profiled impeller is manufactured from impact-resistant polymers and dynamically balanced to Class G 6.3 according to VDI 2060 standards. The fan operates efficiently within a temperature range of ‑30°C to +60°C.
Powered by a totally enclosed AC condenser motor with integrated thermal contacts, the fan’s speed can be adjusted via voltage reduction. It is equipped with sealed-for-life, low-noise ball bearings that require no maintenance. Additionally, the fan is reversible, providing flexibility for different ventilation applications.
