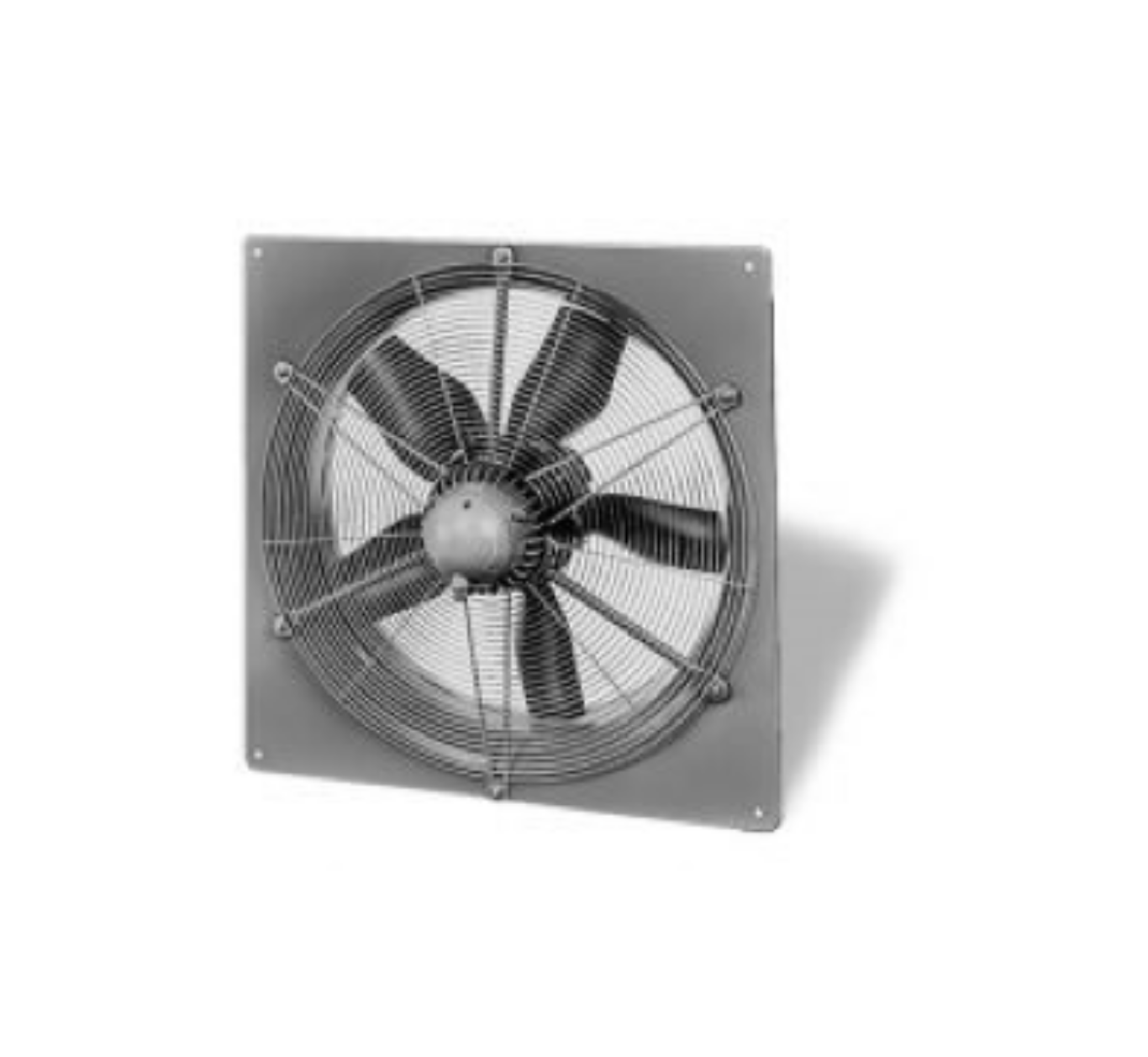

Helios Fans HQD 630/4 Ex

The Helios HQD 630/4 Ex is a medium-pressure axial fan specifically designed for hazardous environments requiring explosion protection. Featuring a 630mm galvanized steel cylindrical casing with flanges per DIN 24155 Part 3, it integrates securely into ducted ventilation systems.

Equipped with a flameproof 4‑pole motor compliant with ATEX directives, this fan provides safe operation in explosive atmospheres, such as chemical plants, paint booths, and other classified zones. The direct-drive motor ensures robust and efficient airflow with reduced rotational speed compared to 2‑pole motors, resulting in quieter operation.

The fan’s antistatic, aerodynamically optimized impeller is dynamically balanced to DIN ISO 1940 – 1 (class 6.3), minimizing vibration and maximizing durability. Additional features include sealed-for-life ball bearings, built-in thermal motor protection, and an IP54 enclosure rating, making the unit suitable for continuous use in demanding industrial settings.

The HQD 630/4 Ex supports air temperatures up to 60°C, delivering reliable performance in explosion-risk areas while maintaining high safety and operational efficiency.

For industrial ventilation systems requiring certified explosion-proof solutions, the Helios HQD 630/4 Ex offers trusted safety, durability, and airflow performance.
