HQD500/4EX : Helios Fans HQD 500/4 Ex
Helios / (HQD500/4EX)
| Code & Description | Price | |
|---|---|---|
|
HQD500/4EX : Helios Fans HQD 500/4 Ex
Note: £838.73 + VAT for new customers using 'WELCNFAN1' discount code!
|
£986.74 + VAT £1,184.09 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.

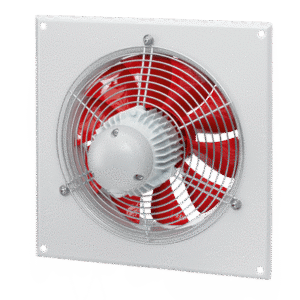

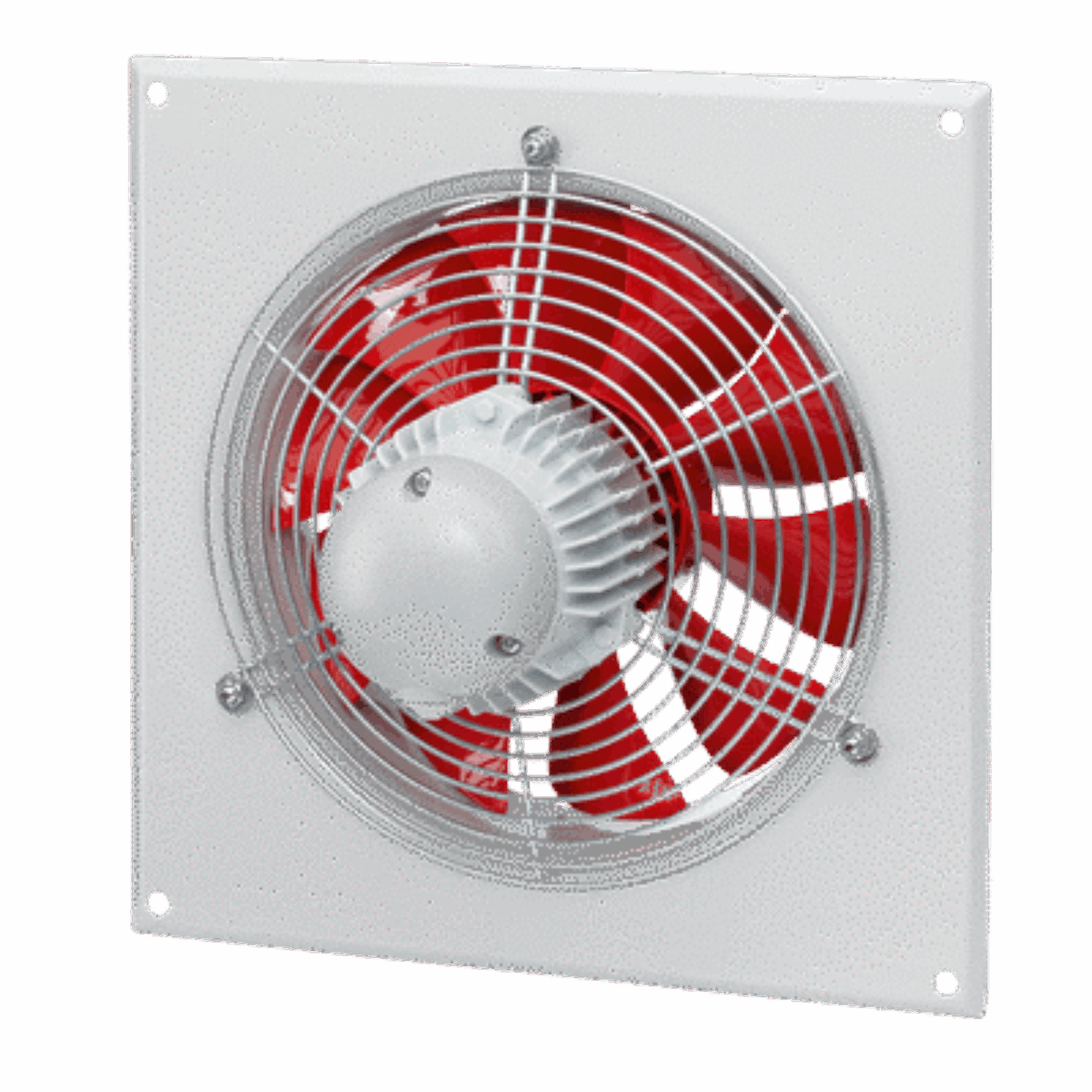

The Helios HQD 500/4 Ex is a heavy-duty, explosion-proof axial fan designed for industrial environments where ATEX compliance is essential. Built for direct drive operation, this high-efficiency model features a square mounting plate with a precision-drawn bell mouth inlet made from durable galvanized sheet steel.
Equipped with a high-performance impeller consisting of 7 profiled blades made from impact-resistant, anti-static polymer, this fan is dynamically balanced to DIN ISO 1940 and VDI 2060 (Class G 6.3) standards. It is suitable for operating in ambient temperatures ranging from ‑30°C to +40°C, with an electrical resistance of less than 1 Ohm, ensuring safe use in hazardous zones.
The fan is powered by a totally enclosed 3‑phase squirrel cage motor that is both maintenance-free and non-controllable. Sealed-for-life ball bearings contribute to quiet and long-lasting operation. The HQD 500/4 Ex provides reliable ventilation for facilities that demand strict adherence to explosion protection standards.
