Helios Fans HQD 355/4 Ex
Helios
Prices & Options

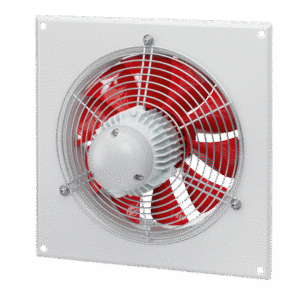

The Helios HQD 355/4 Ex is a high-efficiency axial fan built for use in hazardous areas and compliant with ATEX explosion-proof standards. It features a square mounting plate with a drawn bell mouth inlet constructed from galvanized sheet steel, providing durability and corrosion resistance.
Equipped with a 5‑blade axial impeller made from impact-resistant polymer, this fan delivers efficient airflow and is dynamically balanced to Class G 6.3 in accordance with VDI 2060 and DIN ISO 1940 standards. The impeller is suitable for temperatures between ‑30°C and +40°C and has an electrical resistance below 1 Ohm, ensuring safety in explosive atmospheres.
The fan is powered by a totally enclosed, maintenance-free 3‑phase squirrel cage motor with low-noise, sealed-for-life ball bearings. The motor is non-speed controllable and designed for explosion-proof operation, making the HQD 355/4 Ex ideal for reliable ventilation in ATEX-regulated industrial settings.
| Code & Description | Price | |
|---|---|---|
| HQD355/4EX : Helios Fans HQD 355/4 Ex | £786.00 + VAT £943.20 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
