Helios Fans HQD 355/2 Ex
Helios
Prices & Options

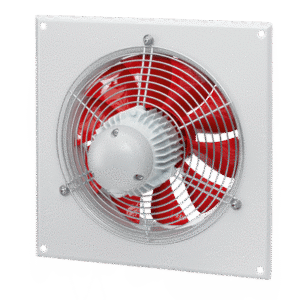

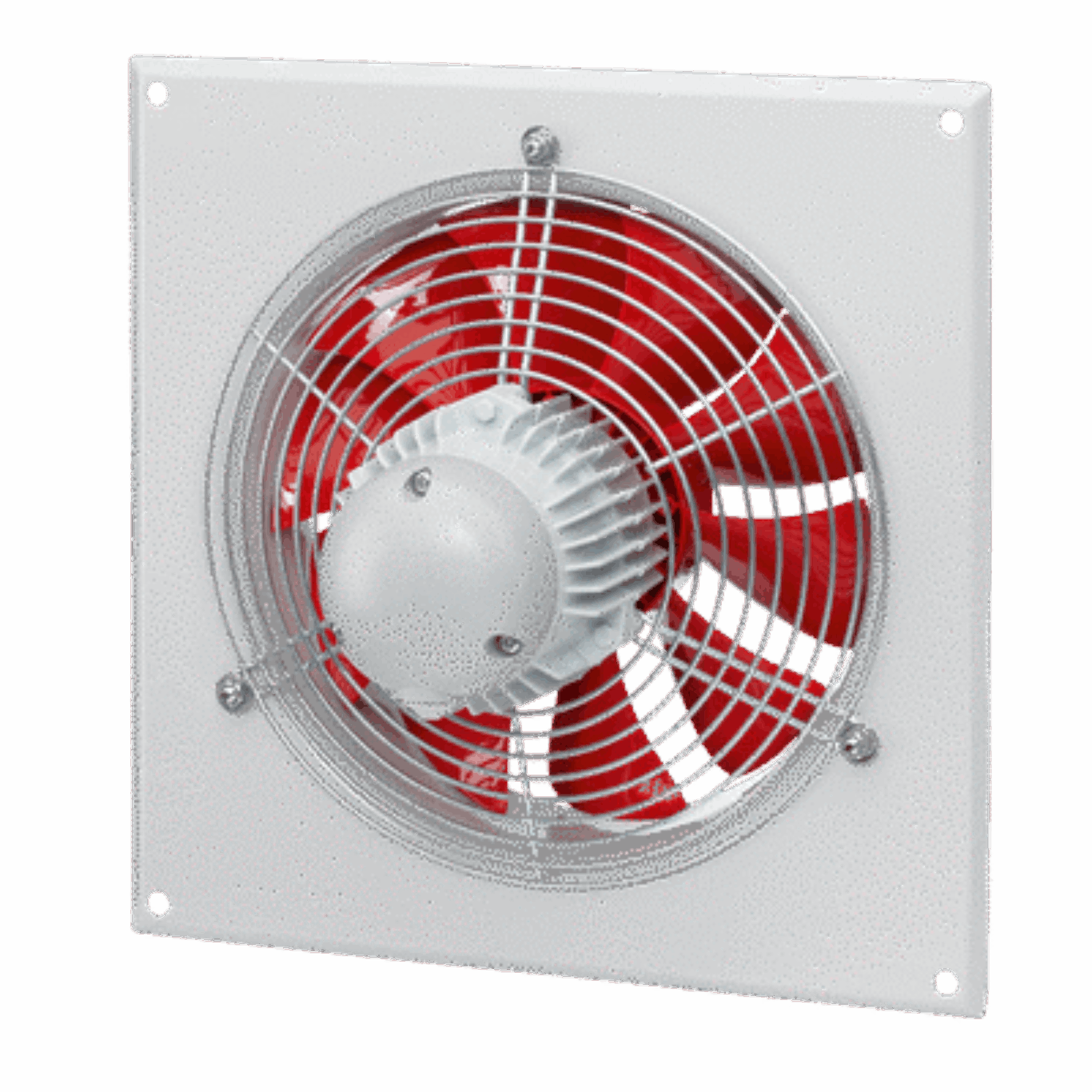

The Helios HQD 355/2 Ex is a high-efficiency axial fan engineered for use in hazardous locations, compliant with ATEX explosion-proof standards. It features a square mounting plate with a drawn bell mouth inlet, constructed from galvanized sheet steel to provide strength and resistance to corrosion.
The fan is equipped with a 7‑blade impeller made from impact-resistant, anti-static polymer materials. This impeller is dynamically balanced according to DIN ISO 1940 and VDI 2060 class 6.3 for stable and efficient operation. Suitable for temperatures between ‑30°C and +40°C, the impeller also meets safety requirements with an electrical resistance below 1 Ohm.
Power is supplied by a totally enclosed, maintenance-free 3‑phase squirrel cage motor featuring sealed-for-life, low-noise ball bearings. The motor is non-speed controllable and built to explosion-proof specifications, making the HQD 355/2 Ex ideal for reliable ventilation in ATEX-regulated industrial settings.
| Code & Description | Price | |
|---|---|---|
| HQD355/2EX : Helios Fans HQD 355/2 Ex | £826.00 + VAT £991.20 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
