Helios Fans HQD 315/6

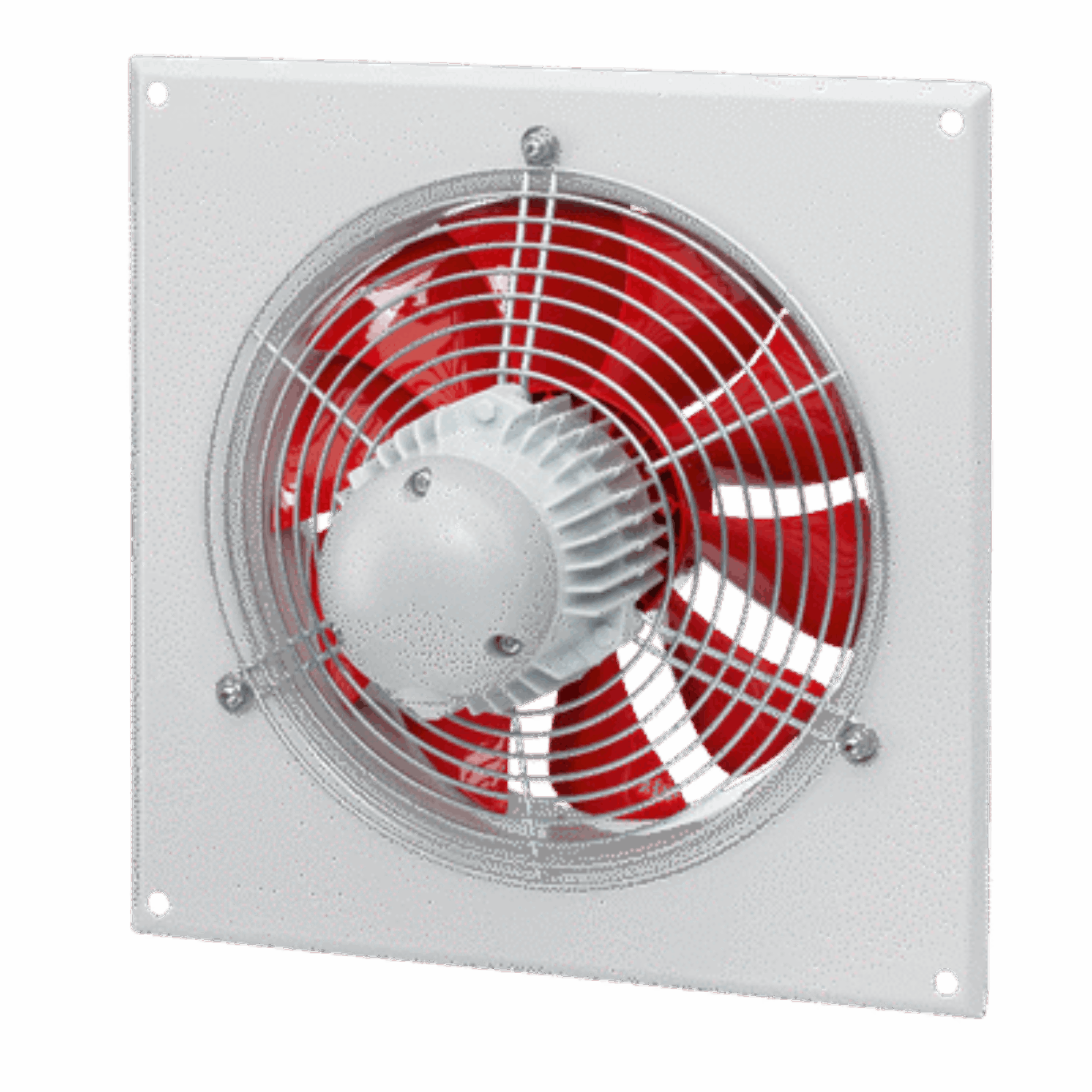

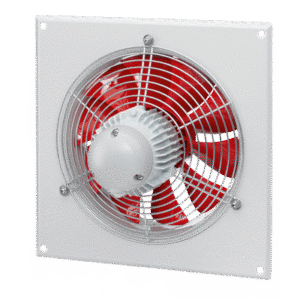

The Helios HQD 315/6 is a high-efficiency axial fan designed for industrial ventilation, featuring a square mounting plate with an integrated inlet cone to optimize airflow. The fan housing is constructed from galvanized sheet steel and finished with two layers of protective paint for enhanced durability and corrosion resistance.

It includes a 7‑blade profiled impeller made from impact-resistant polymer, aerodynamically optimized and dynamically balanced to Class G 6.3 according to VDI 2060 standards. The fan is suitable for ambient temperatures ranging from ‑30°C to +60°C.

Powered by a totally enclosed 3‑phase squirrel cage motor equipped with built-in thermal contacts for motor protection, this unit is maintenance-free and includes low-noise, sealed-for-life ball bearings. Speed control is possible via voltage reduction, offering flexible operation for various industrial applications.

Prices & Options
Code & Description Price
HQD315/6 : Helios Fans HQD 315/6 £315.00 + VAT £378.00
We accept : Visa, MasterCard, Maestro & PayPal
