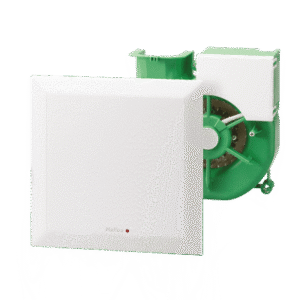

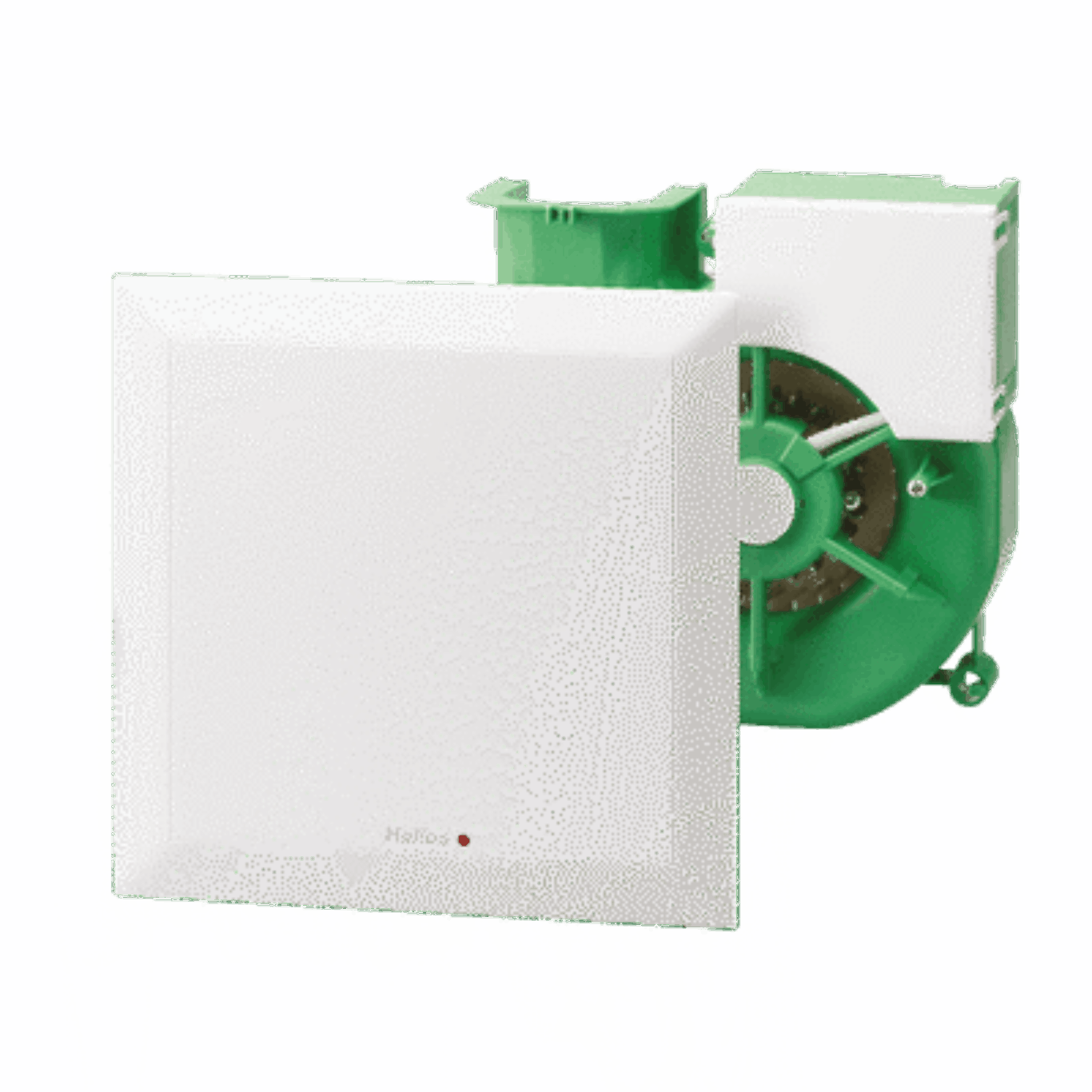

Helios Fans ELS-VP 60

The Helios ELS-VP 60 is an ultraSilence fan equipped with a built-in PIR motion sensor that automatically activates ventilation when presence is detected, eliminating the need for a manual switch. This model is designed for efficient and quiet operation, delivering an air flow volume of 60 m³/​h at a pressure reserve of 260 Pa.

Its spiral housing includes an aerodynamically and acoustically optimized radial impeller, providing high pressure and low noise levels, compliant with DIN 4109 T.2 noise control standards. The fan features an energy-saving motor housed in an enclosed aluminium cast casing, supported by maintenance-free ball bearings rated for 40,000 operation hours.

Installation is simple with tool-free fan unit insertion and a quick plug connector for electrical connection. The unit comes with a flat, elegant, white facia crafted from high-quality polymer, which has received multiple design awards. Behind the hinged facia is a permanent, dishwasher-resistant G2 class air filter, with a built-in filter change indicator for easy maintenance.

Operating on a 230 V, 50 Hz power supply with an 18 W consumption, the fan is insulated and rated IPX5 for water resistance, making it suitable for installation in zone 1 bathrooms. The noise emission is low, with a sound pressure level of 35 dB(A) measured at 10 m² equivalent absorption surface and a sound power level of 39 dB(A).

This fan provides reliable, automatic ventilation for bathrooms or similar rooms, enhancing air quality efficiently and quietly.
