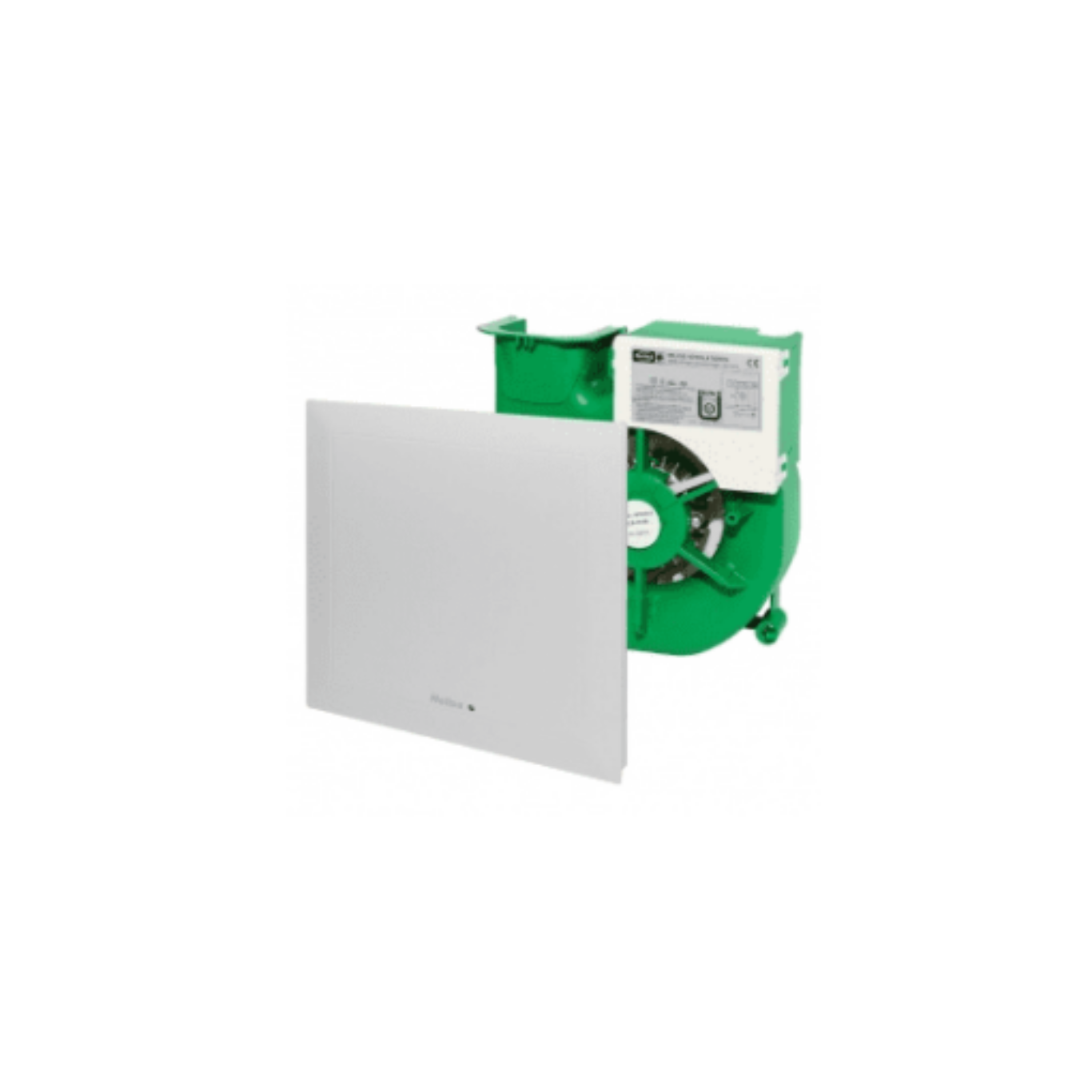

Helios Fans ELS-VN 60

The Helios ELS-VN 60 is an ultraSilence fan unit designed to deliver efficient ventilation with an airflow volume of 60 m³/​h. It features a built-in overrun timer with adjustable run-on times of 6, 15, or 21 minutes and a fixed delayed start of approximately 45 seconds, making it suitable for windowless rooms that require continued ventilation after use.

This fan unit is supplied ready to install with a flat white fascia and incorporates ultraSilence® technology for minimal noise during operation. A permanent, washable filter is included, along with a dirt filter indicator to notify users when filter cleaning is required.

Powered by a maintenance-free, energy-efficient ball bearing motor operating at 230 V, 50 Hz with a power consumption of 18 W, this fan offers durability and low energy use. The integrated quick plug connector ensures easy electrical installation. It meets protection class II standards and has an IPX5 rating, making it suitable for installation in bathroom zone 1.

Noise levels are kept low, with a sound power level of 39 dB(A) and a sound pressure level of 35 dB(A) measured with a 10 m² equivalent absorption surface, when combined with the ELS-GU casing with side discharge.

Ideal for ventilating bathrooms, showers, and toilets, the fan operates via a light switch, activating the overrun timer for effective air exchange. Installation follows wiring diagram SS-875, using NYM‑O 3×1.5 mm² electrical cable.

Compliant with DIN 18017 T.3 standards and relevant noise control regulations, the Helios ELS-VN 60 offers reliable, quiet, and energy-efficient ventilation for residential wet rooms.
