Helios Fans ELS-VN 100

The Helios ELS-VN 100 is an ultraSilence fan unit designed for efficient and quiet ventilation with a 100 m³/​h airflow capacity. It features a built-in overrun timer with adjustable run-on times of 6, 15, or 21 minutes and a fixed delayed start of approximately 45 seconds, ensuring compliance with ventilation standards for bathrooms and toilets.

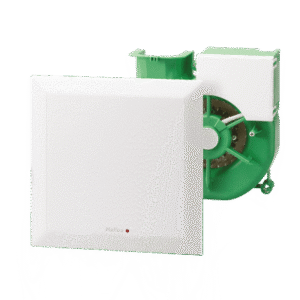

The fan is supplied complete with a flat, white fascia and incorporates ultraSilence® technology to minimize noise during operation. It comes standard with a permanent, washable filter and a dirt filter indicator to notify when cleaning is needed.

Equipped with a maintenance-free, energy-efficient ball bearing motor operating at 230 V, 50 Hz, and consuming only 29 watts, the ELS-VN 100 is engineered for durability and low energy consumption. The unit features an integrated quick plug connector for easy electrical installation and offers protection class II insulation and IPX5 hose-proof rating, making it suitable for installation in bathroom zone 1.

Noise emissions are low, with a sound power level of 51 dB(A) and a sound pressure level of 47 dB(A) measured with a 10 m² equivalent absorption surface in combination with the ELS-GU casing for side discharge. This makes the fan ideal for simultaneous ventilation of bathrooms and toilets or apartment kitchens.

Installation is straightforward with wiring following circuit diagram SS-876 and power supplied via a NYM‑O 3×1.5 mm² cable. The ELS-VN 100 complies with relevant DIN standards, including DIN 18017 T.3 and noise control regulations, providing reliable and quiet ventilation for residential spaces.
