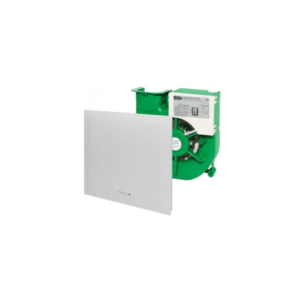

The Helios ELS-VF 60 is a high-performance ultraSilence fan unit designed for efficient and quiet ventilation in bathrooms and wet rooms. It features a built-in electronic dynamic humidity sensor that automatically controls ventilation based on humidity levels, helping to maintain a comfortable and dry environment.
This fan delivers a steady airflow volume of 60 m³/h with a high pressure reserve of 260 Pa, supported by an aerodynamically and acoustically optimized radial impeller housed in a spiral casing. The unit operates with minimal noise, adhering to noise control standards DIN 4109 T.2, providing sound pressure levels as low as 35 dB(A) with a sound power level of 39 dB(A).
Installation is straightforward with tool-free fan unit insertion and an integrated quick plug connector for electrical connection. The motor is housed in a closed cast aluminum casing and uses maintenance-free ball bearings rated for 40,000 operating hours, ensuring long-lasting, energy-efficient performance at 18 W power consumption.
The fan’s design includes a flat, elegant, and award-winning white polymer fascia that fits seamlessly into modern interiors. A class G2 permanent air filter, which is dishwasher-safe, is positioned behind the hinged fascia to maintain clean airflow. A built-in filter change indicator alerts users when cleaning is necessary.
Control options include the automatic humidity sensor, manual operation via a standard On/Off switch (parallel to the room light), an overrun timer of approximately 6 minutes, and a delayed start of about 45 seconds. The automatic humidity control can also be disabled with an additional switch, which requires a 4×1.5 mm² electrical supply cable.
The ELS-VF 60 fan unit is rated IPX5 for hose-proof protection and fully insulated (Class II), making it safe for installation in bathroom zone 1. This combination of smart humidity control, quiet operation, and durable construction makes the Helios ELS-VF 60 an ideal ventilation solution for maintaining healthy indoor air quality in wet rooms.
