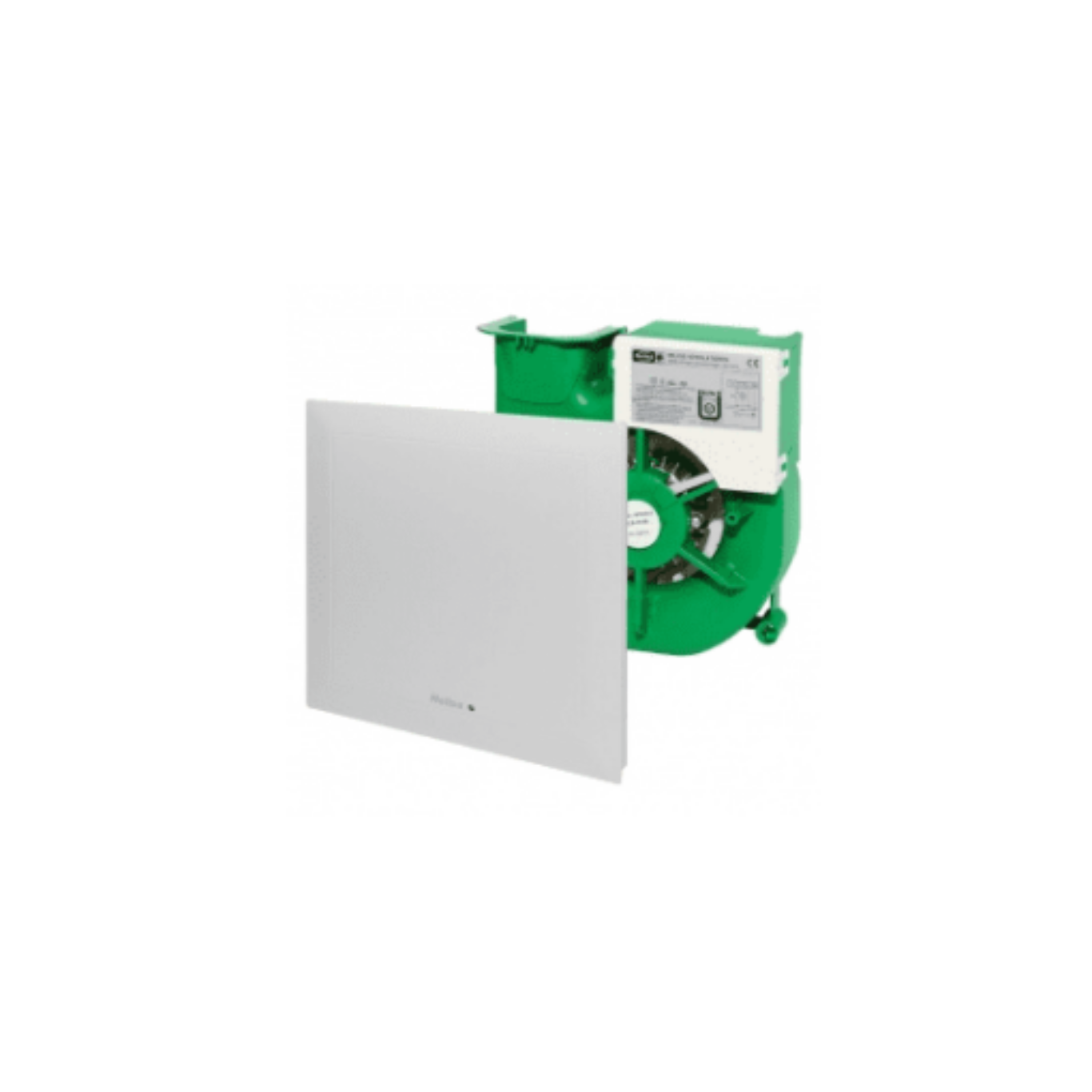

Helios Fans ELS-VF 100÷60÷35

The Helios ELS-VF 100÷60÷35 is a sophisticated ultraSilence fan unit designed for effective ventilation in bathrooms and wet rooms, offering three speed levels (100, 60, and 35 m³/​h) for both trickle and boost ventilation. Equipped with a built-in electronic dynamic humidity sensor, this fan automatically activates when the humidity exceeds the set point and switches off after humidity decreases by approximately 10%, ensuring optimal air quality and prevention of humidity damage.

For manual operation, the fan features adjustable start delays (0 or 45 seconds) and selectable run-on times of 6, 10, 15, or 21 minutes. Continuous operation is possible at the small or medium speed using the DSEL 2 switch accessory, while manual three-step speed control is available through the DSEL 3 switch.

The unit comes complete with a flat white fascia and utilizes Helios’s renowned ultraSilence technology to deliver quiet performance. It includes a permanent washable air filter with a dirt filter indicator to signal when cleaning is required, maintaining clean airflow and protecting internal components.

Installation is made easy with an integrated quick plug connector for electrical connection. The fan is fully insulated (class II) and rated to IP55, providing excellent protection against water ingress and suitable for installation in bathroom zone 1.

Powered by a maintenance-free, energy-saving ball-bearing motor running at 230 V, 50 Hz, the unit consumes 29 W, 18 W, and 9 W at high, medium, and low speeds respectively. Sound pressure levels range from 47 dB(A) to 26 dB(A), measured with a 10 m² equivalent absorption surface alongside the ELS-GU casing with lateral discharge.

Designed to meet strict DIN standards (DIN 18017 T.3, DIN 24163, DIN 24166, DIN 45635, DIN 44974), the Helios ELS-VF 100÷60÷35 offers reliable, quiet, and energy-efficient ventilation with smart humidity control, ideal for maintaining fresh and dry indoor environments.
