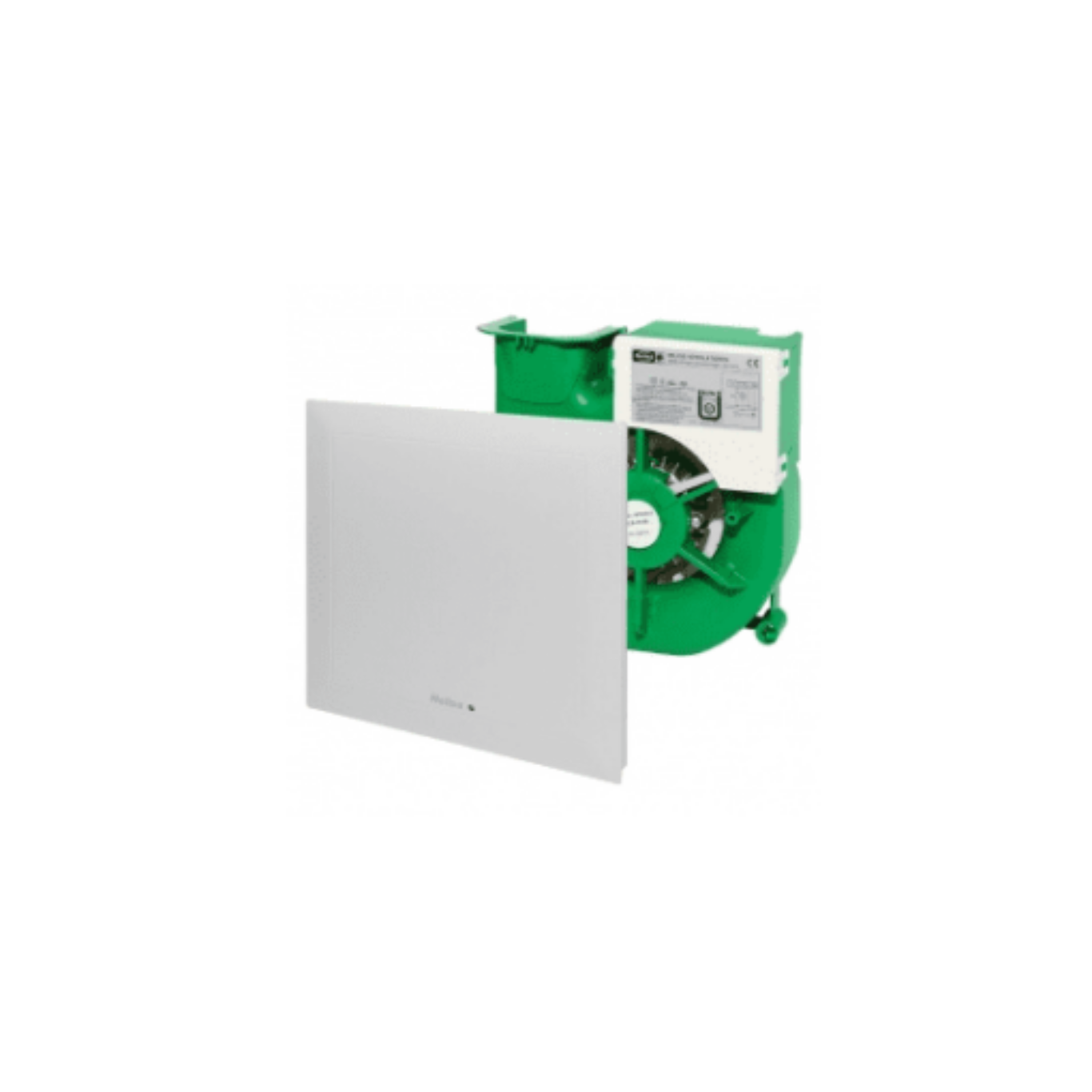

Helios Fans ELS‑V 60/35

The Helios ELS‑V 60/35 is a high-performance fan unit designed for general and trickle ventilation with two selectable speeds of 60 m³/​h and 35 m³/​h airflow volumes. Engineered with ultraSilence technology, it delivers quiet operation while maintaining a high-pressure reserve thanks to its aerodynamically and acoustically optimized radial impeller housed in a spiral casing.

Installation is tool-free with an integrated quick plug connector for simultaneous electrical connection. The energy-saving motor is housed in a durable cast aluminum enclosure and features maintenance-free ball bearings rated for up to 40,000 operating hours, ensuring long-lasting performance.

The unit sports a flat, elegant, alpine white fascia made of high-quality polymer, which has earned multiple design awards. Behind the hinged compact fascia is a dishwasher-resistant permanent air filter (class G2), with an integrated filter change indicator that alerts when cleaning is necessary.

Control options allow the lower speed to be wired for continuous operation, while the higher speed can be manually controlled alongside the room light via a standard two-pole ON/OFF switch. Optional manual control for both speeds is available through the DSEL 2 switch accessory.

This fan unit is fully insulated, rated IP X5 for water resistance, and is suitable for installation in bathroom zone 1. Electrical specifications include 230 V, 50 Hz power supply, consuming 18 W at high speed and 9 W at low speed, with wiring via NYM‑O 3×1.5 mm² cable.

Quiet, efficient, and user-friendly, the Helios ELS‑V 60/35 is an excellent ventilation solution for residential bathrooms and wet rooms.
